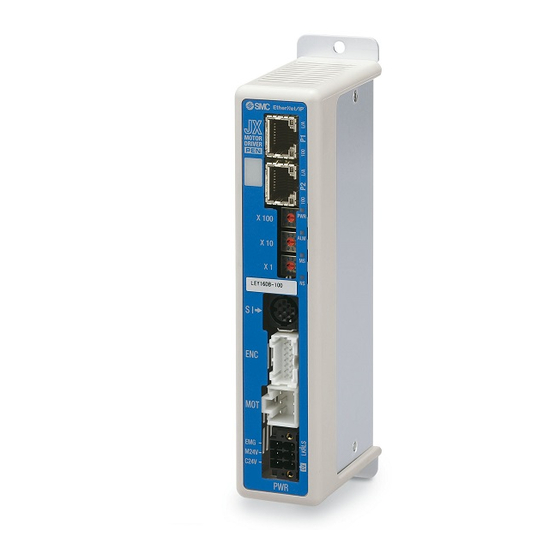

Step Motor Controller
EtherNet/IP™ compatible
10/100 Mbps high-speed communication
Dual port connection
Transition wiring of communication cable
PLC
EtherNet/IP™
Recovery is possible during a
disconnection of the device level
ring (DLR)!
In the device level ring type, even though the
communication cable is disconnected in one
location, EtherNet/IP™ communication can be
continued, and the disconnected portion can be
specified by the ring supervisor.

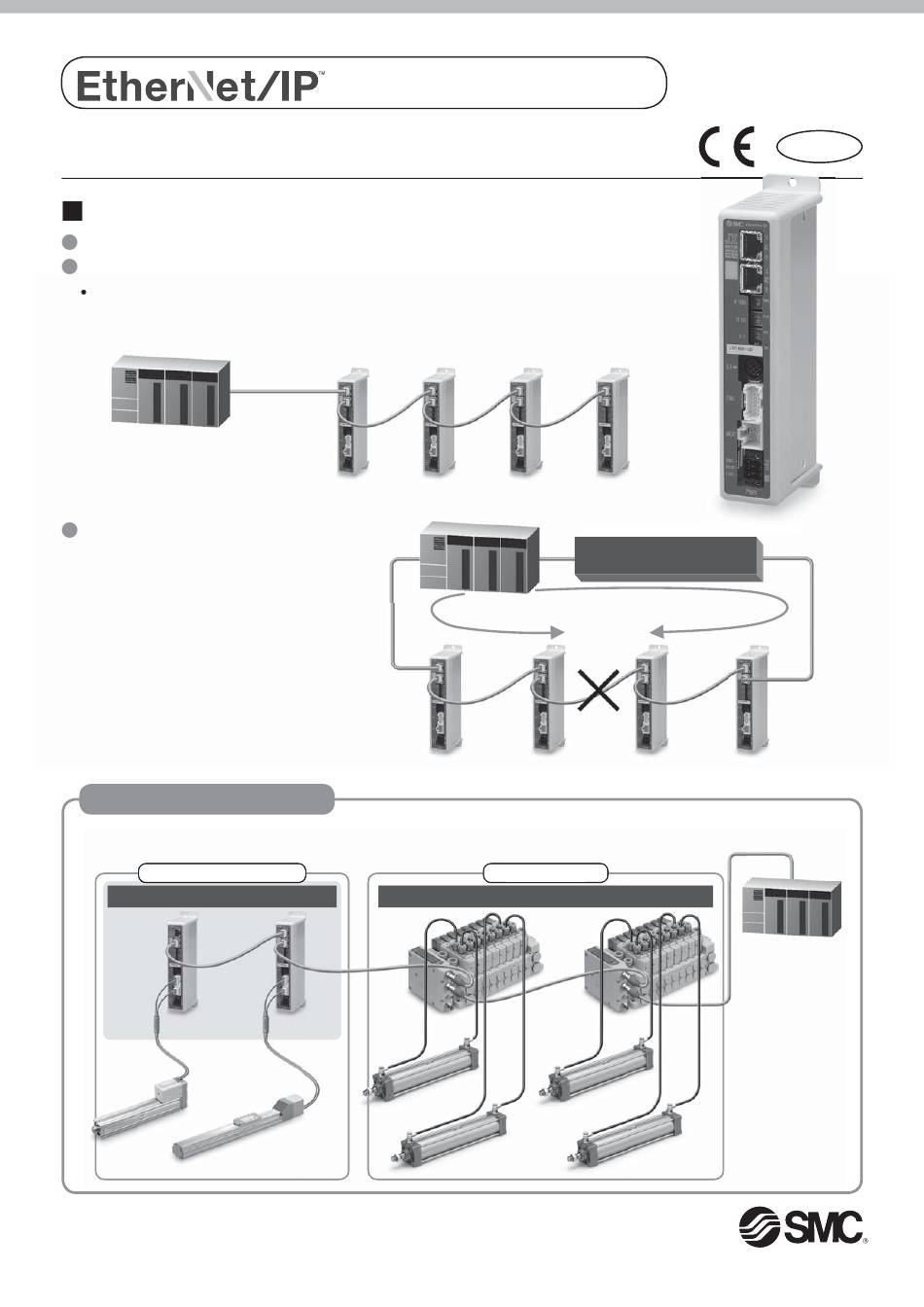

Application Example
Air and electric system configurations
Electric Actuator
Electric Actuator
EtherNet/IP™ direct input type
JXC91
Series
Direct Input Type
PLC
JXC91q
<Data flow when the communication cable is disconnected>
Fieldbus network (EtherNet/IP™)
Air Cylinder
Air Cylinder
EX260 (EtherNet/IP™)
EX260 (EtherNet/IP™)
INFORMATION
∗ One or more ring supervisors are required.
rvisors are required
Ring supervisor
Disconnected
location
JXC91w
JXC91e
RoHS
JXC91r
PLC
14-EU642-UK

Advertisement

loading
Need help?

Need help?

Do you have a question about the EtherNet/IP JXC91 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks EtherNet/IP JXC91 Series

Summary of Contents for SMC Networks EtherNet/IP JXC91 Series

  • Page 1 INFORMATION Direct Input Type Step Motor Controller RoHS EtherNet/IP™ compatible 10/100 Mbps high-speed communication Dual port connection Transition wiring of communication cable EtherNet/IP™ ∗ One or more ring supervisors are required. Recovery is possible during a rvisors are required disconnection of the device level Ring supervisor ring (DLR)! In the device level ring type, even though the...
  • Page 2 JXC91 Series System Construction Electric actuators Provided by customer Series EtherNet/IP™ direct input type Series JXC91 LES/LESH Series Series Series LEPY/LEPS Series Series Series Option Conversion cable Page Actuator cable P5742-69 Standard cable Robotic cable To SI (0.3 m) To ENC This conversion cable is used LE-CP- -S LE-CP-...
  • Page 3 Direct Input Type Step Motor Controller JXC91 Series How to Order Actuator + LEFS16B-100 Controller Actuator type Mounting Refer to “How to Order” in each actuator catalogue Screw mounting available at www.smc.eu. Note) DIN rail mounting For compatible actuators, refer to the table below. Example: LEFS16B-100B-R1C917 Note) DIN rail is not included.

  • Page 4: Specifications

    JXC91 Series Specifi cations JXC91 Model Compatible motor Step motor (Servo/24 V DC) Power supply Power voltage: 24 V DC±10 % Current consumption 130 mA or less (Controller) Compatible encoder Incremental A/B phase (800 pulse/rotation) Protocol EtherNet/IP™ Communication speed 10/100 Mbps (Auto negotiation) Communication method Full duplex/Half duplex (Auto negotiation) Note)

  • Page 5: Wiring Example

    Step Motor Controller JXC91 Series (EtherNet/IP™ Direct Input Type) Dimensions (11.5) Ø 4.5 32.5 For body mounting (Screw mounting) ∗ Mountable on DIN rail (35 mm) DIN rail mounting adapter (77) 17.5 For body mounting (Screw mounting) DIN rail 12.5 5.25 AXT100-DR- (Pitch)

  • Page 6: Controller And Peripheral Devices/Specifi C Product Precautions

    JXC91 Series Controller and Peripheral Devices/ Specifi c Product Precautions 1 Be sure to read this before handling. For Safety Instructions and Electric Actuator Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on the SMC website, http://www.smc.eu Design/Selection Handling Warning...
  • Page 7 JXC91 Series Controller and Peripheral Devices/ Specifi c Product Precautions 2 Be sure to read this before handling. For Safety Instructions and Electric Actuator Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on the SMC website, http://www.smc.eu Mounting Wiring Warning...
  • Page 8 SMC Corporation (Europe) Austria +43 (0)2262622800 www.smc.at office@smc.at Lithuania +370 5 2308118 www.smclt.lt info@smclt.lt Belgium +32 (0)33551464 www.smcpneumatics.be info@smcpneumatics.be Netherlands +31 (0)205318888 www.smcpneumatics.nl info@smcpneumatics.nl Bulgaria +359 (0)2807670 www.smc.bg office@smc.bg Norway +47 67129020 www.smc-norge.no post@smc-norge.no Croatia +385 (0)13707288 www.smc.hr office@smc.hr Poland +48 222119600 www.smc.pl office@smc.pl...
