PneuAlpha2 Simple Application

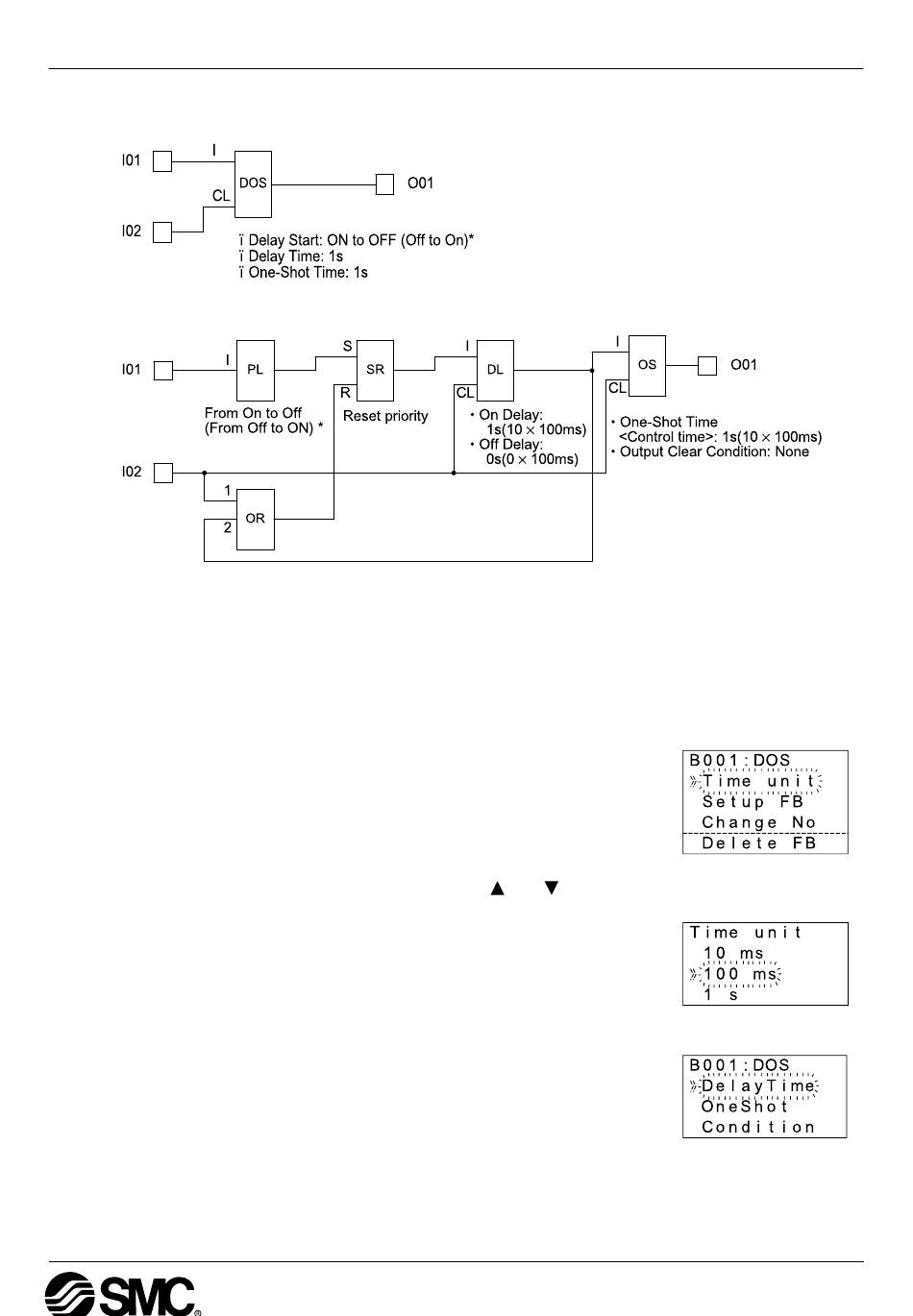

3 ) Delayed One Shot sample program
4 ) Delayed One Shot comparison sample program
Setup of the Delayed One Shot Function Block directly from the
Controller
1 ) Allocate the input pin to be used for the function block.
2 ) Press the "OK" key with the cursor in the function block. The function block edit screen is
displayed as shown.
3 ) Press the "OK" key to set the Time unit for the random delayed output. Choose either a
10ms, 100ms or 1s time interval using the "
the "OK" key when ready.
4 ) Return to the function block edit screen. Using the "Up and Down" keys to highlight the
Setup FB and press the "OK" key.
and
" keys to highlight the option and press
Function Blocks 6
