PneuAlpha2 Simple Application

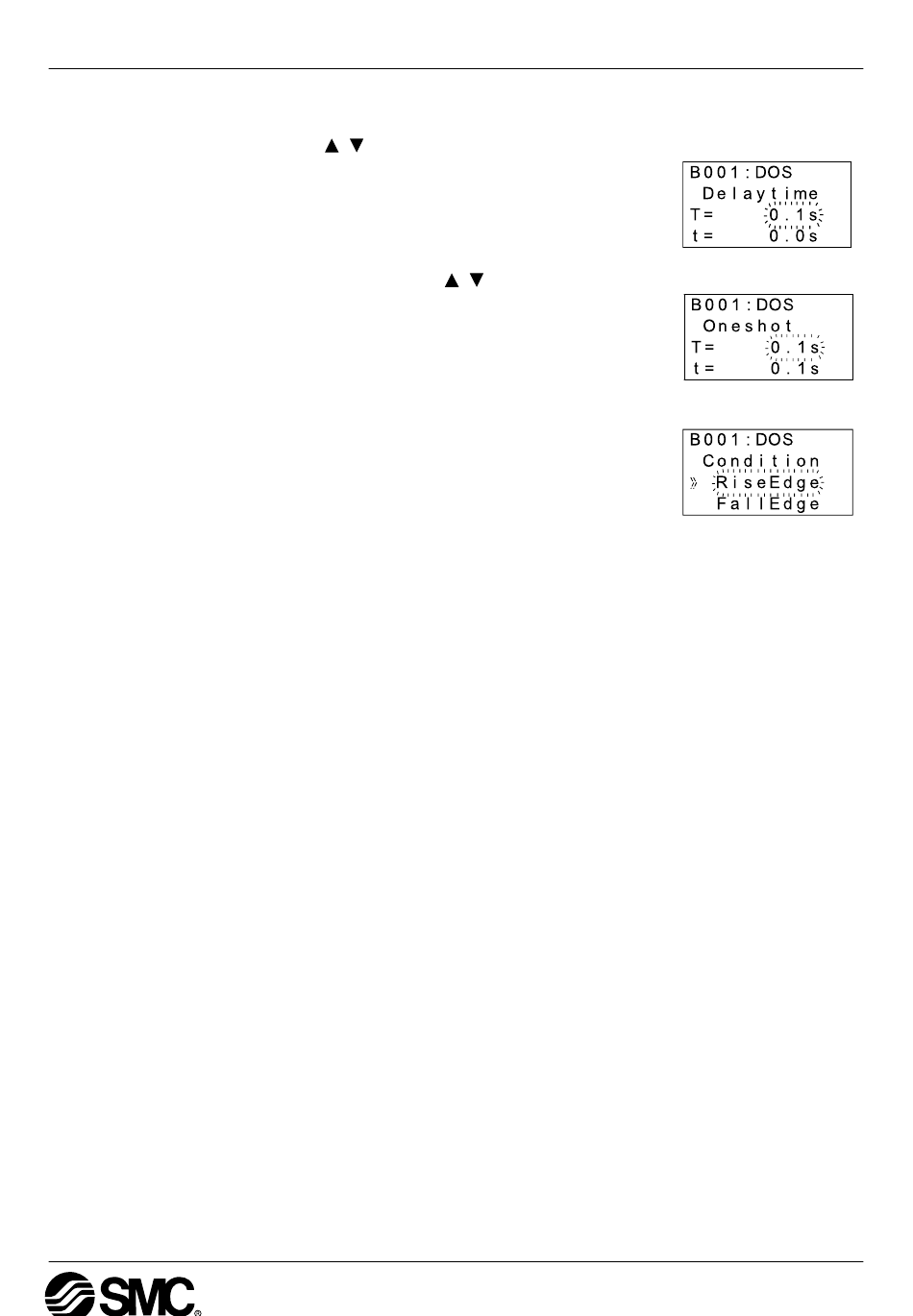

5 ) Highlight DelayTime from the list of options and press the "OK" key. The Delay Time can

be entered using the " ,

6 ) Highlight OneShot from the list of options and press the "OK" key to enter times. The One

Shot Time can be entered using the " ,

7 ) Highlight Condition from the list of options and press the "OK" key to enter either a

RiseEdge or a FallEdge for the Delayed One Shot Operation.

8 ) Press the "OK" key to accept and use the "ESC" key to return to the FBd.

, + and -" keys.

Function Blocks 6

6 - 74
