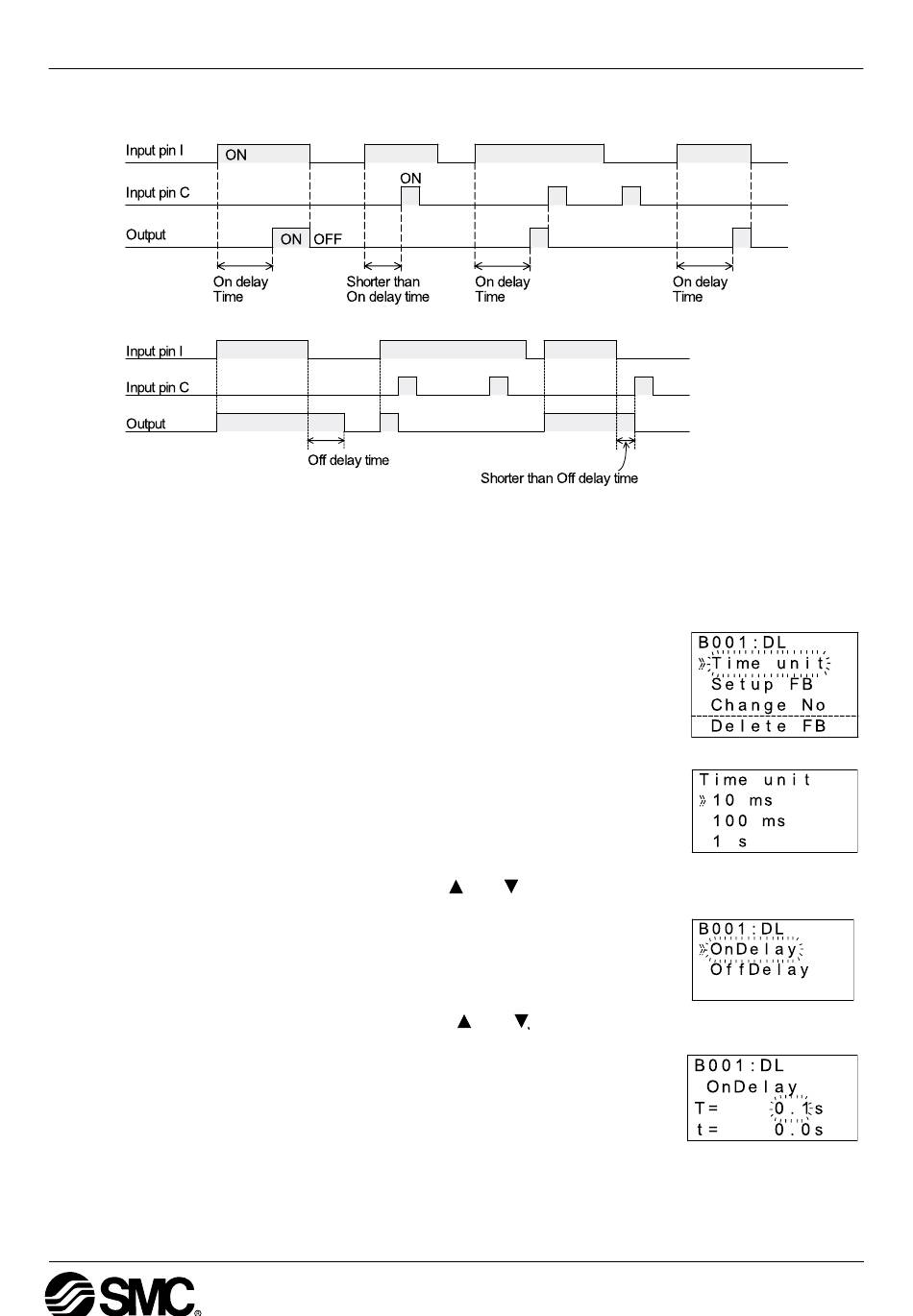

PneuAlpha2 Simple Application

2 ) ON delay timer

3 ) OFF delay timer

Setup of the Delay Function Block directly from the

1 ) Allocate the input pin to be used for the function block.

2 ) Press the "OK" key with the cursor in the function block. The function block edit screen is

displayed as shown.

3 ) Press the "OK" key to set the Time unit for the delayed output.

4 ) Press the "OK" key having selected the value for the delayed time unit and return to the

function block edit screen. Using the "

"OK" key. The screen displayed is shown.

5 ) Select the On or Off Delay using the "

time can be entered using the "+" or "-" keys.

6 ) Press the "OK" key to accept the time ﬁgures and subsequently press the "ESC" key to

return to the function block edit screen.

PneuAlpha2 Series Controller

and

" keys highlight the Setup FB and press the

and

" Keys and press the "OK" key. The Delay

Function Blocks 6
