Document No.: JXC※-OMU0012
Product Name
Controller Setting Kit
Installation Manual (For Windows® 8.1)
Model/Series
LEC-W2
JXC-W2

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEC-W2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMC Networks LEC-W2

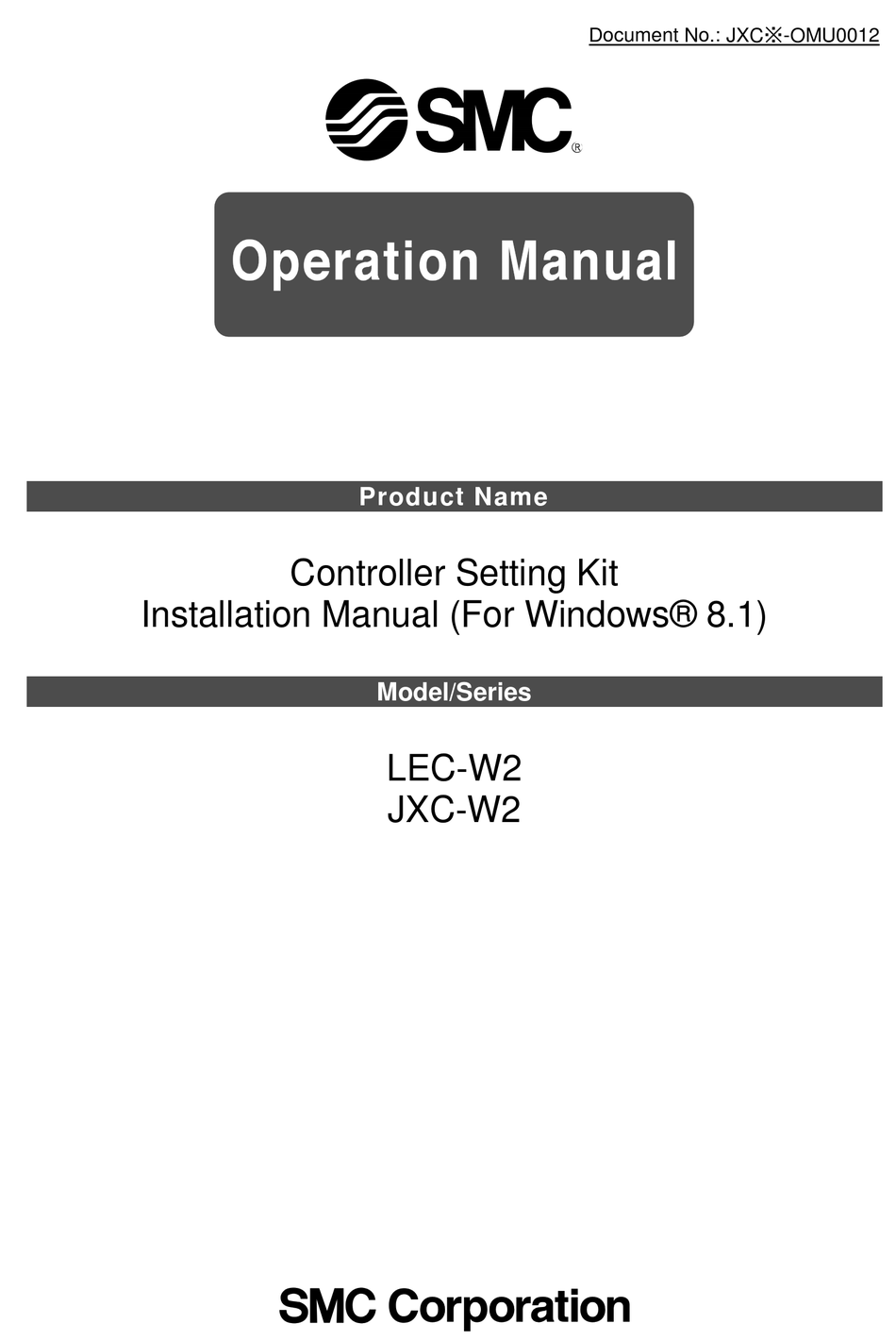

  • Page 1 Document No.: JXC※-OMU0012 Product Name Controller Setting Kit Installation Manual (For Windows® 8.1) Model/Series LEC-W2 JXC-W2...

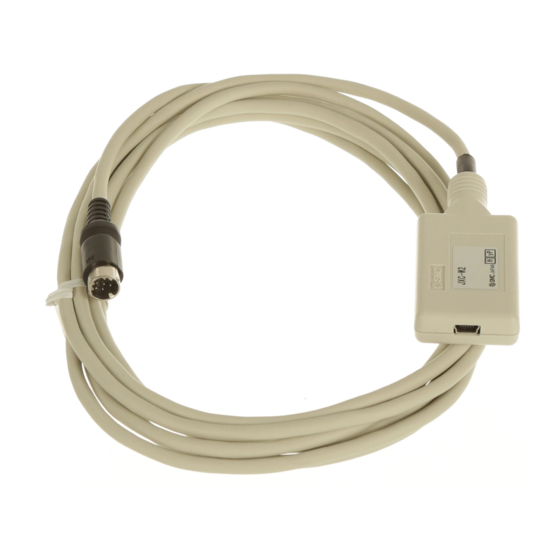

  • Page 2 - Download USB driver in advance and decompress it to a retrievable location, such as the desktop, on the PC. 0.2 Preparation of USB Cable Prepare a communication cable LEC-W2-C, and an USB cable (A-miniB) LEC-W2-U for LEC-W2. Prepare a communication cable JXC-W2-C, and an USB cable (A-miniB) JXC-W2-U for JXC-W2. 1. Installation 1.1 Installation of the Communication Unit Driver...
  • Page 3 (3) "SMC Serial Converter" has been added to the "Other device". Right-click the "SMC Serial Converter", and select the "Update Driver Software". * The "Update Driver Software" may not be displayed when the automatic retrieval processing is executed. Please try again after waiting a few minutes. (4) Click the "...
  • Page 4 (5) Click the "Browse", and select the folder where the USB driver was stored. Check the "Include subfolders". Click the "Next". (6) The following confirmation screen is displayed. Select the "Install". (This screen may not be displayed if the SMC USB driver was already installed on the PC.)
  • Page 5 (7) The following display appears when installation is completed. Click the "Close". (8) Display the "Device Manager" again. Confirm that the "SMC Serial Converter" (Part A in the lower figure) was added to the "Universal Serial Bus controllers". Then, right-click the "USB Serial Port" (Part B in the lower figure) in the "Other devices", and select the "Update Driver Software".
  • Page 6 1.2 Installing the Setting Software (ACT Controller) Start up \ACT Controller\JP(Ver1200)\Setup.exe. Installation process starts. Install the software according to the instructions displayed on the screen. The "ACT Controller Menu" is displayed on the desktop when the installation is completed. Click the icon to start the software.
  • Page 7 The COM No. is shown next to the "SMC Serial Port" in the "Ports (COM&LPT)". (In the case of the lower figure, the COM No. is "3".) The COM No. will change depending on the USB port where the communication cable is currently connected to.
  • Page 8 3. Start Menu An ACT Controller Menu icon is displayed on the desktop after installing the software. Double click the icon to display the menu shown below. Click the "Normal Mode" or "Easy Mode". 4. Communication Setting When activating the "Normal mode" or "Easy mode", the software recognizes the connected controller automatically.
  • Page 9 * The controller is not recognized if "Offline" is displayed in the red frame on the screen after starting the "Normal mode" as shown in the figure below. Check the communication port setting, wiring, power supply to the controller, etc. When the controller is recognized correctly, indication other than "Offline"...
  • Page 10 Revision history No.JXC※-OMU0012 December/2016 1st printing 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
