External - Low Level / High Level; Rise Edge / Fall Edge / Either Edge; Gate Delay - BIRD BirdTechnologies SignalHawk SH-36S Operating Instructions Manual

External - Low Level / High Level /

Rise Edge / Fall Edge / Either Edge


Low Level - Triggers if input = 0 ± 0.5 V (TTL "Low").

High Level - Triggers if input = 4.2 ± 0.8 V (TTL "High").

Rise Edge - Triggers if the input goes from "Low" to "High".

Fall Edge - Triggers if the input goes from "High" to "Low".

Either Edge - Triggers if the input goes from either "High" to "Low" OR
"Low" to "High".

Gate Delay

Length of wait after the trigger signal and before beginning a sweep. The range
is 100 μs to 1 s.

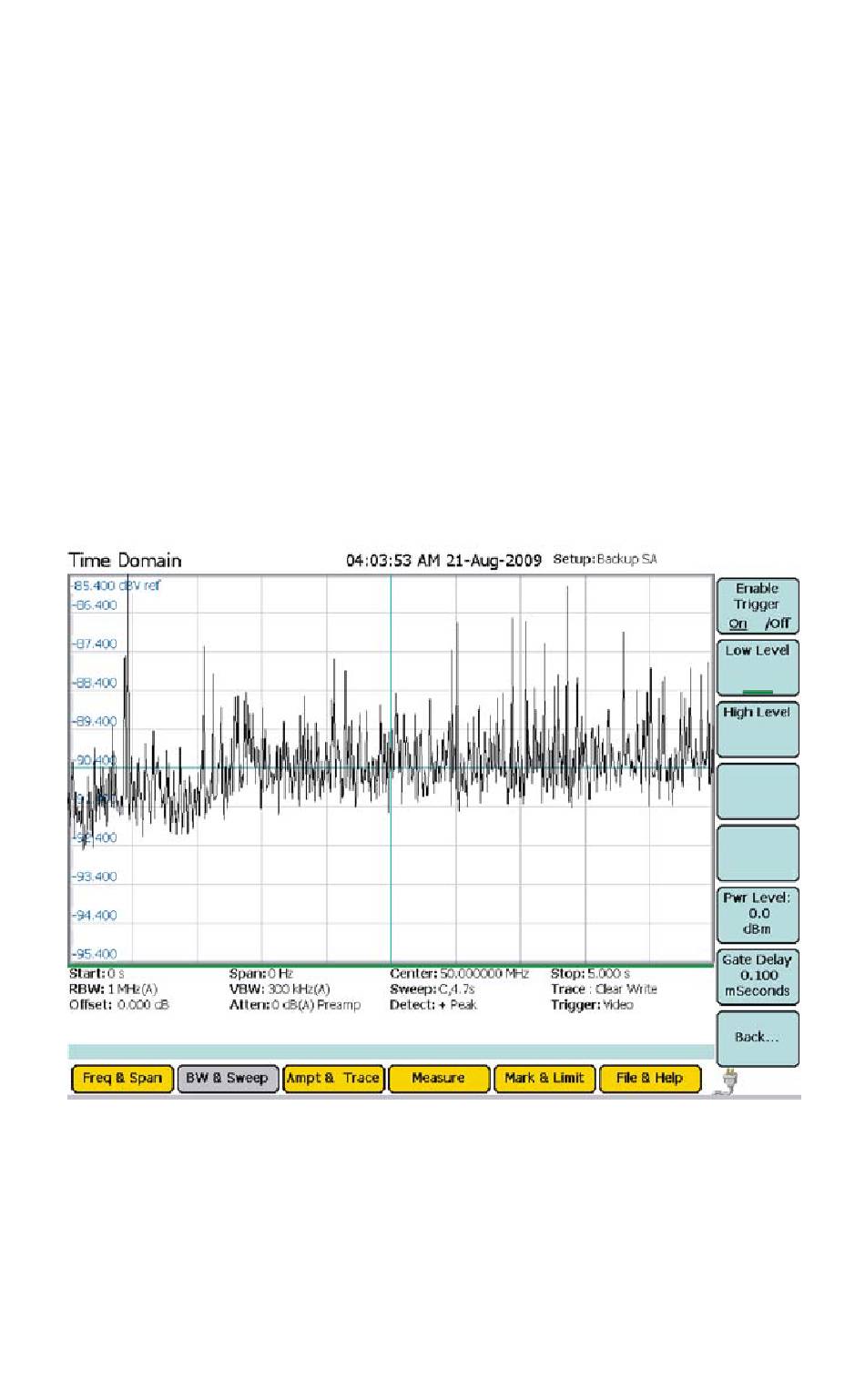

Figure 55 Example, Video
69
