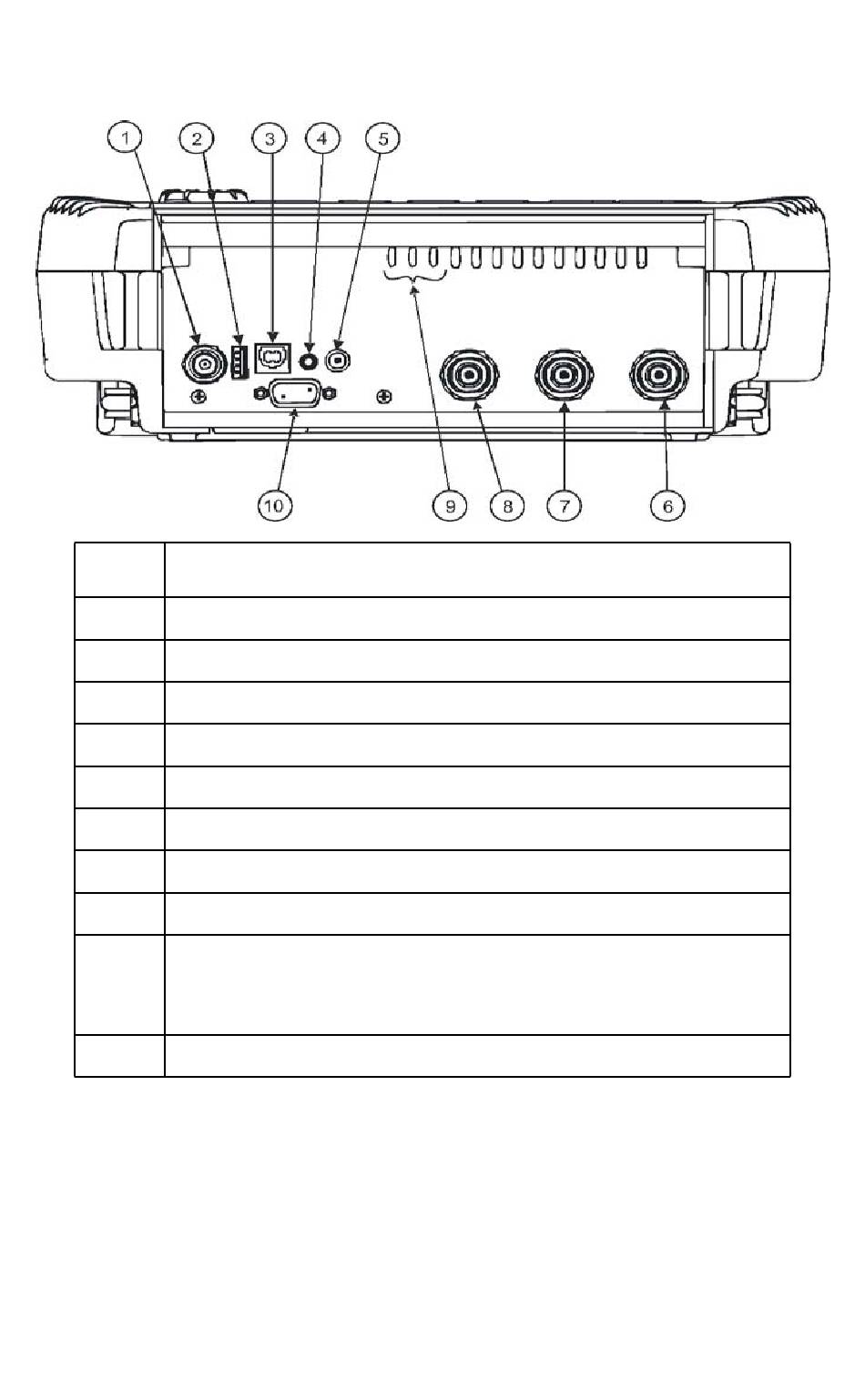

Figure 3
Connector Panel - SH-362S
Item
1
BNC(F) external trigger input, 5V TTL
2
USB Type A for USB drive and accessories
3
USB Type B for PC connection
4
3.5mm mini-headphone jack
5
2.5mm DC jack for external power supplies
6
VNA Thru Port
7
VNA Test Port
8
Spectrum Analyzer Port, N(F) RF input, +20 dBm max.
9
Internal Speaker and air inlet ports. There is also an air
exhaust on the back of the unit.
10
RS-232 DB-9(F) connector for power sensors.
4
Do not block the inlet or exhaust.
Note:
