Manage Image Files

Launches the image file manager.

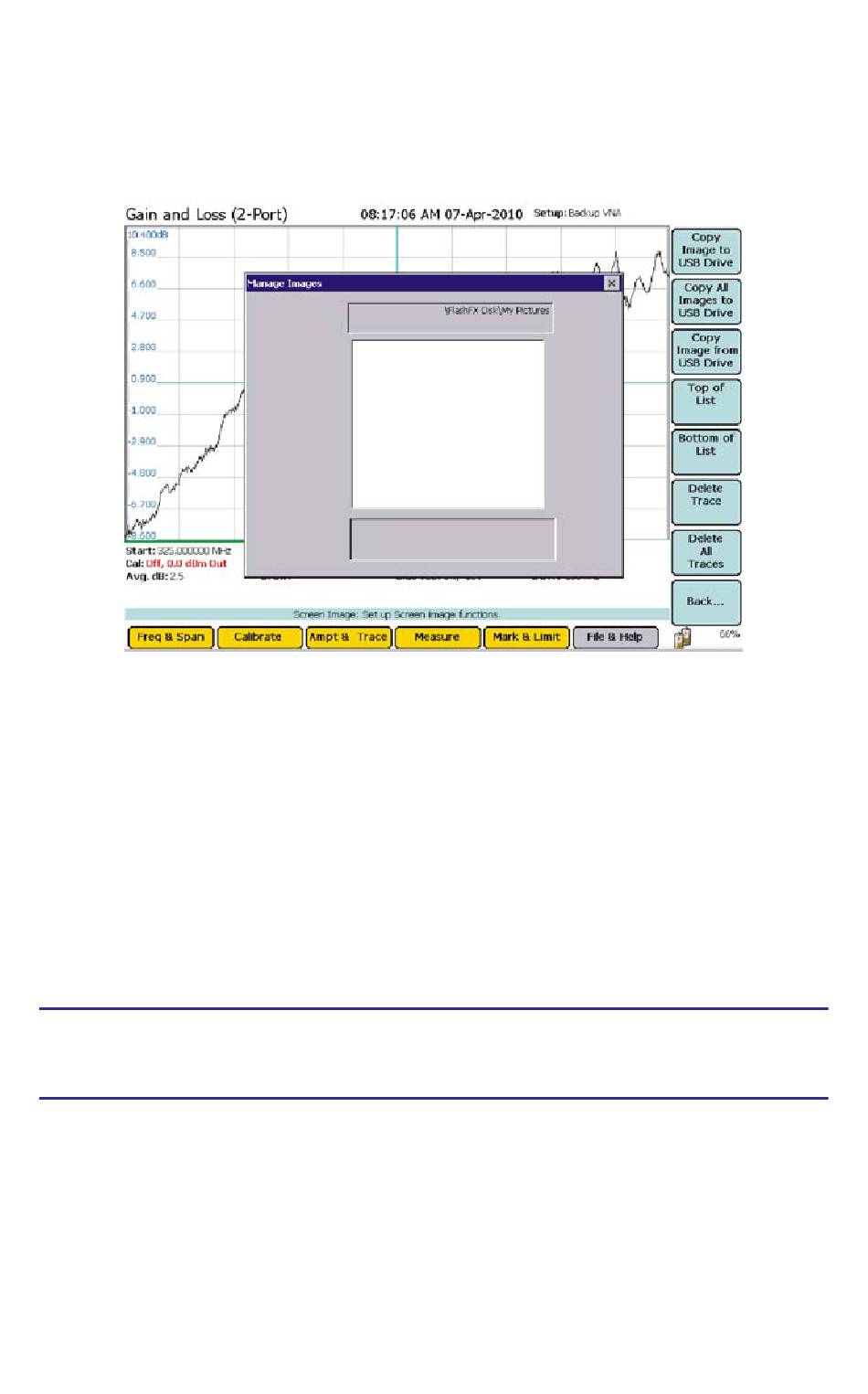

Figure 66 Manage Image Files

Copy Image to USB Drive -

Copy All Images to USB Drive -

drive.

Copy Image from USB Drive -

SignalHawk.
Selects the image listed at the top of the directory.

Top of List -

Bottom of List -

Delete Trace -

Delete All Traces -

Utility

See "Utility Main Menu" on page 126.

Help

Enables various Help sections that can be accessed via the soft keys. The Help
sections are listed below:

VNA Help (with Match, DTF, and Cable Loss sections)

Spectrum Analyzer Help

Power Meter Help

Custom Help
Saves selected image to the USB drive.
Selects the image listed at the bottom of the directory.
Deletes the selected image.
Deletes all the traces listed in the directory.
Saves all images in the directory the USB
Saves image to the internal memory of the
81
