Loss

Offsets the signal to compensate for cable loss. Using the soft keys,
this can be set in either dB/m or dB/ft.
Note: The wizard will automatically apply velocity and loss to their
fields.

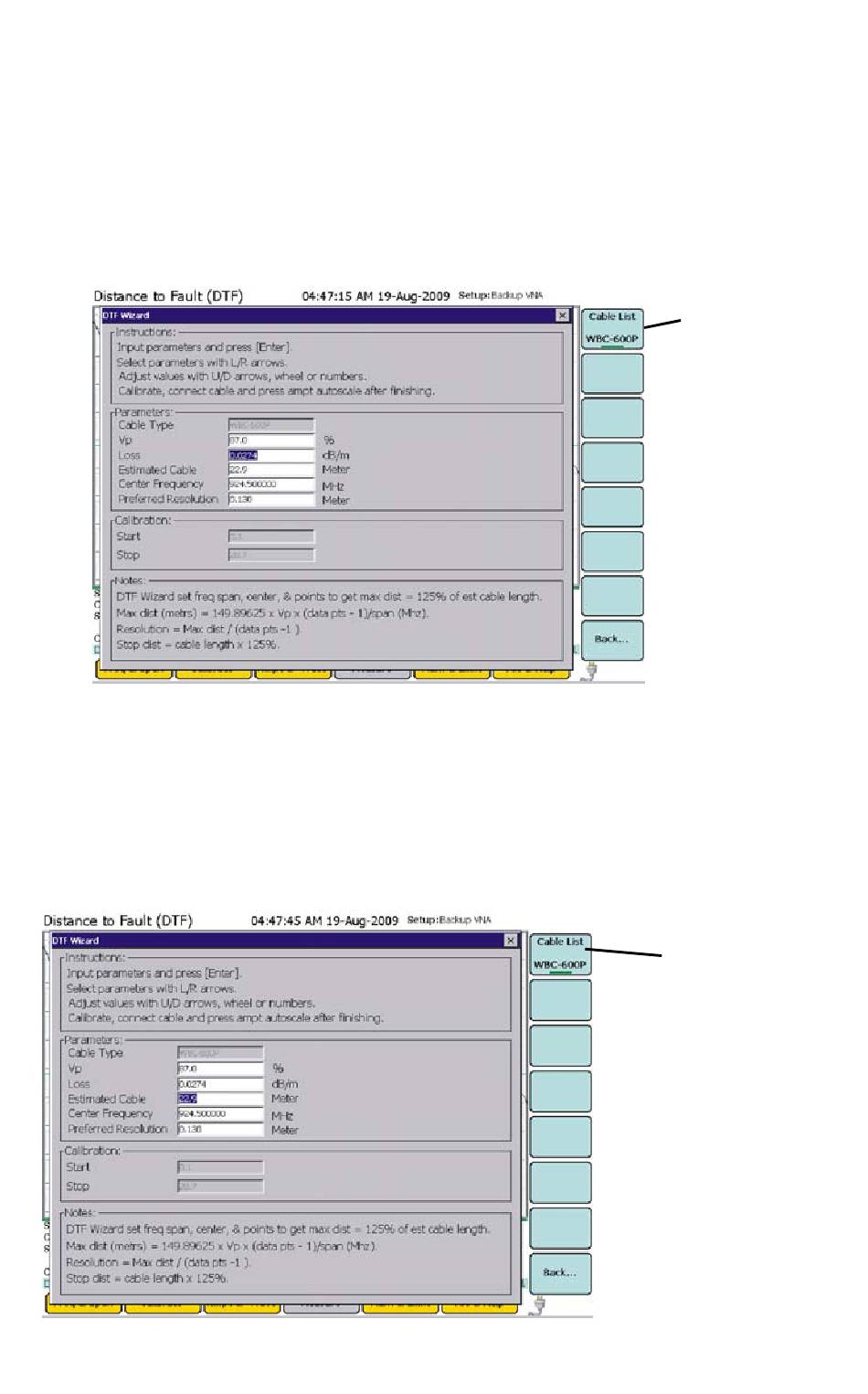

Figure 39 Example, Distance-to-Fault - DTF Wizard - Loss

Estimated Cable

Sets the length or, if length is unknown, the estimated length of the cable being tested.
Using the soft keys, this can be set in both Meter and Feet units.
Note: The stop distance automatically sets at125% of the entered
value to help prevent potential false spikes on the trace.
Figure 40 Example, Distance-to-Fault - DTF Wizard - Estimated Cable
