File & Help Menu; Quick Save - BIRD BirdTechnologies SignalHawk SH-36S Operating Instructions Manual

File & Help Menu

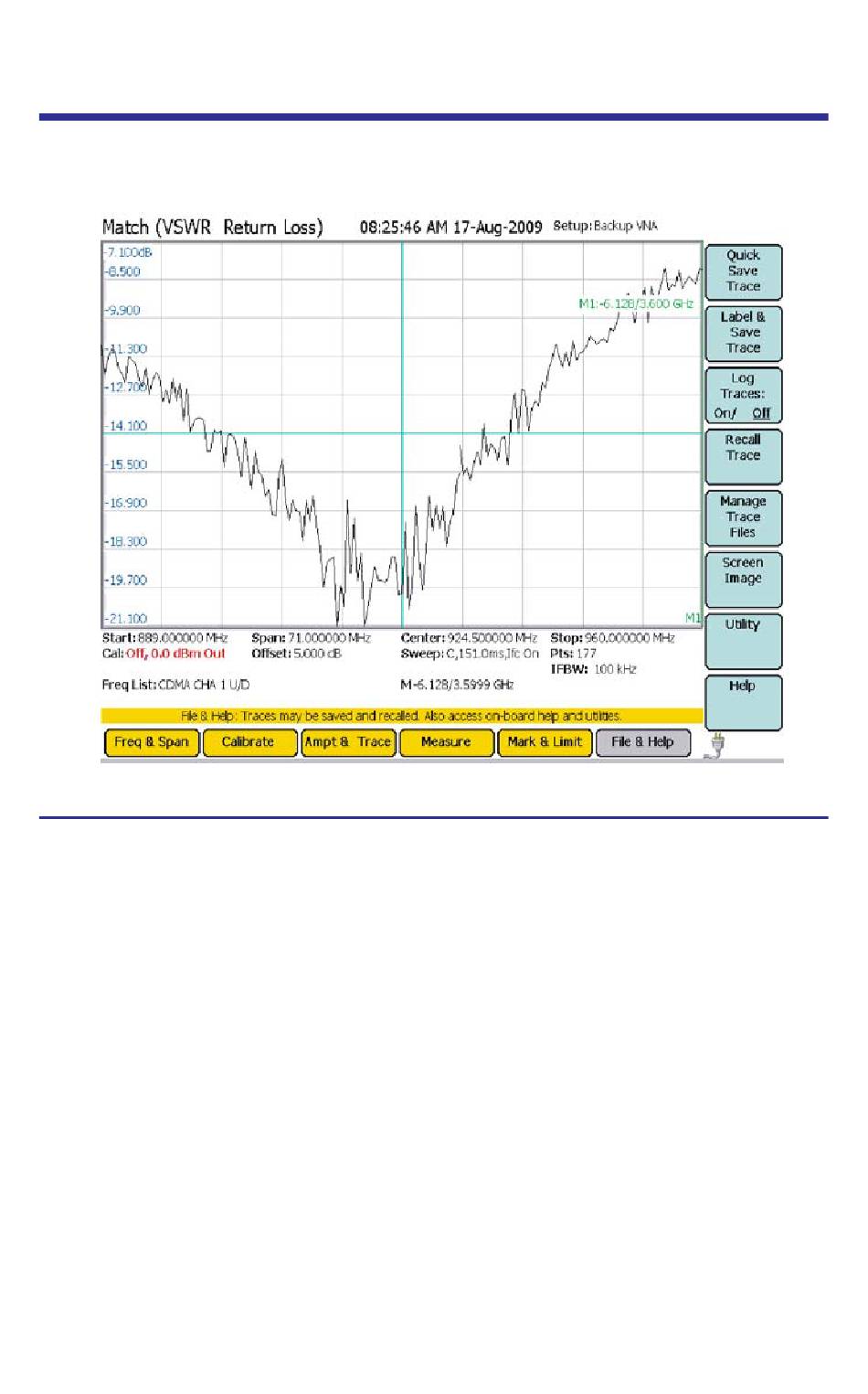

Figure 21 Example, File & Help Menu

Quick Save

Saves the trace that is displayed on the screen.
To save the trace:
1. Press the File & Help menu key
2. Press the Quick Save Trace soft key.
The trace is stored as a file in the internal memory of the instrument. Each quick
save is stored in a separate file that is named using the measurement and date-
time file naming format: Measurement name(MM-DD HH-MM-SS).shf. Where
the first MM is the month, DD is the day, HH is the hour, the second MM is the
minute, and SS is the second of the time when the file was saved.
The PCTool utility (supplied on the CD that ships with the instrument), enables
copying and/or moving stored files from the internal memory to an external
storage device.
