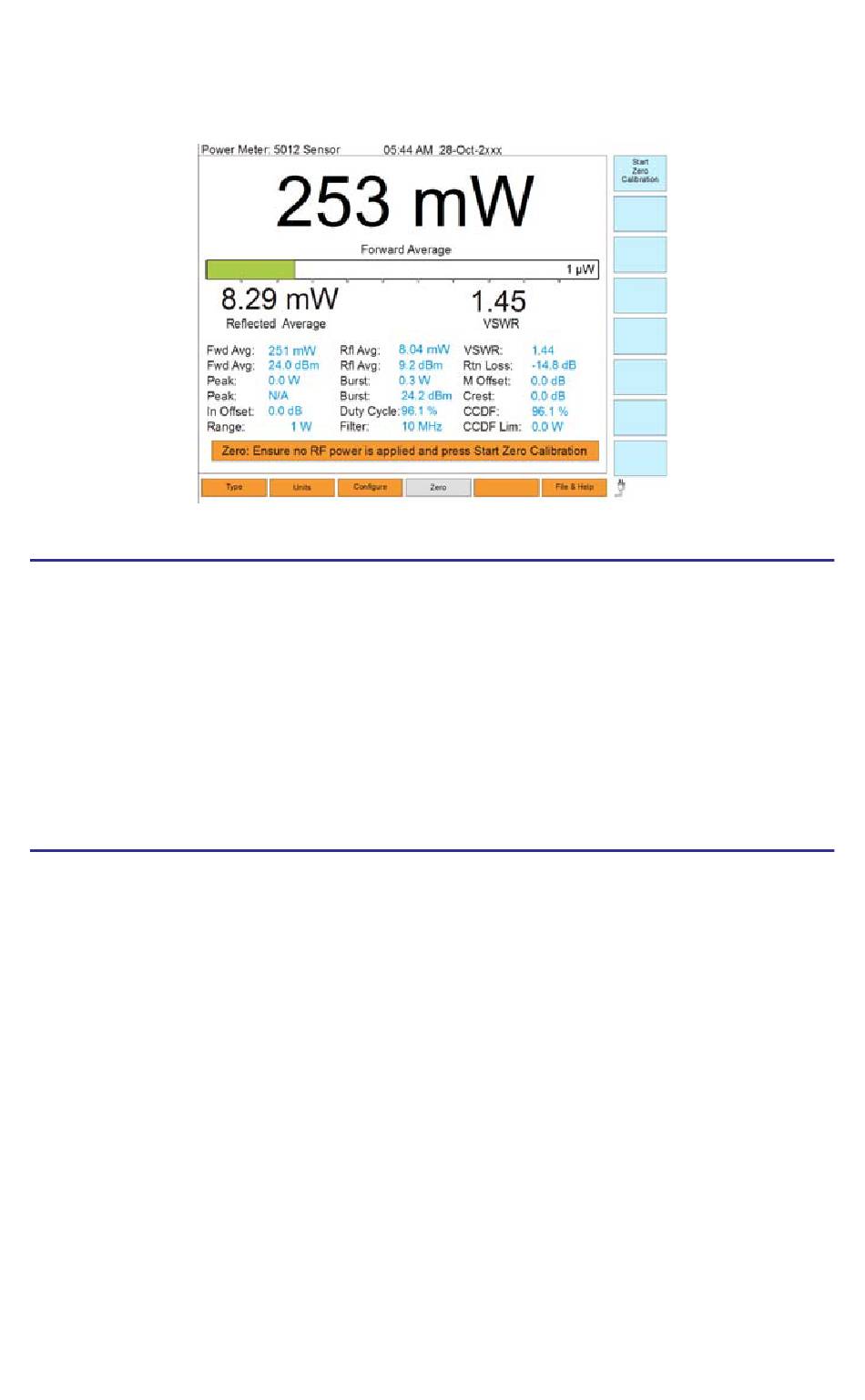

Figure 104 Power Meter, Digital Display, Zero Screen (Wideband sen-
sor)

Quick Setup - Zero a Sensor

1. Check that no RF is in the system.
Note: The sensor will read approximately "0."
2. Press the Zero menu key.
3. Press the Start Zero Calibration soft key.
Note: Some soft key features will not be available for certain power
sensors.
File & Help
The soft keys for saving the current trace, selecting the utility option, activating
the logging feature, and accessing help features (Figure 105) are enabled.
A trace is saved as a file and stored in the internal memory of the instrument.
Using the PCTool utility that is supplied on the CD that ships with the Signal-
Hawk, stored files can be copied or moved from the internal memory to an
external storage device.
122
