Add to Lower Limit Line

Adds a limit line to the graph.

First click will create a point on the graph with a line.

Second click will create another point that connects to the first point
via a line.

Third click connects to the second, and so on

Delete Markers or Limit Lines

Deletes a marker, a limit line, or a point on a limit line. When deleting points, the icon
will change to an eraser graphic when the icon floats over something that can be
deleted.

Option Dialog Box

Opens the pop-up Option Dialog box. "Options Dialog Box (View>Options)" on
page 105.

Measurement Types

The measurement types for that file are displayed, depending on the type of file
being read.

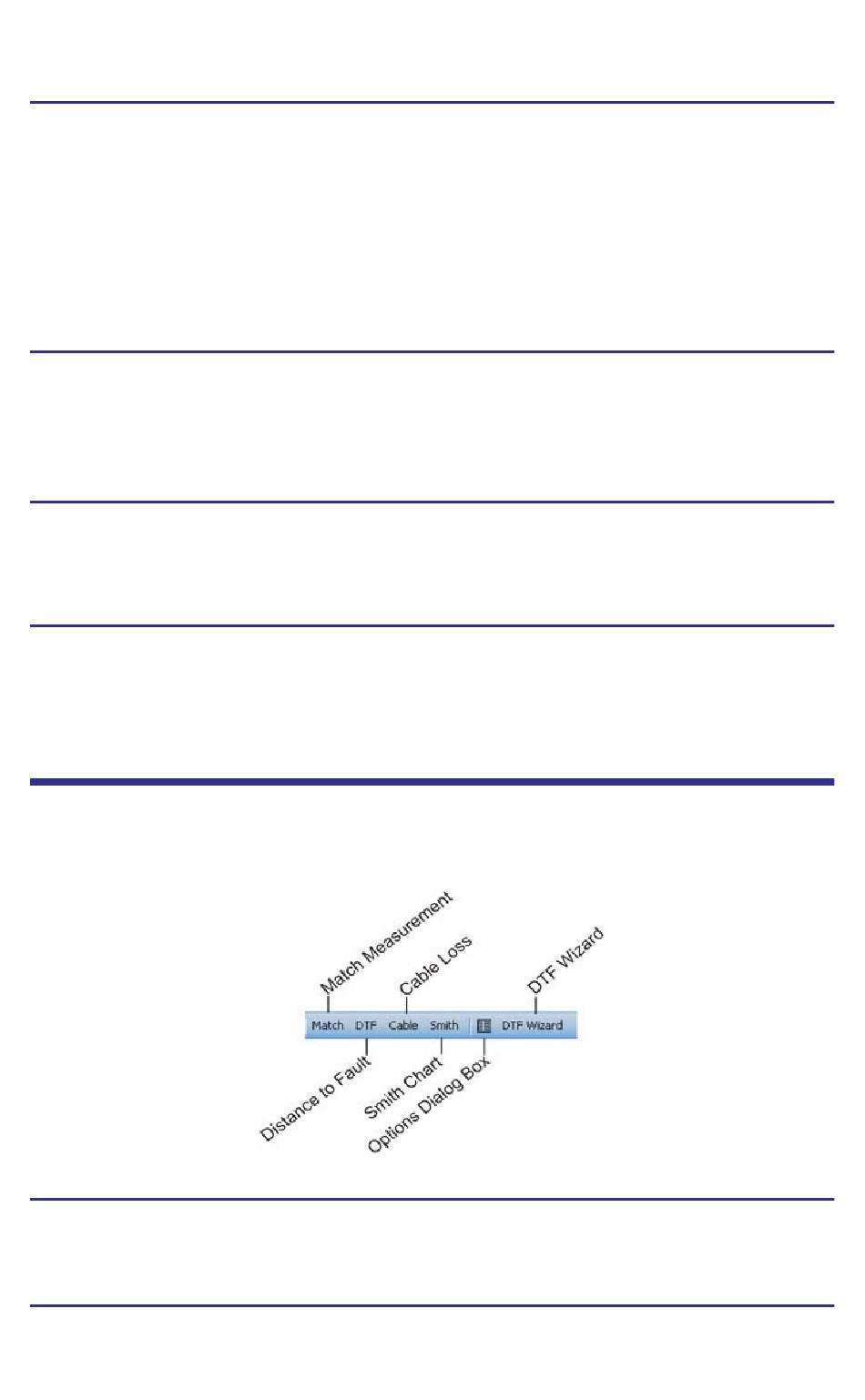

VNA Tool Bar

Note: There is an addendum, with additional options, to the menu
bar when the PC Tool is reading a VNA file.

Match

Sets the current trace to a Match measurement display.

Distance to Fault

Sets the current trace to a Distance to Fault display.
