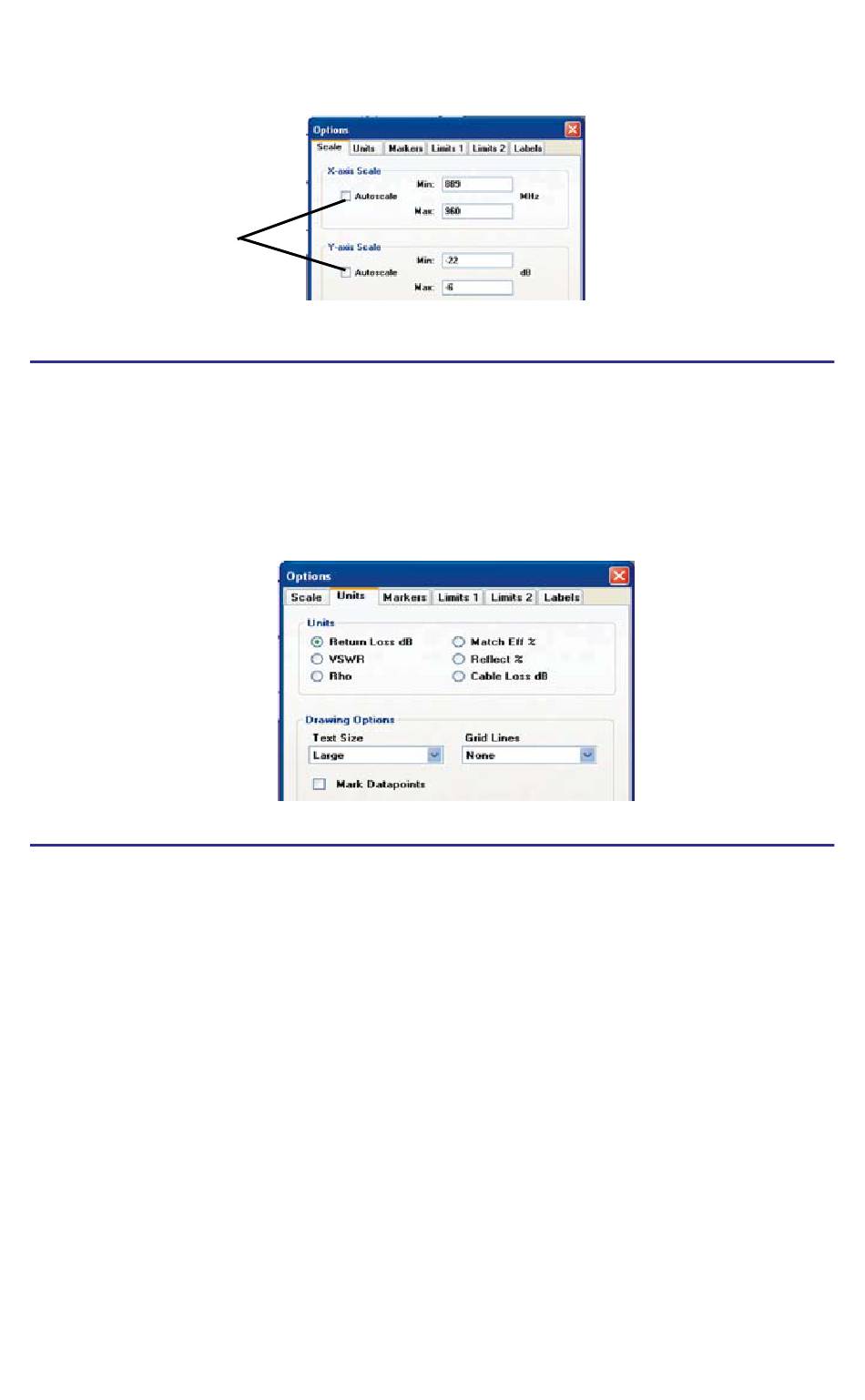

Figure 87 Example, Scale Tab
Auto-
scale

Units Tab

1. Select the units of measure for the y axis.
2. Set the size of text for the entire graph.
3. Set whether or not to display grid lines.
Figure 88 Example, Units Tab

Markers Tab

When a frequency or distance for a marker is entered, the marker will be set to
the datapoint closest to that frequency or distance. The actual frequency of the
marker will replace the value entered and will also display on the screen below
the graph area.
For each marker:
1. Specify or change the frequency.
2. Specify the symbol type.
3. Specify a delta with another marker.
4. Turn a marker on or off.
Note: After turning a marker on in the Options window, the marker
can be moved by clicking on the marker and dragging it to a desired
location.
106
