Looking at the Screen

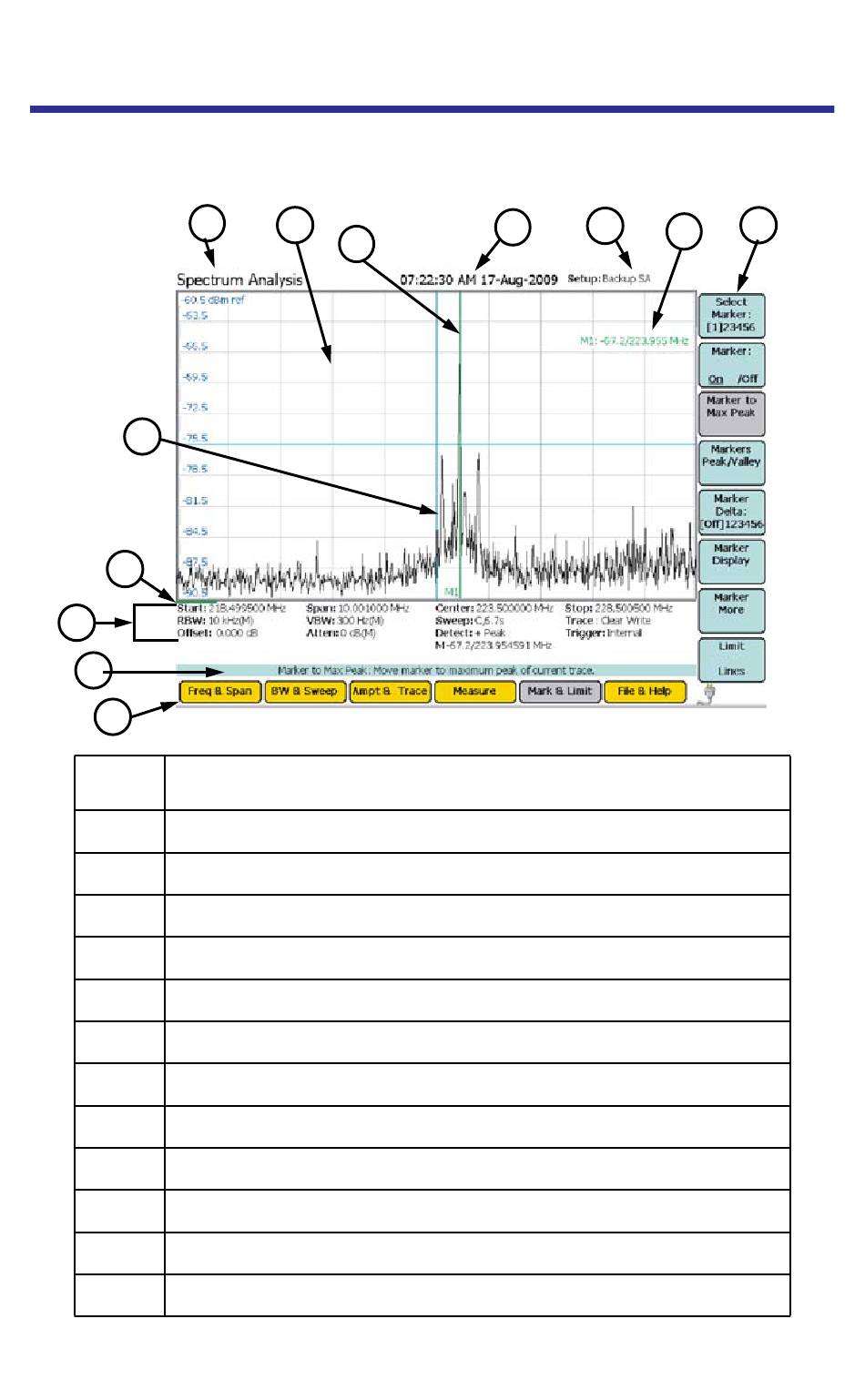

Figure 13 General Screen Features
12
11
10
9
8
Item
1 Name of selected measurement
2 Sweep display area
3 Marker (Line Marker shown)
4 Date and time
5 Name of setup file being used
6 Marker Info
7 Soft key labels
8 Menu key labels
9 Help tips for the current screen
10 Measurement settings
11 Sweep progress bar
12 Data trace
1
2
3
~
4
Description
5 7
6
17
