Center Frequency; Preferred Resolution - BIRD BirdTechnologies SignalHawk SH-36S Operating Instructions Manual

Center Frequency

Sets the center frequency of the trace to allow for the most accurate reading as
possible, whether testing antennas, filters and the like. Using the soft keys, this
can be set in Hz, kHz, MHz, and GHz.

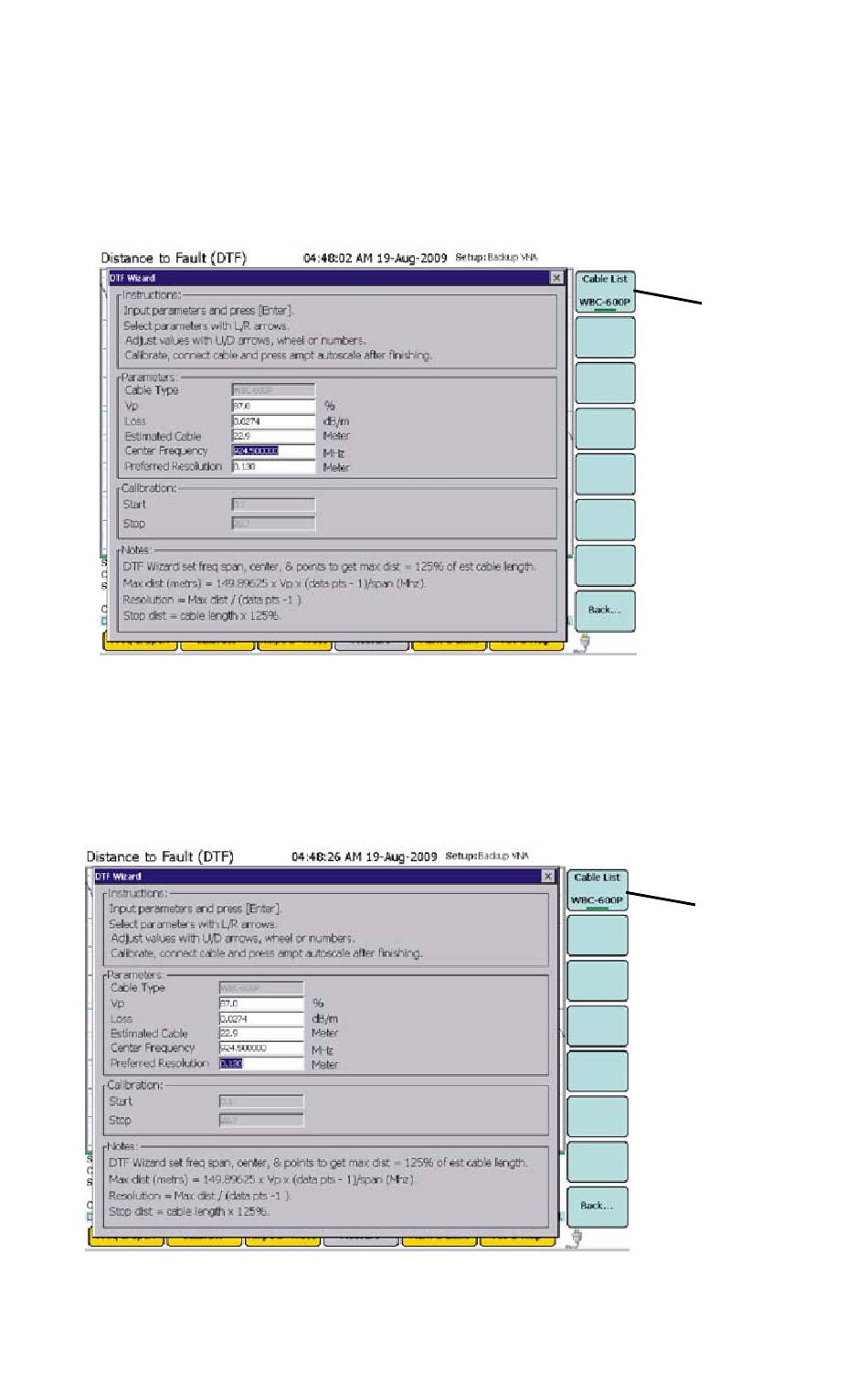

Figure 41 Example, Distance-to-Fault - DTF Wizard - Center Frequency
Settings

Preferred Resolution

Sets the desired resolution, or distance each pixel of the display
covers, of the signal being tested. Using the soft keys, this can be set in Meters
and Feet.
Figure 42 Example, Distance-to-Fault - DTF Wizard - Preferred Resolution
Settings
Once all variables are set, press the enter key to begin Calibration. See "Cali-
brate Menu" on page 27.
