Ampt & Trace Menu

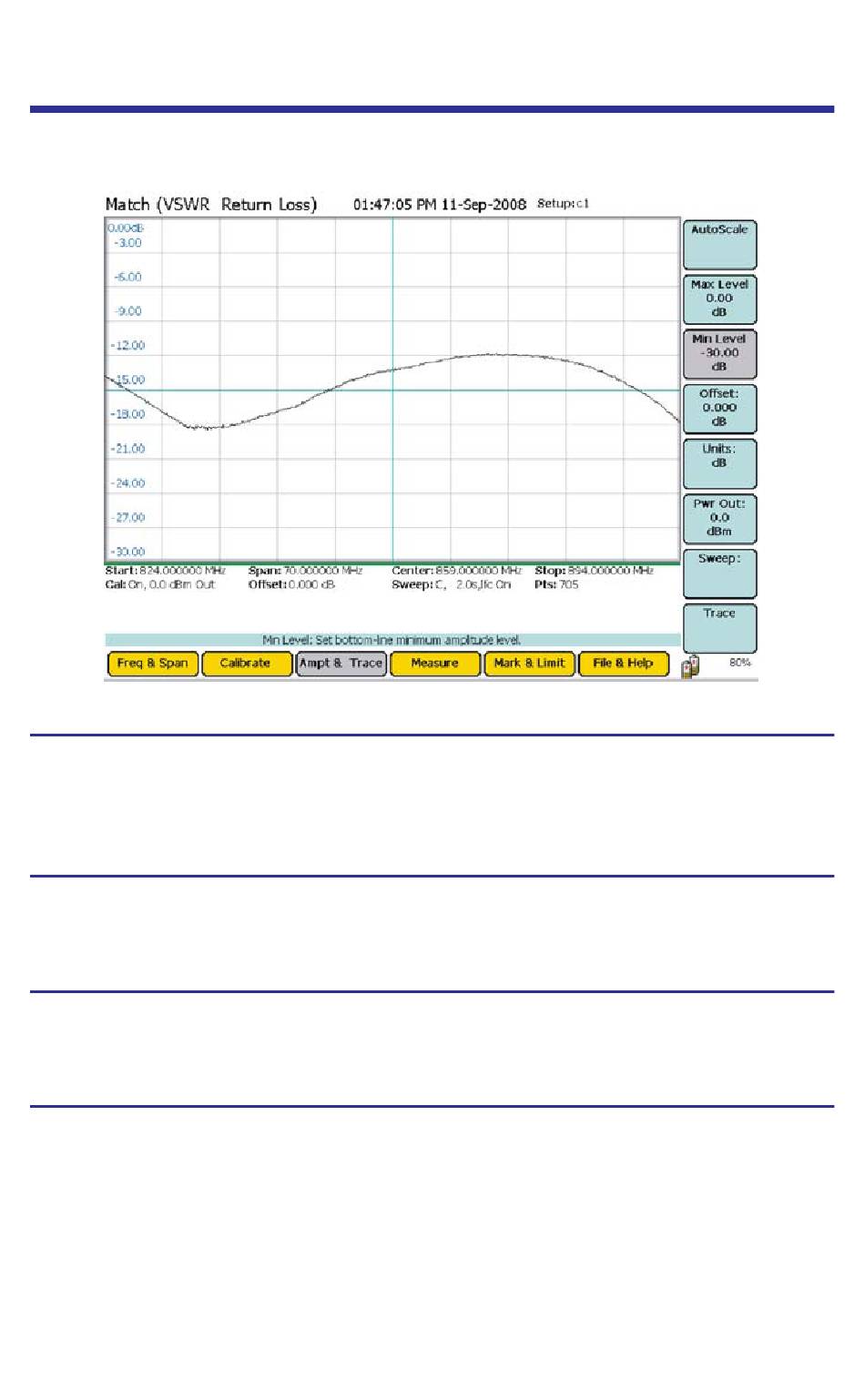

Figure 17 Example, Ampt & Trace Menu

Autoscale

Resizes the graph to fit the whole trace on the screen. This function will change
the reference and scale of a trace.

Max Level

Sets the upper limit of the vertical axis.

Min Level

Sets the lower limit of the vertical axis.

Offset

Shifts the signal to compensate for external factors (attenuation, couplers,
amplifiers, etc.) This allows for a true signal level reading.
1. Measure the total amount of loss for all attached signal devices.
2. Enter the measured amount as the Offset value or gain.
Example - The system has 10 dB of loss due the use of a
coupler; enter the value of 10 in the Offset). Offset range is -
100 to +100.
29
