Label & Save Trace
Labels and saves the trace for future use.
1. Press the Save Trace soft key.
2. Enter a file name using the thumbwheel and arrow keys.
Note: Use the up-and-down arrow keys to move vertically and the
wheel to move horizontally along the Input Panel. Use the right-and-left
keys to toggle between the text fields (Name, Title, etc.)

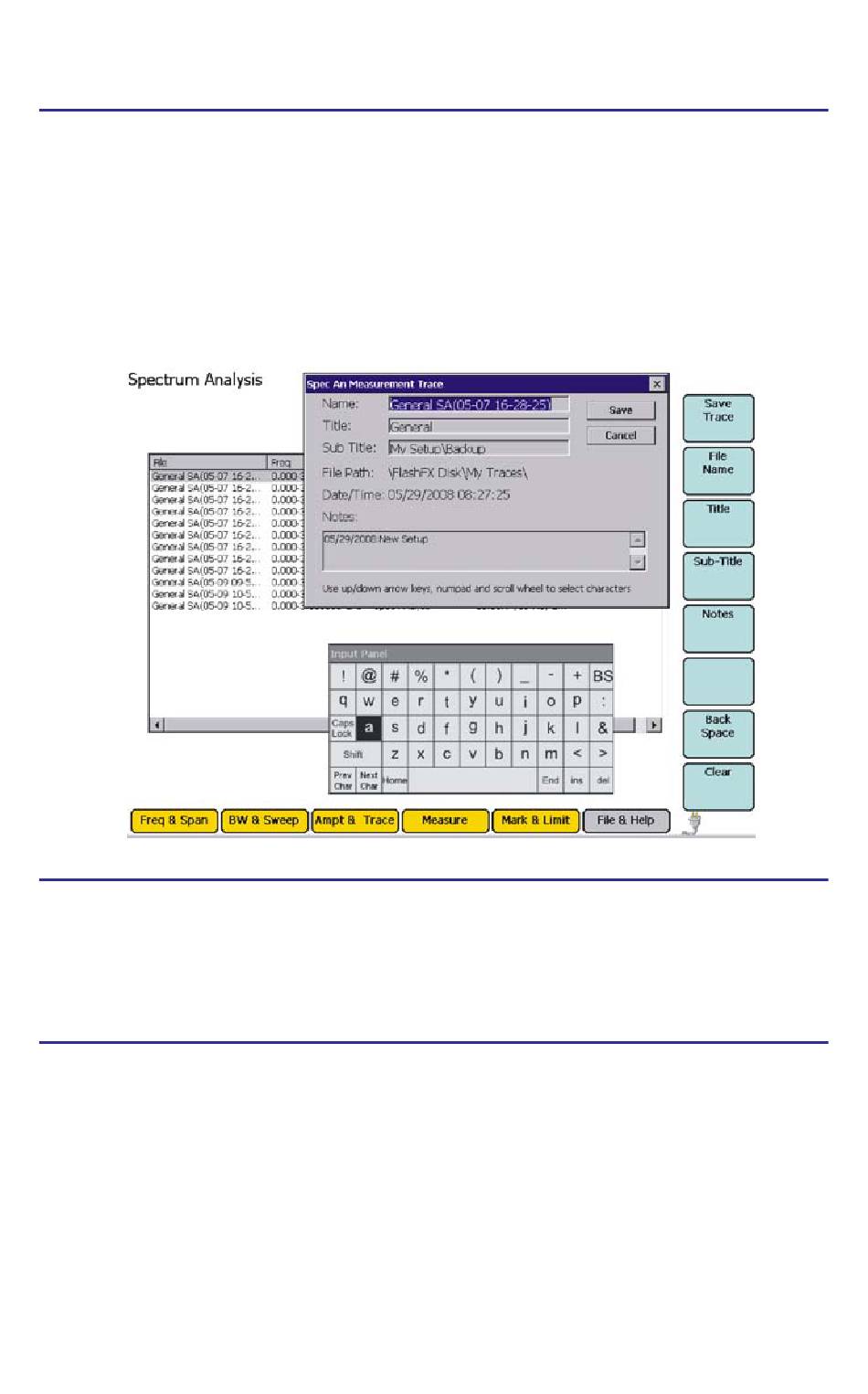

Figure 22 Example, Save Trace

Log Traces

Press the soft key to turn this function on. Once on, it saves a sweep at a preset
sample rate.
Note: The sample rate can be set from 60 to 3600 seconds.

Recall Trace

Opens up a submenu with three options:
Recall Trace
Displays a saved trace on the screen.
Recall & Compare
Displays a saved trace overlapping over the current trace on the screen.
Note: The Saved trace is orange. The current trace is black.

Clear Recalled Trace

Removes the saved trace from the screen.
