1. Connect a power sensor to the SignalHawk serial port "RS-232" with a 9-pin
serial cable.
2. Select the Power Meter option on the Main Menu screen.
Note: Once the sensor is connected, the menu option has been
selected, and the SignalHawk has detected it, the display will change
to the sensor screen.
Note: If no power sensor is detected, the Power Meter screen dis-
plays the message "Power Sensor cannot be acquired."
+20 dBm (100 mW) max. RF input for the Spectrum Analyzer
and +22 dBm (160 mW) max. RF input for the Vector
Exceeding the maximum input will damage the SignalHawk.
If unsure of power levels, measure the test connection with a

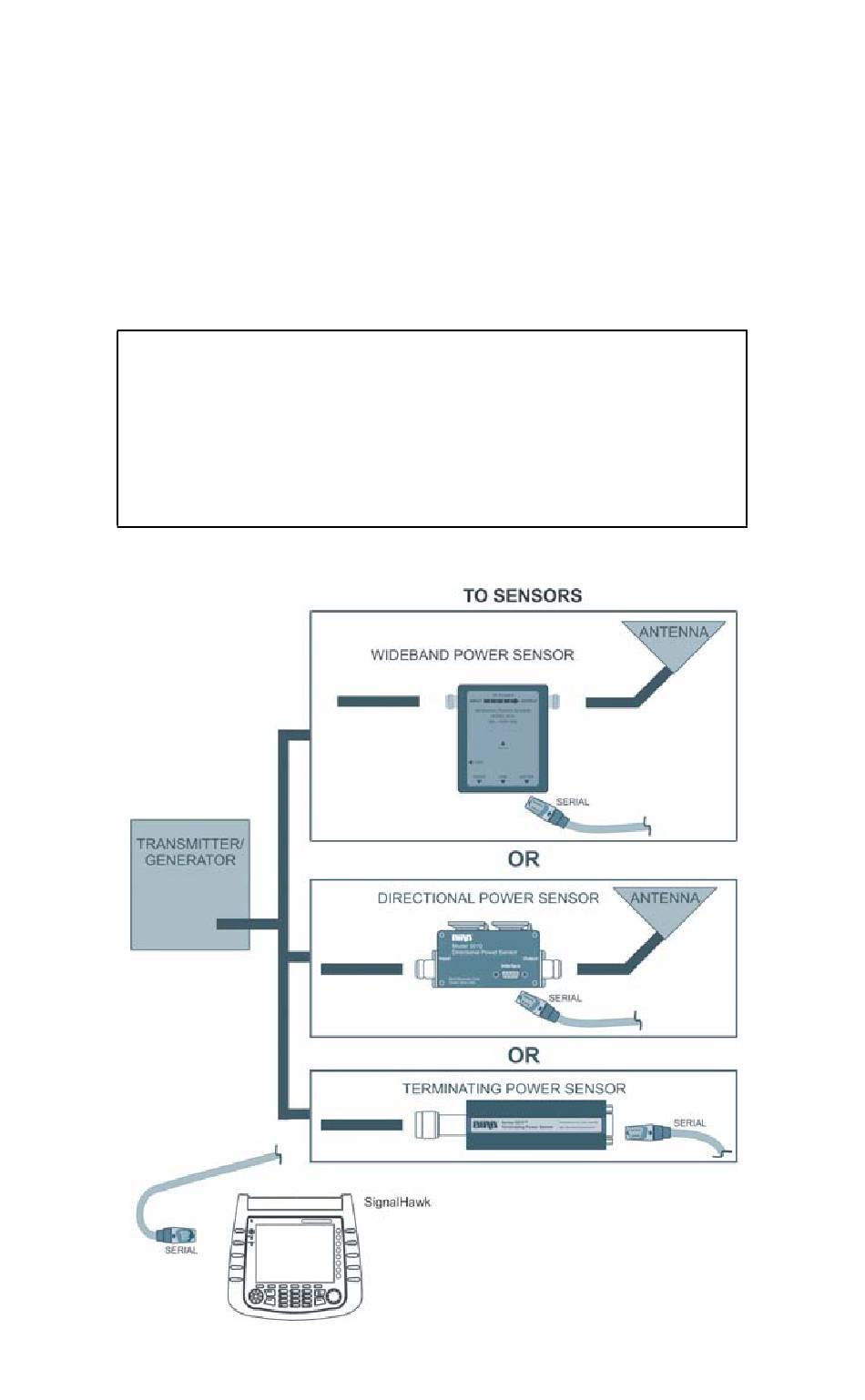

Figure 96 Connecting a Power Sensor to the SignalHawk
Network Analyzer.
power sensor before using the SignalHawk.
CAUTION
113
