Examples and tips

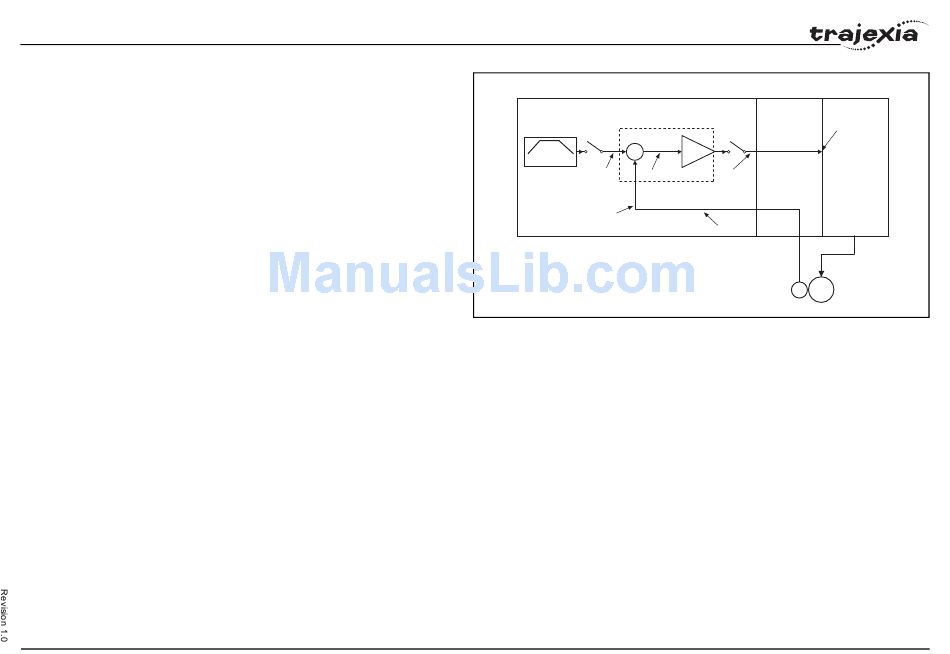

In this mode the position loop is closed in Trajexia and the Speed loop is
closed in the Servo Driver. The Speed axis parameter is sent to the Servo
Driver, and reads the position feedback.
BASE(0)
ATYPE=44 'Servo axis encoder mode
SERVO=1
WDOG=1
DEFPOS(0)
loop:
MOVE(81920)
WAIT IDLE
WA(100)
DEFPOS(0)
GOTO loop
