Communication protocols

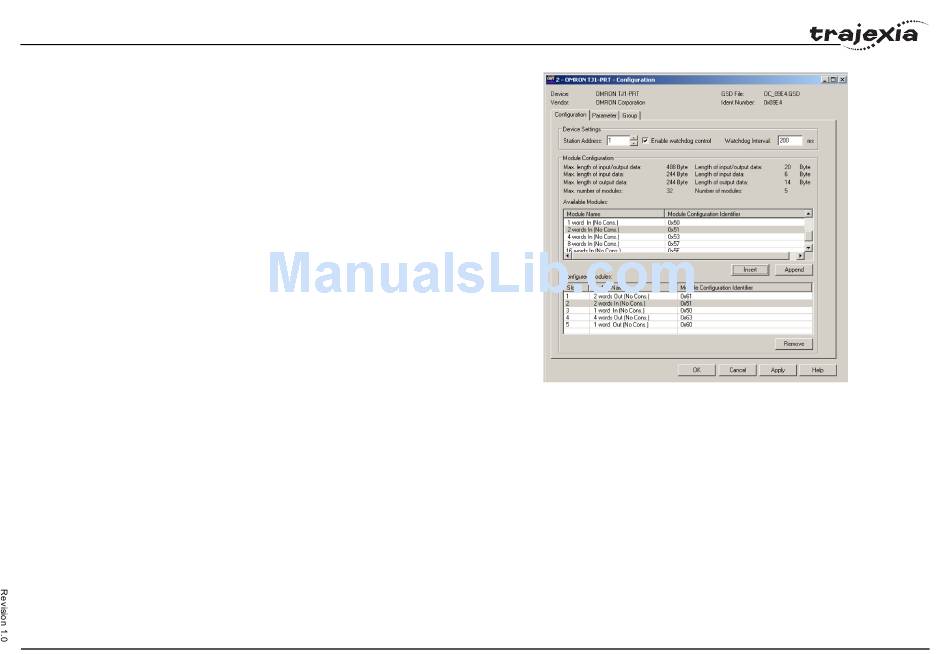

10. Double-click the TJ1-PRT slave module in the MyNetwork tree.
11. Set the node number in the Station Address field.
12. Add (Insert) input and output modules to the configuration list below.
13. Make sure that the quantity of input words and output words in the
selected modules are equal to the quantity selected with the PROFIBUS
command.
14. Click OK.
To configure the CJ1W-PRM21 with the CX-PROFIBUS, do these steps:
PROGRAMMING MANUAL
fig. 6
