SmartSlice
The smartest modular I/O system
OMRON's SmartSlice I/O system is compact, intelligent and
easy. When used with OMRON's CS1/CJ1 DeviceNet or
CompoNet master units, no configuration tool is required.
By using built-in functions such as pre-scaling, totalising,
differentiation and alarming in analog I/O units, PLC pro-
gramming can be minimised. Preventive maintenance data
collected by all I/O units can be accessed using CX-Integra-
tor or NS-series Smart Active Parts.
• Most compact in the market (84 mm high)
• Easy set-up, backup and restore functions
• Diagnostics and preventive maintenance data at I/O level
• Detachable terminal blocks allow hot-swapping without
re-wiring
• 3-wire I/O connection with 'push-in' technology, no screw-
driver required

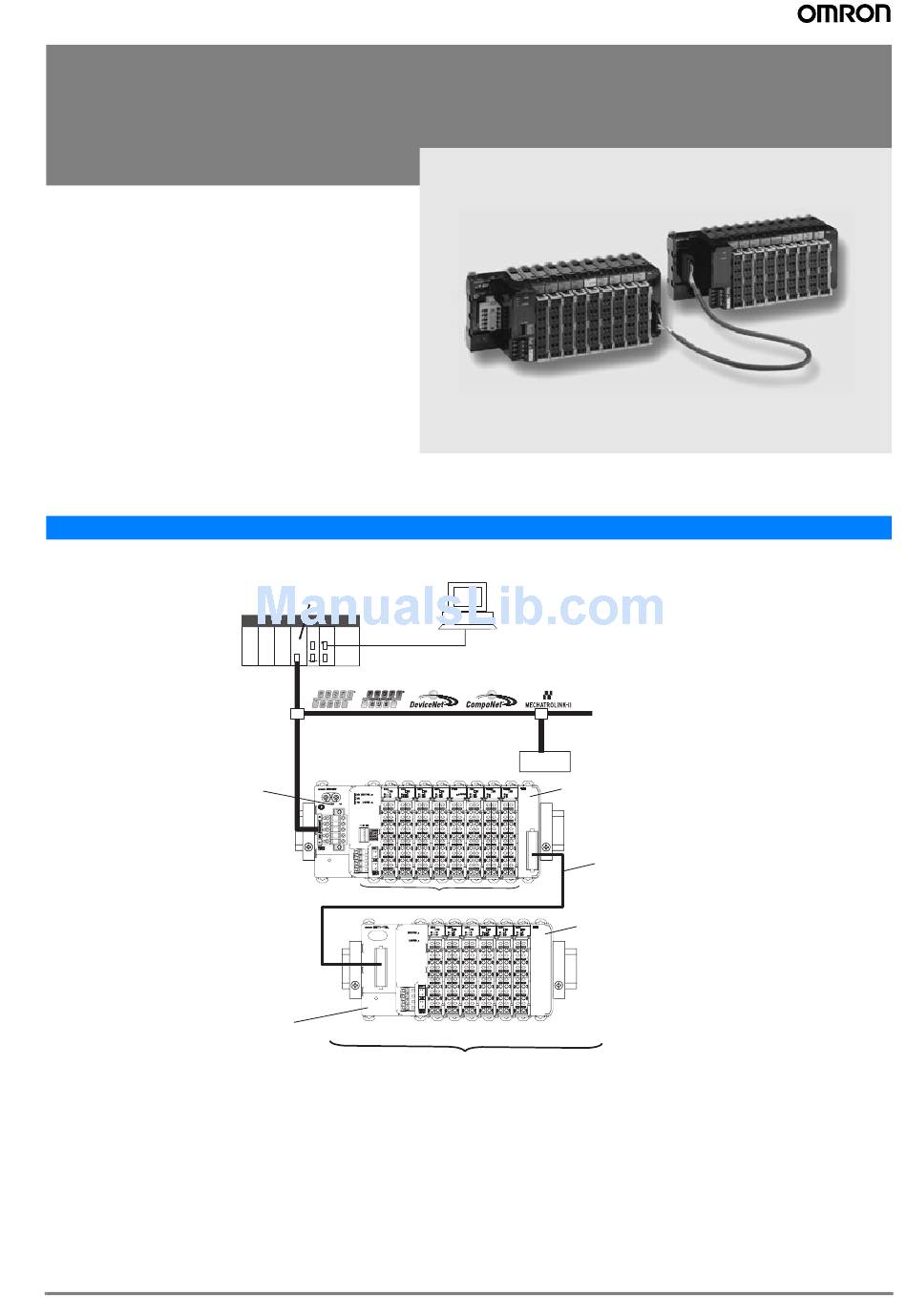

System Configuration
PLC
Communication Unit
GRT1-TBL Left Turnback Unit
SmartSlice
CS1/CJ1 PLC series or
Trajexia Motion Controller (ML-II only)
Up to 64 I/O Units can be connected to a Communication Unit.
CX-One for setup,
monitoring and operation
of all OMRON Devices
Slave
GRT1-TBR Right Turnback Unit
I/O Units
GRT1-END End Unit
GCN2-100 Turnback Cable (1 m)
Max. 2 per station.
1
Advertisement
Table of Contents
Related Manuals for Omron SMARTSLICE
Summary of Contents for Omron SMARTSLICE
- Page 1 OMRON Devices Slave Communication Unit GRT1-TBR Right Turnback Unit GCN2-100 Turnback Cable (1 m) Max. 2 per station. I/O Units GRT1-END End Unit GRT1-TBL Left Turnback Unit Up to 64 I/O Units can be connected to a Communication Unit. SmartSlice...
-
Page 2: General Specifications
Screwless push-in technology Noise immunity Conforms to IEC61000-4-4, 2.0 kV (power supply line) Vibration resistance 10 to 60 Hz: 0.7 mm double amplitude 60 to 150 Hz: 50 m/s Shock resistance 150 m/s , 3 times in each direction Dielectric strength... -
Page 3: Digital Input Units
PNP type) Number of input points 4 inputs 8 inputs Power terminals 4 x V (24 V) + 4 x G (0 V) 4 x G (0 V) 4 x V (24 V) ON voltage 15 VDC min. ON current 6 mA max./point (at 24 VDC) -
Page 4: Digital Output Units
4 outputs Power terminals 4 x V (24 V) 4 x G (0 V) 4 x V (24 V) + 4 x G (0 V) Rated voltage 24 VDC (20.4 to 26.4 VDC) 24 V I/O power supply via the front terminal of the unit. - Page 5 32 bit double signed integer Comparison values 1 range (2 comparison values) 2 independent ranges Control Input IN0, DC input (NPN type) IN0, DC input (PNP type) Control Input functions Capture, Preset, Reset Capture, Preset, Reset, Z enable Control Outputs...
-
Page 6: Analog I/O Units
±0.3% of PV or ±0.8 °C* (whichever is larger) ±2°C ±1 digit max. ±1 digit max. Mounting restrictions * (or ±0.5 °C for -200 °C to +200 °C input range) apply. See Operation Manual W455 Resolution 0.1 °C, 16-bit signed integer, or 0.01 °C, 32-bit signed double integer... - Page 7 Power Feed and Distribution Units GRT1-PD2 GRT1-PD2G GRT1-PD8 RESET V(R) 24 VDC 24 VDC 24 VDC GRT1-PD8-1 GRT1-PC8 GRT1-PC8-1 24 VDC SmartSlice...
- Page 8 Dimensions I/O-units Communication Units GRT1-CRT GRT1-DRT GRT1-ML2 GRT1-PNT GRT1-PRT GRT1-TBL End units GRT1-END GRT1-END-M GRT1-TBR Control System...
-
Page 9: Ordering Information
I/O power feed unit with electronic overload protection, separates power supply between groups of I/O units 84x15x74 GRT1-PD2G I/O power feed and distribution unit, separates power supply between groups of I/O units, 8xV + 4xG 84x15x74 GRT1-PD8 I/O power feed and distribution unit, separates power supply between groups of I/O units, 4xV + 8xG... -
Page 10: Master Units
Available 06-2008 Software Function Model code CX-One, Omron's integrated software for programming and configuration of all control system components, CX-ONE-AL@@ C-E including PLCs, remote I/O, HMI, servo drives, inverters, temperature controllers and advanced sensors. @@ = number of licenses (01, 03, 10) Cat.
