VCI Manager

The VCI Manager is for connecting the MaxiSys Elite II Pro tablet with a VCI through
Bluetooth. This application allows you to pair the tablet with the VCI and to check its
communication status.

9.1 VCI Connection via Bluetooth

The VCI needs to be either connected to a vehicle or to an available power source, so
that it is powered up during the synchronization procedure. Make sure the tablet has a
fully charged battery or is connected to an external power supply.

To pair the VCI with the tablet via Bluetooth
1. Power on the tablet.
2. Connect the 26-pin end of the main cable to the VCI's vehicle data connector.
3. Connect the 16-pin end of the main cable to the vehicle Data Link Connector
(DLC).
4. Tap VCI Manager on the MaxiSys Job Menu of the tablet.
5. Select VCI BT (short for VCI Bluetooth) from the connection mode list. Tap the
Bluetooth toggle to turn it ON. The device will start searching for available units
for pairing.
Depending on the type of VCI you use, the device name may appear as "Maxi"
6.
suffixed with a serial number. Select the appropriate device for connection.

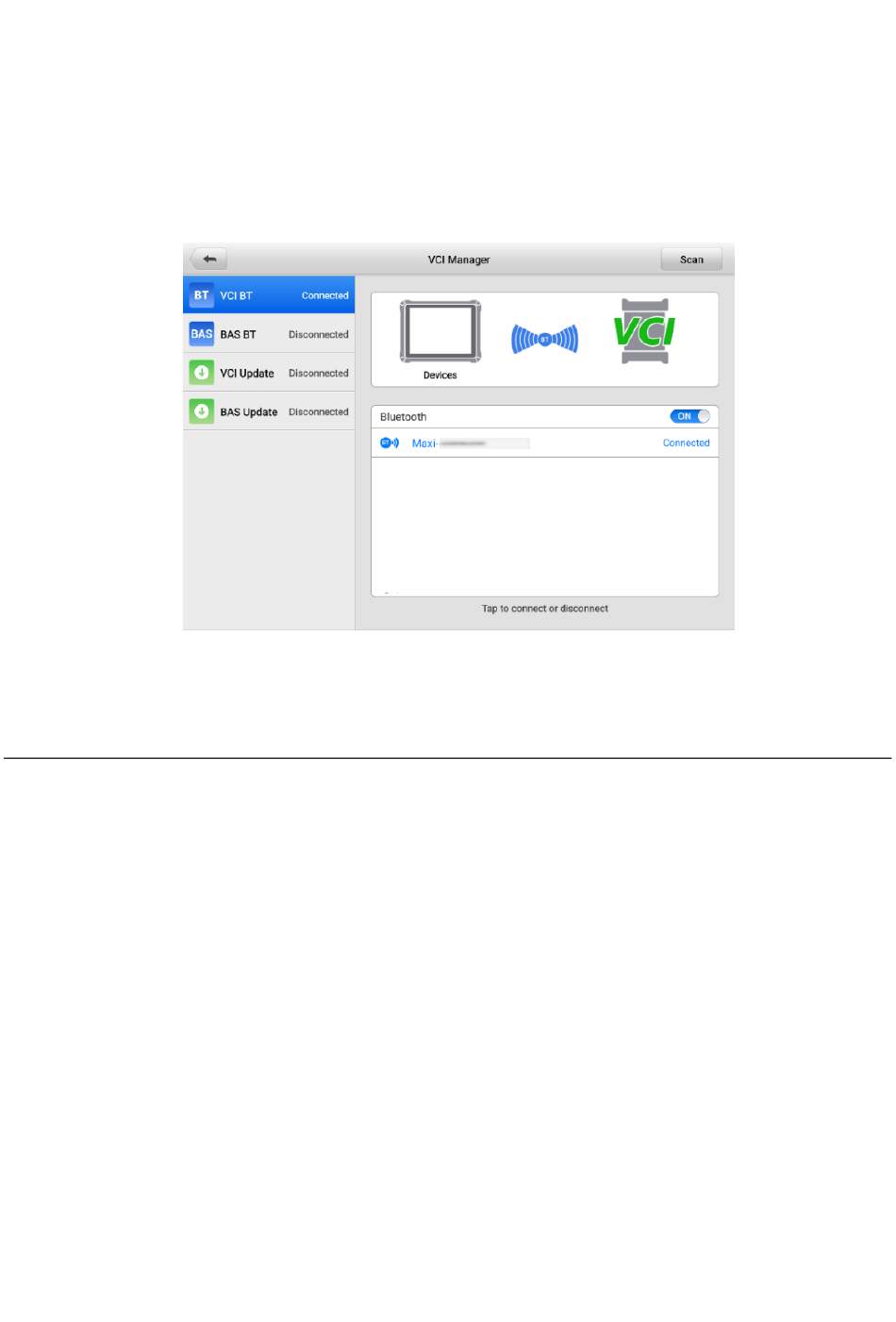

Figure 9-1 VCI Manager Screen
