② Text Mode — default displays the parameters as a text list.
NOTE
Some status parameters, such as a switch reading like ON, OFF, ACTIVE, and ABORT,
can only be displayed in Text Mode. Others, such as a sensor reading, can be displayed
in both text and graph modes.
③ Waveform Mode — displays the parameters in waveform graphs.
In this mode, five control buttons will appear to the right of the parameter, allowing you
to manipulate the display status.
 Settings Button (SetY) — sets the minimum and maximum value of the Y-axis.
 Scale Button — changes the scale values.
There are two scale buttons, displayed above the waveform graph to the right side, which
can be used to change the scale values of the X-axis and Y-axis of the graph. There are
four scales available for the X-axis: x1, x2, x4 and x8, and three scales available for the
Y-axis: x1, x2, and x4.
 Edit Button — edit the waveform color and line thickness.
 Zoom-in Button — tap once to display the selected data graph in full screen.
 Exit Button — tap to exit the waveform mode.
Full Screen Display — this option is only available in the waveform mode, and is mostly
used in Graph Merge status for data comparison. There are three control buttons
available on the top-right side of the screen under this mode.

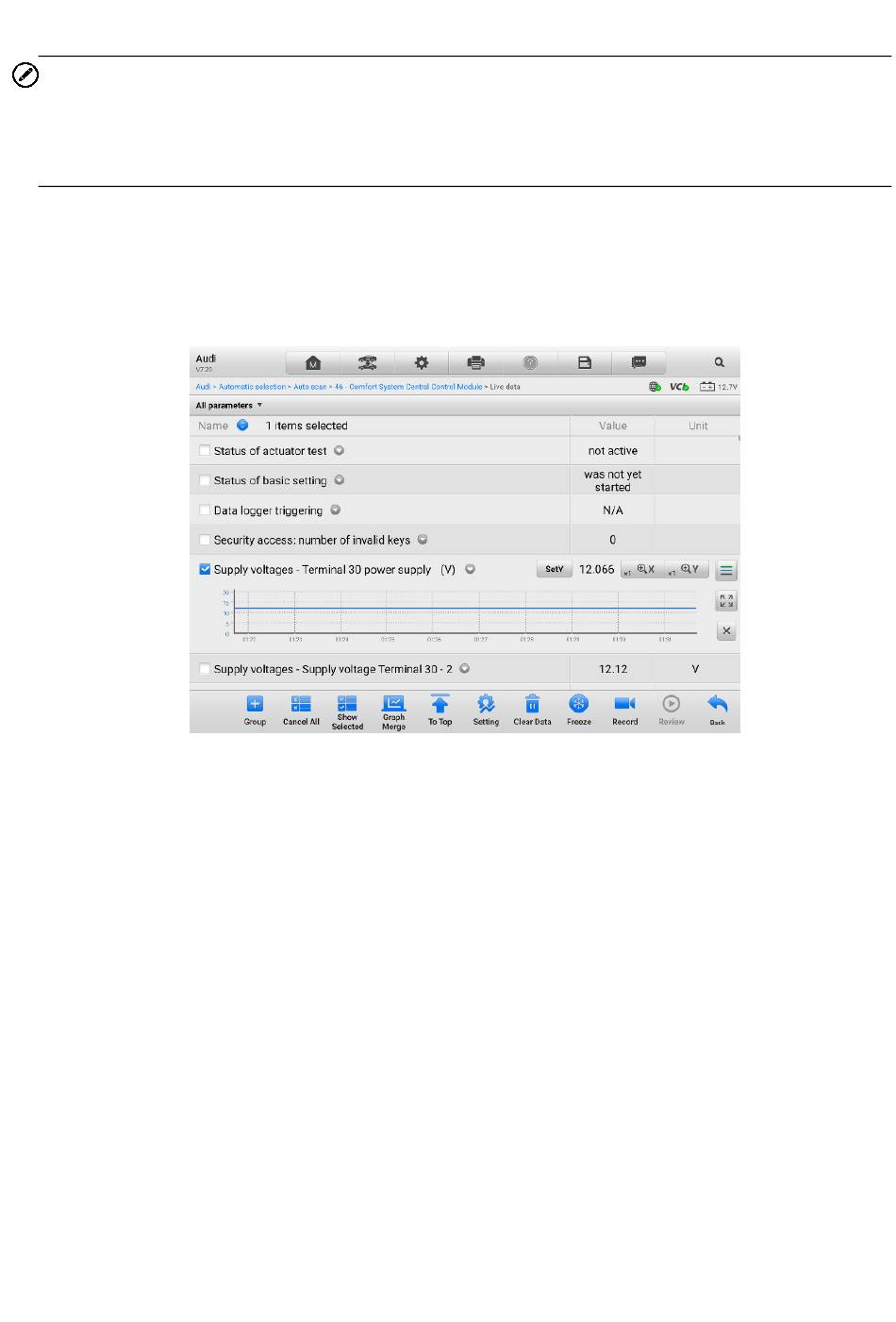

Figure 4-14 Waveform Graph Mode Screen
