Out-Vehicle Test - Autel MSOBD2KIT User Manual

6.3 Out-vehicle Test

Out-vehicle Test is used to test the conditions of batteries that are not connected to a
vehicle. This function aims to check the health status of the battery only.
6.3.1 Test Procedure

To start the out-vehicle test
1. Tap Battery Test from the MaxiSys Job Menu. Select Out-vehicle Test.
2. Connect the tester clamps to the battery terminals.
3. Select the appropriate battery type, rating standard, and CCA value. Tap Start
Testing to start the test.
4. The test results will display in a few seconds.

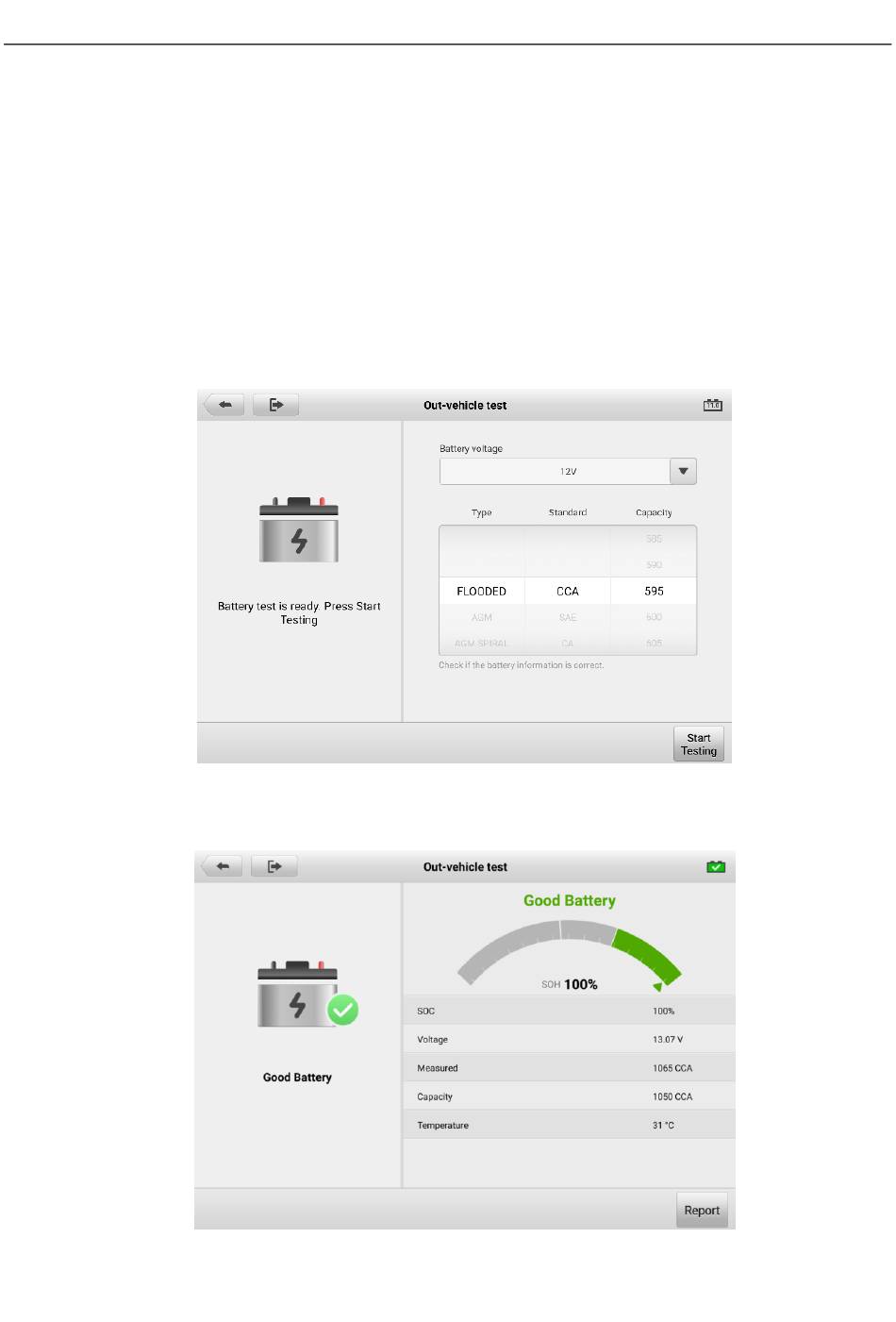

Figure 6-7 Out-vehicle Test Screen
Figure 6-8 Out-vehicle Test Results Screen
68
