3. Tap Scan VIN/License in the dropdown list
On the right side of the screen, from top to bottom, three options are available:
Scan Bar Code, Scan VIN, and Scan License.
NOTE
The Scan License option is supported in certain countries and areas. If not available,
manually enter the license number.
4. Select one of the three options and position the tablet to align the VIN or license
number within the scanning window, the result appears in the Recognition
Result dialog box after being scanned. Tap OK to confirm the result, and then
the vehicle information confirmation screen will appear on the tablet. If all the
vehicle information is correct, tap the icon on the middle of the screen to confirm
the VIN of the vehicle being tested. Tap OK to continue.
5. If the VIN/License number cannot be scanned, please manually enter it. Tap OK
to continue. Manually enter the license number and select a vehicle brand in the
vehicle information confirmation screen. Tap the icon on the middle of the
screen to confirm the VIN of the vehicle being tested. Tap OK to continue.
4.1.3.4 Manual Vehicle Selection
When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or
when the specific VIN is unknown, you can manually select the vehicle.
This mode of vehicle selection is menu-driven. Select the manufacturer icon on the
Vehicle Menu screen and the Select Diagnostic Type screen appears. Tap the Manual
Selection button. Select the vehicle information (e.g., the series, model, engine, type,
and emission) on the same screen. Tap Reset or ESC to reselect the vehicle information,
if needed.

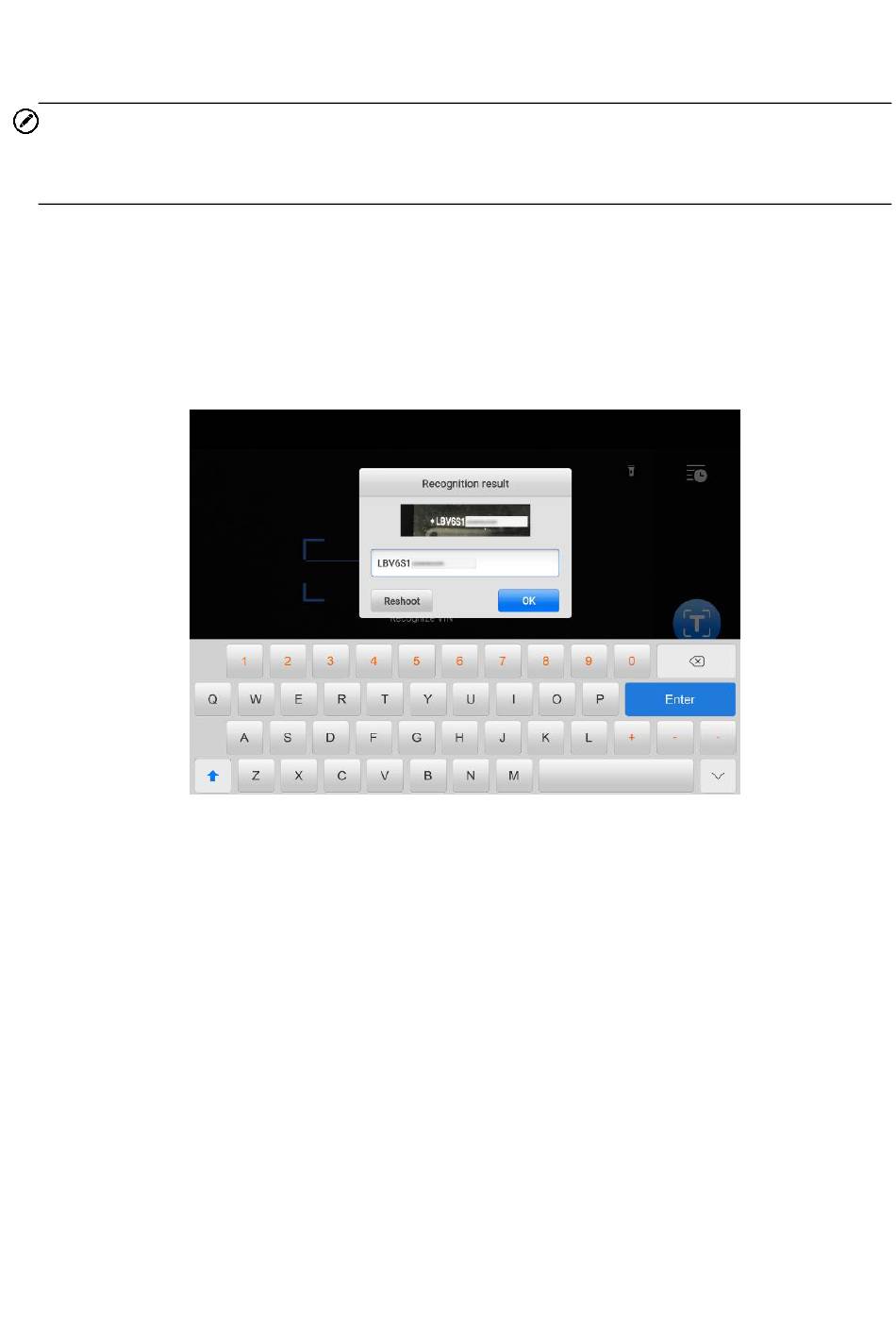

Figure 4-5 Scan VIN Code Screen
25
(Figure 4-3). The camera will launch.
