or USB.
B. If the VCI is unable to establish a communication link, a message will display.
Possible causes for the communication error include:

A vehicle system has been selected for diagnosis that is not supported by the
vehicle.

There is a loose connection.

There is a blown vehicle fuse.

The vehicle or the data cable has a wiring fault.

There is a circuit fault in the data cable or adapter.

The vehicle information entered is incorrect.
4.1.2 Getting Started
Prior to first use of the Diagnostics application, ensure the VCI is properly connected to
and is communicating with the tablet. See

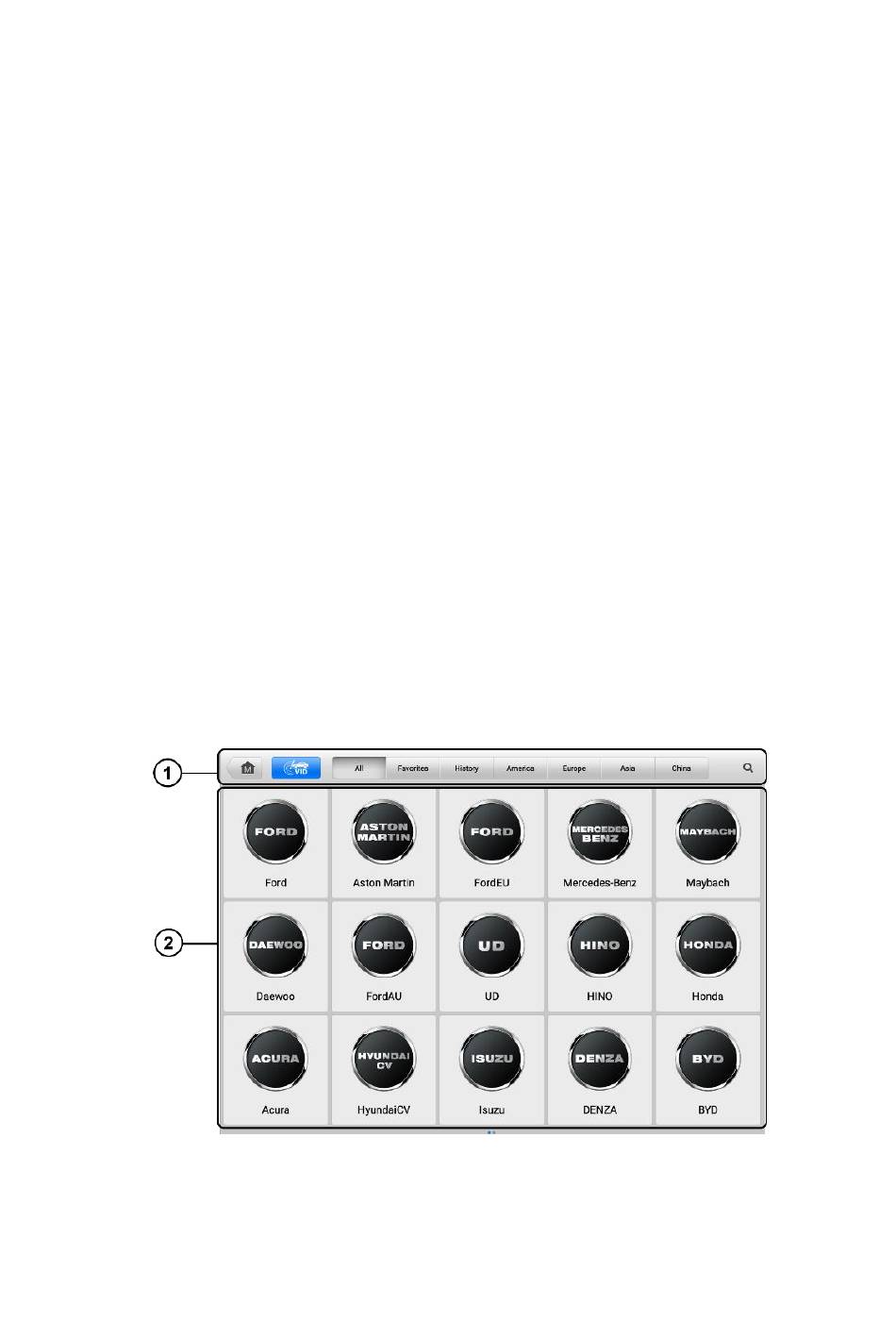

4.1.2.1 Vehicle Menu Layout
When the VCI is properly connected to the vehicle and the tablet, the platform is ready
to start vehicle diagnosis. Tap the Diagnostics application button on the MaxiSys Job
Menu, the Vehicle Menu will appear on the screen.
1. Top Toolbar Buttons
2. Automobile Manufacturer Buttons
VCI
Figure 4-2 Vehicle Menu Screen
21
Connection.
