Autel MaxiSys MS906 MAX Quick Reference Manual

Download this manual

Email: sales@autel.com

Web: www.autel.com

Thank you for purchasing this Autel tool. Our tools are manufactured to a high standard and — when used according to these instructions and

properly maintained — will provide years of trouble-free performance.

MaxiSys MS906 MAX

Quick Reference Guide

The MaxiSys system has two main components:

• MaxiSys Tablet — the central processor and monitor

for the system

• MaxiVCI V200 — the vehicle communication interface

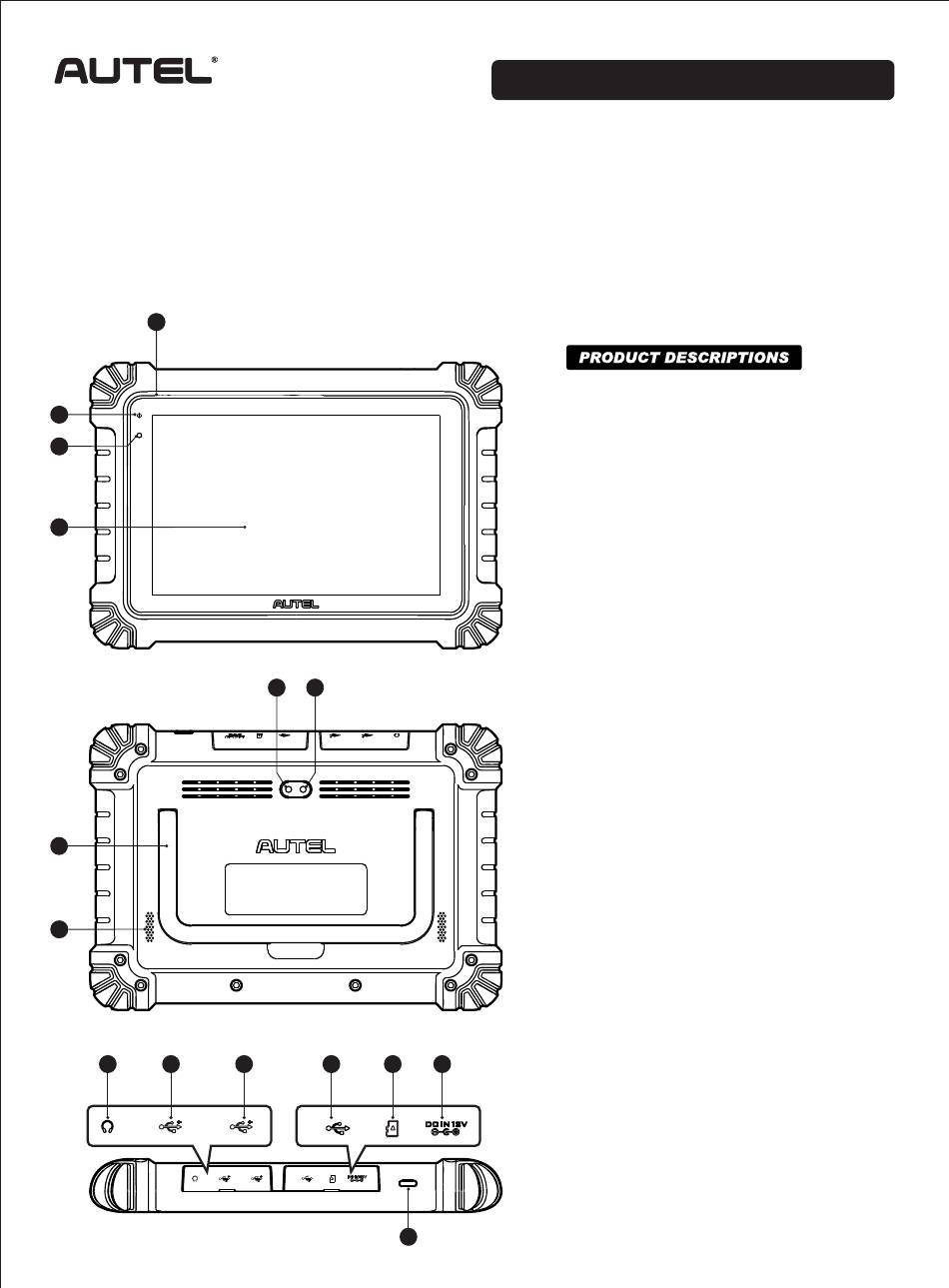

1. 10.1-inch TFT-LCD Capacitive Touchscreen

2. Ambient Light Sensor — detects ambient brightness.

3. Power LED

4. Built-in Microphone

5. Speaker

6. Collapsible Stand — extends from the back to allow

hands-free viewing of the tablet.

7. Rear Camera

8. Camera Flash

9. Headphone Jack

10. USB Port

11. USB Port

12. Mini USB Port

13. Mini SD Card Slot

14. DC Power Supply Input Port

15. Power/Lock Button — long press to turn on/off the

tablet, or short press to lock the screen.

MaxiSys MS906 MAX

Need help?

Do you have a question about the MaxiSys MS906 MAX and is the answer not in the manual?

Page 1 MaxiSys MS906 MAX Web: www.autel.com Thank you for purchasing this Autel tool. Our tools are manufactured to a high standard and — when used according to these instructions and properly maintained — will provide years of trouble-free performance. MaxiSys MS906 MAX The MaxiSys system has two main components: •...
Page 2 • Scan the QR code below to visit our website at Ensure the tablet has a charged battery or is connected to pro.autel.com. power supply using the supplied power adapter. • Create an Autel ID and register the product with its serial number and password.
Page 3 • Connect the tablet with the MaxiVCI V200 via either Blue- • Insert the MaxiVCI V200 into the vehicle's DLC, which is tooth or a USB Type-C cable to establish a communication. generally located under the vehicle dashboard. • When the MaxiVCI V200 is properly connected to the vehicle and the tablet, the VCI status button on the bottom bar of the screen will display a green badge at the corner, indicat- ing the tablet is ready to start vehicle diagnosis.
