Diagnostics Toolbar Buttons — see
1.
detailed descriptions of the operations of each button.
2. Main Section
Name Column — displays the parameters.

Check Box — tap the check box to the left of a parameter to select the item.
a)
Tap the check box again to deselect it.
Drop-down Menu — tap the drop-down menu to the right of the parameter
b)
to open a submenu, and view data display-mode options.
Value Column — displays the values of the parameters.

Unit Column — displays the units for the parameters. To change the Unit mode,

tap the Settings button in the top toolbar and select a required mode. See Unit.
Display Mode
There are four display modes available for data viewing, allowing you to view various
types of parameters in the mode best suited to represent the data.
Tap the drop-down menu to the right of a parameter to open a submenu. A total of 8
buttons will be displayed: The 4 buttons on the left represent different data display modes,
plus one Information button (active when additional information is available), one Add
to Custom Group button (tap to add the selected parameters to the custom group), one
Unit Change button (for switching the unit of displayed data), and one Trigger button
(tap to open the "Trigger Settings" window).
Each parameter displays the selected mode independently.
① Analog Gauge Mode — displays the parameters in gauge charts.
Table 4-2 Diagnostics Toolbar Buttons

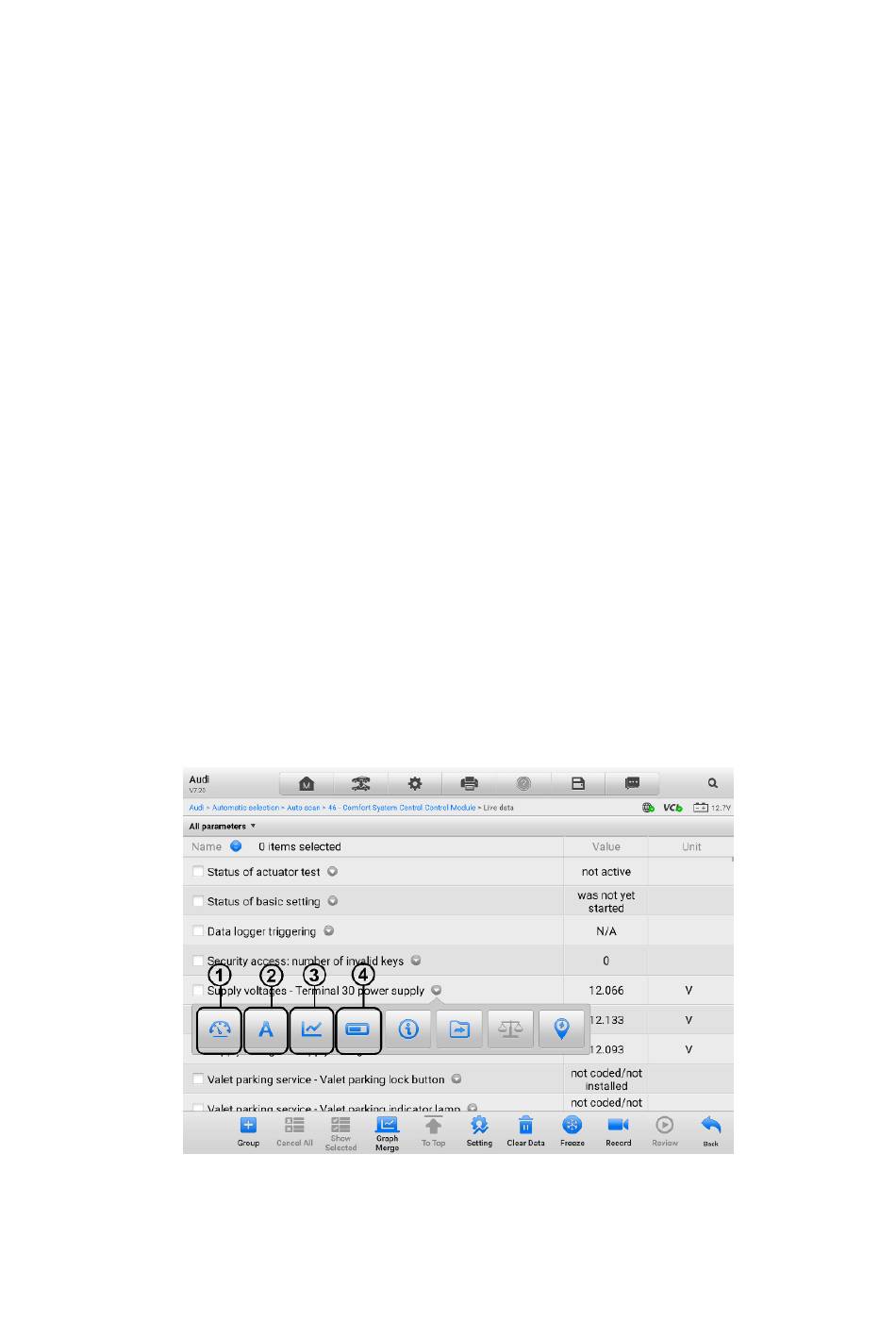

Figure 4-13 Display Mode Screen
