4.5 ECU Information

This function retrieves and displays the specific information for the tested control unit,
including unit type and version numbers.
Diagnostics Toolbar Buttons — see
1.
detailed descriptions of the operations of each button.
2. Current Directory Path
3. Status Information Bar
Main Section — the left column displays the item names; the right column displays
4.
the specifications or descriptions.
Function Button — in this case, only the ESC button is available. Tap it to exit after
5.
viewing.

4.6 Trouble Codes

4.6.1 Read Codes
This function retrieves and displays DTCs from the vehicle control system. The Read
Codes screen varies for each vehicle being tested. For some vehicles, freeze frame data
can also be retrieved for viewing.

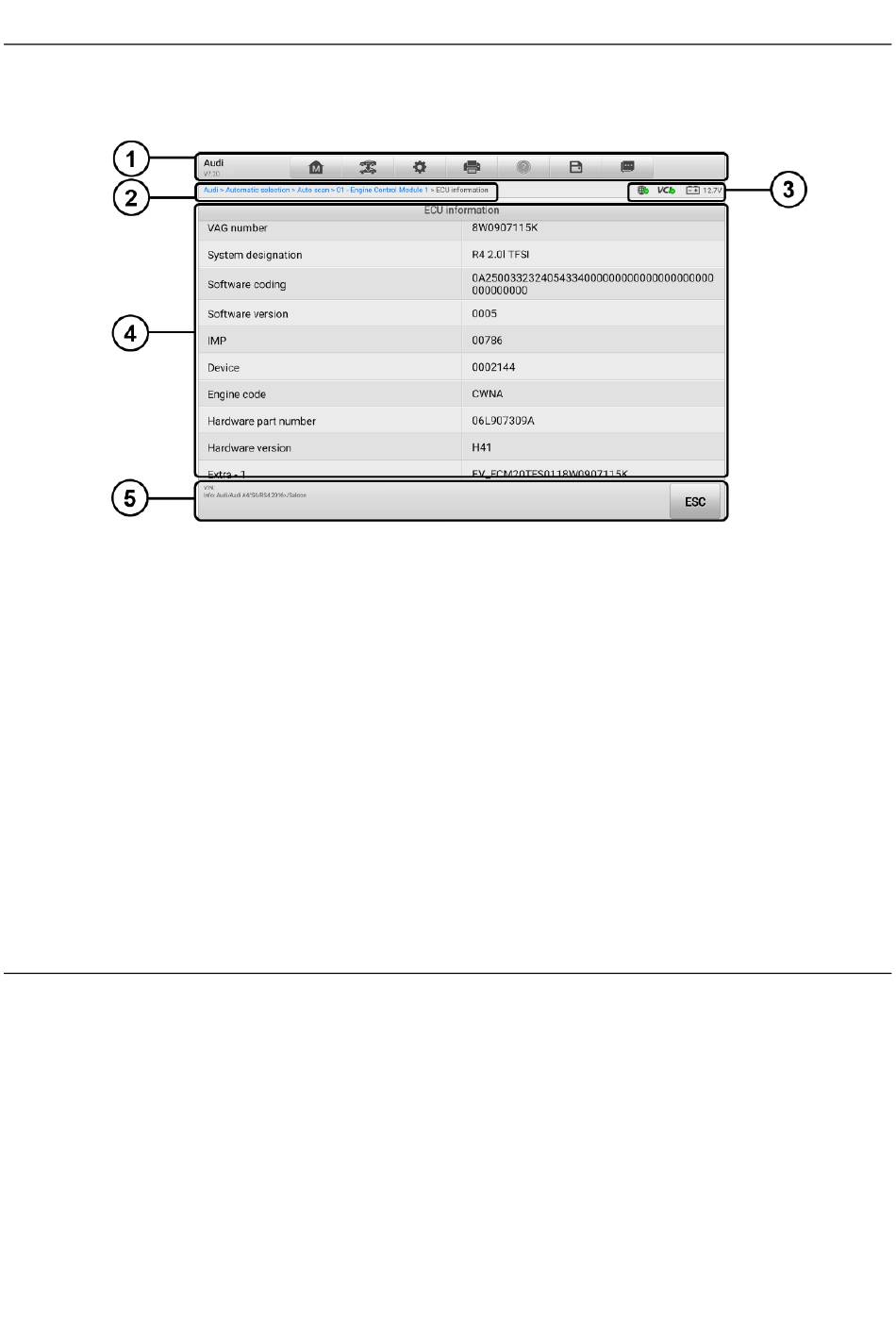

Figure 4-10 ECU Information Screen
Table 4-2 Diagnostics Toolbar Buttons
33
for
