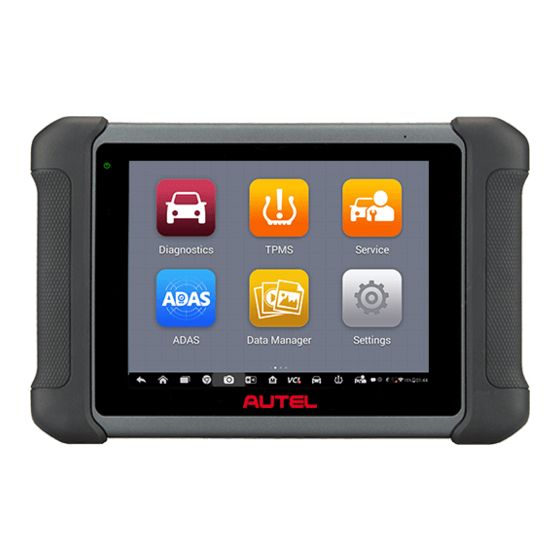

Autel MaxiSys MS906TS Manual

Hide thumbs Also See for MaxiSys MS906TS:
Table of Contents

Advertisement

Quick Links

Download this manual
Trademarks
Autel
,
MaxiSys
®
MaxiCheck
®
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in
China, the United States and other countries. All other marks are trademarks or
registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted,
in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing. Autel reserves the right to make changes at
any time without notice. While information of this manual has been carefully checked
for accuracy, no guarantee is given for the completeness and correctness of the
contents, including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct damages or for any special, incidental, or indirect
damages or for any economic consequential damages (including the loss of profits).
IMPORTANT: Before operating or maintaining this unit, please read this manual
carefully, paying extra attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
support@autel.com
For technical assistance in all other markets, please contact your local distributor.
,
MaxiDAS
,
®
®
MaxiScan
,
MaxiTPMS
®
i
,
MaxiRecorder
®
,
and
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiSys MS906TS and is the answer not in the manual?

Questions and answers

Related Manuals for Autel MaxiSys MS906TS

Summary of Contents for Autel MaxiSys MS906TS

  • Page 1 Autel will not be liable for any direct damages or for any special, incidental, or indirect damages or for any economic consequential damages (including the loss of profits).
  • Page 2 Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety.
  • Page 3 Safety Information Important Safety Instructions Do Not Turn the Volume Up Too Loud When Using Headphones Listening at high volumes that over-stimulate the ear for long periods of time may result in loss of hearing. SAFETY WARNINGS: Always perform automotive testing in a safe environment. ...

  • Page 4: Table Of Contents

    Contents USING THIS MANUAL ................1 CHAPTER 1 ..................... 1 ONVENTIONS 1.1.1 Bold Text....................1 1.1.2 Notes......................1 1.1.3 Important....................1 1.1.4 Hyperlink....................1 1.1.5 Procedure....................1 GENERAL INTRODUCTION ..............3 CHAPTER 2 ................3 YSTEM ISPLAY ABLET 2.1.1 Functional Description................3 2.1.2 Power Sources...................5 2.1.3 Technical Specifications................
  • Page 5 ..................25 EHICLE DENTIFICATION 4.3.1 Auto VIN Scan..................25 4.3.2 Manual VIN Input................... 26 4.3.3 Manual Vehicle Selection................27 4.3.4 Alternative Vehicle Identification............28 ...................... 28 AVIGATION 4.4.1 Diagnostics Screen Layout..............28 4.4.2 Screen Messages..................31 4.4.3 Making Selections...................32 ..................... 32 ......................32 IAGNOSIS 4.6.1 ECU Information..................
  • Page 6 6.1.1 Terminology.................... 68 ...................... 69 PERATIONS 6.2.1 Home...................... 70 6.2.2 Search Fix Features.................70 6.2.3 Ask......................70 6.2.4 My MaxiFix..................... 71 6.2.5 My Messages..................73 6.2.6 Support....................74 CHAPTER 7 SHOP MANAGER OPERATIONS............75 ....................76 EHICLE ISTORY 7.1.1 Historical Test Record................77 ...................78 ORKSHOP NFORMATION ..................79...
  • Page 7 ....................98 12.3 CCOUNT ................... 99 12.4 OMPLAINT ..................... 101 12.5 OGGING ....................102 12.6 OMMUNITIES ..................105 12.7 RAINING HANNELS .................... 105 12.8 FAQ D ATABASE CHAPTER 13 TRAINING OPERATIONS..............106 CHAPTER 14 REMOTE DESK OPERATIONS............107 ....................107 14.1 PERATIONS CHAPTER 15 QUICK LINK OPERATIONS..............109 CHAPTER 16...

  • Page 8: Chapter 1 Using This Manual

    Using This Manual Chapter 1 This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories. Conventions The following conventions are used.
  • Page 9 Using This Manual Conventions To use the camera:  Tap the Camera button. The camera screen opens. Focus the image to be captured in the view finder. Tap the blue circle. The view finder now shows the captured picture and auto-saves the taken photo.

  • Page 10: Chapter 2 General Introduction

    OE-level diagnostics, the MaxiSys MS906TS/MS906BT performs comprehensive vehicle diagnostics and analysis efficiently. With the integrated TPMS module, the MaxiSys MS906TS also provides comprehensive TPMS solutions. There are two main components to the MaxiSys system: MaxiSys System Display Tablet –...
  • Page 11 MaxiSys System Display Tablet Ambient Light Sensor – detects ambient brightness Microphone TPMS Service Symbol – indicates the position of the embedded TPMS antenna (for MaxiSys MS906TS only) The power LED displays different colors in response to the following scenarios: Green Illuminates green when the Display Tablet is charging and the ...

  • Page 12: Power Sources

    General Introduction MaxiSys System Display Tablet Figure 2- 3 Display Tablet Top View Mini SD Card Slot – holds the mini SD Card Mini USB OTG Port DC Power Supply Input Port – connects the 12 volt power adapter to charge.

  • Page 13: Technical Specifications

    General Introduction MaxiSys System Display Tablet Vehicle Power The Display Tablet can be powered from the cigarette lighter or other suitable power port on the test vehicle through a direct cable connection. The vehicle power cable connects to the DC power supply port on the top side of the display unit.

  • Page 14: Vci - Wireless Diagnostic Interface

    General Introduction MaxiSys System Display Tablet Item Description Operating Temp. 0 to 55°C (32 to 131°F) Storage Temp. -20 to 60°C (-4 to 140°F) Housing Strong plastic housing with protective rubber boot 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm Dimensions ( W x H x D (1.4”)

  • Page 15: Technical Specifications

    General Introduction VCI – Wireless Diagnostic Interface Lighting Push Button – presses to turn on the white LED in the vehicle data connector socket Power LED – indicates power and system status Green: illuminates solid green when powered on. Amber: flashes green and amber automatically when performing firmware update.

  • Page 16: Power Sources

    General Introduction VCI – Wireless Diagnostic Interface Operating Temperature 0°C to 50°C (ambient) Storage Temperature -20°C to 70°C (ambient) Dimensions ( 87.0 mm (3.43”) x 52.0 mm (2.05”) x24.5 mm L x W x H (0.96”) Weight 0.076 kg (0.168 lb.) Built-in Battery 3.7V Lithium Battery Light...

  • Page 17: Other Accessories

    General Introduction Accessory Kit Mitsubishi/ Benz-38 PSA-2 Fiat-3 Hyundai -12+16 2.3.2 Other Accessories Mini USB Cable Connects the Display Tablet to the PC or the VCI unit. AC/DC External Power Adapter Connects the Display Tablet to the external DC power port for power supply.

  • Page 18: Chapter 3 Getting Started

    MaxiSys – drags the inner ring to the top edge of the circle to enter the MaxiSys Job Menu. Camera – drags the inner ring to the left edge of the circle to launch the camera Figure 3- 1 Sample MaxiSys MS906TS Job Menu...

  • Page 19: Application Buttons

    Getting Started Powering Up Figure 3- 2 Sample MaxiSys MS906BT Job Menu Application Buttons Locator and Navigation Buttons Status Icons NOTE: The screen is locked by default when you first turn on the Display Tablet. It is recommended to lock the screen to protect the information in the system and reduce the power consumption.
  • Page 20 Configures your unit to receive remote support Remote using the TeamViewer application program. See Desk Remote Desk Operations on page 107. Launches Support platform which synchronizes Autel’s on-line service base station Support with the MaxiSys tablet. See Support Operations on page 97.

  • Page 21: Locator And Navigation Buttons

    Getting Started Powering Up Button Name Description Allows you to store and play technical tutorial and training videos about the device usage or Training vehicle diagnostic techniques. See Training Operations on page 106. Provides associated website bookmarks to allow quick access to product update, service, support Quick Link other information.

  • Page 22: System Status Icons

    Getting Started Powering Up Button Name Description Opens the camera with short press; takes and saves screenshot image with long press. The Camera saved files are auto-stored in the Data Manager application for later reviews. See Data Manager Operations on page 83. Display &...

  • Page 23: Powering Down

    Getting Started Powering Down By tapping on the bottom right corner, a Shortcuts Panel will be displayed, on which you are allowed to set various system settings of the tablet. Operations of each button on the panel are described in the table below: Table 3- 3 Shortcuts Panel Buttons NOTE: The shortcuts buttons will be highlighted when enabled, and dimmed when disabled.

  • Page 24: Reboot System

    Insert the included CD into the CD-ROM of the computer and open the CD folder. Double click on Autel Run.exe item. Click the MaxiSys Printer icon in the MaxiSys PC Suite screen. Select the installation language and the printer driver installation wizard will load momentarily.
  • Page 25 Getting Started Installing Computer Software computer network, either via WiFi or LAN. See 9.1.3 Printing Setting on page 88 for more information. Run the MaxiSys Printer program on the computer to open up the printer interface. Click Test Print to make sure the printer is working successfully. Tap the Print button on the toolbar.

  • Page 26: Chapter 4 Diagnostics Operations

    Diagnostics Operations Chapter 4 By establishing a data link to the electronic control systems of the vehicle being serviced through the VCI device, the Diagnostics application allows you to retrieve diagnostic information, view live data parameters, and perform active tests. The Diagnostics application can access the electronic control module (ECM) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more.

  • Page 27: Vci Connection

    Diagnostics Operations Establishing Vehicle Communication To connect to an OBD II vehicle  Insert the Vehicle Data Connector on the MaxiVCI V100 into the vehicle’s DLC, which is generally located under the vehicle dash. NOTE: The vehicle’s DLC is not always located under the dash; refer to the user manual of the test vehicle for additional connection information.
  • Page 28 Diagnostics Operations Establishing Vehicle Communication communication is about 164 feet (about 50 m); this means you can perform vehicle diagnosis freely around the workshop with greater convenience. If you use more than one VCI device to connect to the test vehicles, you can perform vehicle diagnosis on various vehicles conveniently, by pairing the Display Tablet separately to each of the VCI devices connected to the different test vehicles, via wireless BT, without the need to repeat the plugging and...

  • Page 29: No Communication Message

    Diagnostics Operations Establishing Vehicle Communication few seconds, and the Connection Mode LED on the MaxiVCI V100 illuminates solid green, indicating the connection between the devices is successful. The MaxiSys diagnostic platform is now ready to perform vehicle diagnosis. NOTE: When both the communication methods are applied at the same time, the MaxiSys system will use the USB communication as the default priority.

  • Page 30: Getting Started

    Diagnostics Operations Getting Started There is a loose connection.  There is a blown vehicle fuse.  There is a wiring fault on the vehicle or the adapter.  There is a circuit fault in the adapter.  Incorrect vehicle identification was entered. ...
  • Page 31 Diagnostics Operations Getting Started Top toolbar Buttons The operations of the Toolbar buttons at the top of the screen are listed and described in the table below: Table 4- 1 Top Toolbar Buttons Button Name Description Home Returns to the MaxiSys Job Menu. Touching this button opens a dropdown list;...

  • Page 32: Vehicle Identification

    Diagnostics Operations Vehicle Identification NOTE: The Update icon displayed on the upper right of the vehicle brand name indicates there is available update for the vehicle. Tap this icon to enter the Update application directly. Vehicle Identification The MaxiSys diagnostic system supports four methods for Vehicle Identification.

  • Page 33: Manual Vin Input

    Diagnostics Operations Vehicle Identification Figure 4- 2 Sample Vehicle Diagnostics Screen In some cases when users have selected the vehicle brand instead of performing Auto VIN Scan in the first place, the system still provides an option for vehicle VIN scan. Figure 4- 3 Sample Vehicle Selection Screen Select Automatic Selection and the system will proceed to acquire VIN information automatically or allow users to input the VIN manually.

  • Page 34: Manual Vehicle Selection

    Diagnostics Operations Vehicle Identification To perform Manual VIN Input  Tap the Diagnostics application button from the MaxiSys Job Menu. The Vehicle Menu displays. Tap the VIN Scan button on the top toolbar. Select Manual Input. Tap the input box and enter the correct VIN. Figure 4- 4 Manual VIN Input Tap Done.

  • Page 35: Alternative Vehicle Identification

    Diagnostics Operations Navigation 4.3.4 Alternative Vehicle Identification Occasionally, you may identify a test vehicle that the tester does not recognize; the database does not support, or has some unique characteristics that prevent it from communicating with the tester through the normal channels. In these instances, you are provided with the OBD direct entry, through which you can perform generic OBD II or EOBD tests.
  • Page 36 Diagnostics Operations Navigation Diagnostics Toolbar The Diagnostics Toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls. The table below provides a brief description for the operations of the Diagnostics Toolbar buttons: Table 4- 2 Diagnostics Toolbar Buttons Button Name...
  • Page 37 Diagnostics Operations Navigation Button Name Description Records the communication data information of the test vehicle. The saved data can be reported and sent to the technical center via the Data internet. Logging You can go to the Support application to follow up the processing progress, see 12.5 Data Logging page 101 for detailed information.

  • Page 38: Screen Messages

    Diagnostics Operations Navigation Tap the Data Logging button again to finish recording. A submission form will display to let you fill in the report information. Tap the Send button to submit the report form via the internet, a confirmation message displays when sending is successful. Status Information Bar The Status Information Bar at the top of the Main Section displays the following items:...

  • Page 39: Making Selections

    Diagnostics Operations Main Menu Warning Messages This type of messages informs you when completing the selected action may result in an irreversible change or loss of data. The typical example for this is the “Erase Codes” message. Error Messages Error messages inform you when a system or procedural error has occurred. Examples of possible errors include a disconnection or communication interruption due to certain reasons.
  • Page 40 Diagnostics Operations Diagnosis Auto Scan – starts auto scanning for all the available systems on the vehicle Control Units – displays a selection menu of all available control units of the test vehicle Auto Scan The Auto Scan function performs a comprehensive scanning over all the systems on the vehicle’s ECU in order to locate fault systems and retrieve DTCs.
  • Page 41 Diagnostics Operations Diagnosis Column 2 – displays the scanned systems Column 3 – displays the diagnostic marks indicating different conditions of the test result: -!-: Indicates that the scanned system may not support the code reading function, or there is a communication error between the tester and the control system.
  • Page 42 Diagnostics Operations Diagnosis Name Description Deletes codes. A warning message screen will display Quick Erase to inform you of possible data loss when this function is selected. Report Displays the diagnostic data in the report form. Saves the diagnostic session as a history record, this Save allows you to quickly restore access to the test systems.

  • Page 43: Ecu Information

    Diagnostics Operations Diagnosis Live Data – retrieves and displays live data and parameters from the  vehicle’s ECU. Active Test – provides specific subsystem and component tests. This  selection may appear as Actuators, Actuator Test, or Function Tests, etc., and the tests options vary depending on the manufacturer and model.

  • Page 44: Read Codes

    Diagnostics Operations Diagnosis Figure 4- 8 Sample ECU Information Screen Diagnostics Toolbar Buttons – see Table 4- 2 Diagnostics Toolbar Buttons on page 29 for detailed descriptions of the operations for each button. Main Section – the left column displays the item names; the right column shows the specifications or descriptions.

  • Page 45: Erase Codes

    Diagnostics Operations Diagnosis Figure 4- 9 Sample Read Codes Screen Diagnostics Toolbar Buttons – see Table 4- 2 Diagnostics Toolbar Buttons on page 29 for detailed descriptions of the operations for each button. Main Section Code Column – displays the retrieved codes from the vehicle. ...

  • Page 46: Live Data

    Diagnostics Operations Diagnosis Tap Erase Codes from the Function Menu. A warning message displays to inform you of data loss when this function is applied. Tap Yes to continue. A confirming screen displays when the operation is successfully done. Tap No to exit. Tap ESC on the confirming screen to exit Erase Codes.
  • Page 47 Diagnostics Operations Diagnosis Main Section Name Column – this column displays the parameter names.  Check Box - taps the check box at the left side of the parameter name to make selection of an item. Taps the check box again to deselect the item. Drop-down Button –...
  • Page 48 Diagnostics Operations Diagnosis Text Button – resumes Text Display Mode  Scale Button – changes the scale values, which are displayed  below the waveform graph. There are 4 scales available: x1, x2, x4 and x8. Zoom-in Button – taps once to display the selected data graph in ...
  • Page 49 Diagnostics Operations Diagnosis are described below: Back – returns you to the previous screen or exit the function. Record – starts recording the retrieved live data; the recorded data is then stored as a video clip in the Data Manager application for future reviews.
  • Page 50 Diagnostics Operations Diagnosis Setting – tapping this button opens a setting screen, which allows you to set the trigger mode, recording duration, and various threshold values for data recording, and make other controls. Figure 4- 11 Sample Setting Mode in Live Data There are four navigation buttons on top of the Setting mode screen.
  • Page 51 Diagnostics Operations Diagnosis Tap on the right side of the MIN button, and enter the required minimum value. Tap on the right side of the MAX button, and enter the required maximum value. Tap the ON/OFF button on the right side of the Buzzer Alarm button to turn it on or off.

  • Page 52: Active Test

    Diagnostics Operations Diagnosis Data screen. Tap the Record navigation button. Tap the > button on the right of Trigger Type bar and select ○ the required trigger mode. ○ Tap the > button on the right of Duration bar and select a length of time.

  • Page 53: Special Functions

    Diagnostics Operations Diagnosis Figure 4- 12 Sample Active Test Screen The functional buttons at the lower right corner of the Active Test screen manipulate the test signals. The operational instructions are displayed on the main section of the test screen. Simply follow the on-screen instructions and make appropriate selections to complete the tests.

  • Page 54: Service

    Diagnostics Operations Service The third part displays the current conditions of the vehicle control module being learned for comparison to the preconditions suggested by the second part. If the current condition of the control module is out of the suggested limit value, you must adjust the vehicle condition to meet the requirement.

  • Page 55: Function Descriptions

    Diagnostics Operations Service The most commonly performed service functions include: Oil Reset Service  TPMS Programming Service  EPB Service  ABS/SRS Services  SAS Calibration Service  DPF Regeneration Service  4.7.1 Function Descriptions This section describes the main functions for vehicle service: Oil Reset Service This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving...

  • Page 56: Generic Obd Ii Operations

    Diagnostics Operations Generic OBD II Operations Steering Angle Sensor (SAS) Service This service function allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
  • Page 57 Diagnostics Operations Generic OBD II Operations submenu of various protocols. A communication protocol is a standardized way of data communication between an ECM and a diagnostic tool. Global OBD may use several different communication protocols. Select a specific protocol under the Protocol option. Wait for the OBD II Diagnostic Menu to appear.

  • Page 58: Function Descriptions

    Diagnostics Operations Generic OBD II Operations 4.8.2 Function Descriptions This section describes the various functions of each diagnostic option: DTC & FFD When this function is selected, the screen displays a list of Stored Codes and Pending Codes. When the Freeze Frame data of certain DTCs are available for viewing, a snowflake button will display on the right side of the DTC item.
  • Page 59 Diagnostics Operations Generic OBD II Operations test is reported. If the pending fault does not occur again within 40 to 80 warm-up cycles, the fault is automatically cleared from memory. Test results reported by this service do not necessarily indicate a faulty component or system.

  • Page 60: Exiting Diagnostics

    Diagnostics Operations Generic OBD II Operations Live data can be displayed in various modes, see 4.6.4 Live Data on page 39 for detailed information. O2 Sensor Monitor This option allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
  • Page 61 Diagnostics Operations Exiting Diagnostics NOTE: Damage to the vehicle electronic control module (ECM) may occur if communication is disrupted. Make sure all connections, such as USB cable and wireless connection, are properly connected at all times during testing. Exit all tests before disconnecting the test connection or powering down the tool.

  • Page 62: Chapter 5 Tpms Service Operations

    The TPMS application is used to check the TPMS sensor conditions, program the MX-Sensor, perform the TPMS Relearn procedure and basic TPMS diagnostic functions. NOTE: The TPMS service operation is available for MaxiSys MS906TS only. Navigation Tap the TPMS application button from the MaxiSys Job, the Vehicle Menu will appear.
  • Page 63 TPMS Service Operations Navigation Figure 5- 2 Sample TPMS Service Menu Screen Top Toolbar Buttons Navigation Tab Main Section Functional Buttons Top Toolbar Buttons The top toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls. For more information, see Table 4- 2 Diagnostics Toolbar Buttons on page 13.

  • Page 64: Check Operations

    TPMS Service Operations Navigation pressure, temperature and battery status, and the specific relearn procedures. Functional Buttons The displayed functional buttons at this section of the screen varies depending on the stage of operations. They can be used to trigger the TPMS sensor, create sensor IDs, program MX-Sensor, read and clear codes, return to the previous screen or exit the function.
  • Page 65 TPMS Service Operations Check Operations Column 6 – displays the sensor battery condition NOTE: You can choose a unit on the table header according to your preference.  To check TPMS sensor Tap Check Tab. Tap the desired wheel position on the vehicle thumbnail. Hold the Display Tablet with its top right corner (with the TPMS service symbol) close to the tire sidewall near the valve stem, and then press the Trigger button.

  • Page 66: Programming Operations

    The programming function is used to program the sensor data to the MX-Sensor and replace the faulty senor (poor battery life or malfunction). The MaxiSys MS906TS is easy to use with a proven efficiency and guaranteed accurate results. There are four options available when programming MX-Sensor using the Display Tablet: Copy by Activation, Copy by OBD, Auto Create, and Manual Create.

  • Page 67: Copy By Activation

    TPMS Service Operations Programming Operations 5.3.1 Copy by Activation This function allows user to bypass OBD II and automatically write in the retrieved original sensor data to the MX-Sensor. It is used after the original sensor is triggered. Figure 5- 5 Sample Copy by Activation Function Main Screen To copy by activation ...

  • Page 68: Copy By Obd

    TPMS Service Operations Programming Operations Figure 5- 6 Sample Copy by Activation Function Screen The programed sensor ID will appear on Column 2. 5.3.2 Copy by OBD This function allows users to write the saved sensor information into MX-Sensor after performing Read IDs from Vehicle in Relearn function. Figure 5- 7 Sample Copy by OBD Function Main Screen To copy by OBD ...

  • Page 69: Auto Create

    TPMS Service Operations Programming Operations marks with the sensor IDs will appear on the table in Programming screen. Select the specific wheel on the screen, and then tap Copy by OBD button. Place the proper MX-Sensor near the top right of the Display Tablet, and tap OK to start programming the saved sensor information to the MX-Sensor.

  • Page 70: Relearn Operations

    TPMS Service Operations Programming Operations To manual create  Tap the Programming tab. Select the specific wheel on the screen. Tap Manual Create button. Enter the characters in the prompted screen. Tap Done to finish and save the sensor ID, or No to exit. NOTE: Sensors from different manufacturers may have different ID character length limits.

  • Page 71: Obd Ii Relearn

    TPMS Service Operations Relearn Operations Figure 5- 8 Sample Relearn Function Main Screen The OEM sensor information and specification, and relearn procedure for each vehicle will display on the right side of the screen. Please read the relearn procedure carefully before performing the relearn function. To perform TPMS Relearn function ...

  • Page 72: Read Ids From Vehicle

    TPMS Service Operations Relearn Operations 5.4.2 Read IDs from vehicle This function will read sensor IDs from the test vehicle directly. To read IDs from vehicle  Tap Read IDs from vehicle in the Relearn screen. The Display Tablet will display the sensor IDs and positions for you to view.

  • Page 73: Chapter 6 Maxifix Operations

    MaxiFix Operations Chapter 6 The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
  • Page 74 MaxiFix Operations Navigation The Main Screen – located at the center of the screen displaying content based on the vehicle attributes and keywords specified. The tabs on the main screen vary in accordance with the section selected on the Navigation Menu, allowing you to switch between functions. The Navigation Menu –...

  • Page 75: Terminology

    MaxiFix Operations Navigation 6.1.1 Terminology MaxiFix Tip A MaxiFix Tip provides practical information of real fix of a specific vehicle repair issue with detailed descriptions. It is combined with proven fix and vehicle specific data, and filed into an all-in-one information source to provide you with quick and easy repair solutions.

  • Page 76: Operations

    MaxiFix Operations Operations OBDII Fault Codes description and reference – helps in diagnostic assessment by making clear the nature of an automotive problem so that beginner and advanced technicians can make effective repairs Real Fix Tips – provides repair tips from actual shop practices and are presented in an easy to understand Complaint, Cause, Correction format.

  • Page 77: Home

    MaxiFix Operations Operations to your activities in the Question section. Support – opens the FAQ page, or a message box for contacting  Customer Service by email. 6.2.1 Home Home is the first option on the Navigation Menu at the bottom of the screen. Tapping it opens your MaxiFix home page.

  • Page 78: My Maxifix

    MaxiFix Operations Operations If not already done, click Select Vehicle on the Header to specify the vehicle you are asking about. Click Ask on the Navigation Menu at the bottom of the screen to open the Ask page. On the Ask page find Ask for Help, fill in the following sections to ask a question.
  • Page 79 Marked Posts – opens a list with links to Tips and discussions that you  are actively participating in. My Profile – allows you to view your Autel account information including:  your Autel ID, personal information, MaxiFix score, phone number and register time, and edit your portrait.

  • Page 80: My Messages

    MaxiFix Operations Operations View Profile Information You can view your personal profile by clicking on your account ID or “My Profile” in My MaxiFix section or edit portrait where applicable, and visit other community members’ profile by clicking their portrait. Information included in your profile determines how you are presented to the community, and what type of information will be sent to you from the community.

  • Page 81: Support

    MaxiFix Operations Operations Close a Question When a repair question that you've posted to the community is resolved, you are encouraged to write down the case as a way to share a good solution. This will help the other MaxiFix members to find useful information for practical fix. To close a question, you need to select the question’s response message from the message list on “My Messages”...

  • Page 82: Shop Manager Operations

    Shop Manager Operations Chapter 7 The Shop Manager application helps you to manage the workshop information, customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service. There are three main functions available: Vehicle History ...

  • Page 83: Vehicle History

    Shop Manager Operations Vehicle History Button Name Description Touching this button opens the Vehicle History Vehicle screen which displays the correlated test vehicle History records. Done Completes editing and saves the file. Vehicle History This function stores records of test vehicle history, including vehicle information and the retrieved DTCs from previous diagnostic sessions, and displays all information in an easy-to-check table list, on which you can view summarized details and manually input other information about the test...

  • Page 84: Historical Test Record

    Shop Manager Operations Vehicle History Tap the Diagnostics button at the bottom of the thumbnail of a vehicle record item. Or, Select a vehicle record item by tapping the thumbnail. A Historical Test record sheet displays, check the recorded information of the recorded test vehicle, and tap the Diagnostics button on the upper right corner.

  • Page 85: Workshop Information

    Shop Manager Operations Workshop Information To edit the Historical Test record sheet  Tap the Shop Manager application on the MaxiSys Job Menu. Select Vehicle History. Select the specific vehicle history record thumbnail from the main section. The Historical Test record sheet displays. Tap the Edit button to start editing.

  • Page 86: Customer Manager

    Shop Manager Operations Customer Manager Figure 7- 3 Sample Workshop Information Sheet To edit the Workshop Information sheet  Tap the Shop Manager application on the MaxiSys Job Menu. Select Workshop Information. Tap the Edit button on the top toolbar. Tap on each field to input the appropriate information.

  • Page 87: History Notes

    Shop Manager Operations Customer Manager □ + photo frame beside the Name chart to add a photo. A Tap the sub menu displays, select Take Photo to take a new photo for the account, or select Choose Photo to choose from the existing files. Some customers may have more than one vehicle for service;...
  • Page 88 Shop Manager Operations Customer Manager notes and photos, to keep multi-media work logs for the associated customer account, which can be very helpful when dealing with repeat customers. Keeping notes for each vehicle serviced for each customer will keep you always on track and well organized in business.
  • Page 89 Shop Manager Operations Customer Manager Table 7- 2 Function Buttons in History Notes Button Name Description Back Returns to the previous screen. Delete Touching this button deletes the selected note. Quickly locates the required note by entering Search the note title. Touching this button to cancel edit or file Cancel search.

  • Page 90: Chapter 8 Data Manager Operations

    Data Manager Operations Chapter 8 The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are six types of information files to be viewed or played back.
  • Page 91 Data Manager Operations Operations Figure 8- 2 Sample Image Database Screen Toolbar Buttons – used to edit, print and delete the image files. See Table 8- 1 Toolbar Buttons in JPG Database on page 84 for detailed information. Main Section – displays the stored images. Table 8- 1 Toolbar Buttons in JPG Database Button Name...

  • Page 92: Pdf Files

    Data Manager Operations Operations Select Image to access the JPG database. Select an image to display it in full screen. Tapping the screen once displays the editing toolbar. Tap the Info button to open a window displaying the image information. Tap the Edit button on the top right corner of the window.

  • Page 93: Apps Manager

    Data Manager Operations Operations On the Review Data main screen, select a record file to playback. Figure 8- 3 Sample Data Playback Screen Drop-down Toolbar – taps the button at the top center of the screen to open the Drop-down Toolbar Main Section –...

  • Page 94: Chapter 9 Settings Operations

    Settings Operations Chapter 9 Selecting Settings application opens a setup interface, on which you can adjust default setting and view information about the MaxiSys system. There are seven options available for the MaxiSys system settings: Unit  Language  Printing Setting ...

  • Page 95: Printing Setting

    Internet. It is highly recommended to keep this function on all the time, so you won’t miss out any new update for MaxiSys or event from Autel. Internet access is required for receiving on-line messages. To enable the Notification Center function ...

  • Page 96: About

    Settings Operations Operations Tap the Home button on the top left corner to return to the MaxiSys Job Menu. Or select another setting option for the system setup. When the Notification Center function is turned on, and new messages are received by the MaxiSys device, a notification message displays on the MaxiSys Job Menu.
  • Page 97 Settings Operations Operations right side of the screen, then the App Switcher icon shows. Short pressing the App Switcher icon opens a control panel: Tapping a specific app shortcut button enables you to switch directly to  the selected application screen. Long pressing a specific app shortcut button displays the app menu, on ...

  • Page 98: Chapter 10 Update Operations

    MaxiSys System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application (See 9.1.4 Notification Center page 88 for details). Figure 10- 1 Sample Update Screen – for MaxiSys MS906TS...
  • Page 99 Update Operations Operations Figure 10- 2 Sample Update Screen – for MaxiSys MS906BT Navigation and Controls Home Button – returns to the MaxiSys Job Menu.  Update All – updates all available updates.  Diagnostics Tab – displays all available vehicle diagnostic software. ...
  • Page 100 Update Operations Operations window. Right Column – according to the operation status of each software item, the  button displays differently. Tap Update to update the selected item. Tap Pause to suspend the updating procedure. Tap Continue to go on updating the suspended update. To update the diagnostic software and TPMS service software ...

  • Page 101: Chapter 11 Vci Manager Operations

    VCI Manager Operations Chapter 11 This application allows you to pair up the Display Tablet with the VCI device, check the communication status, and update the VCI software and TPMS service firmware. Figure 11- 1 Sample VCI Manager Screen Connection Mode – there are three connection modes available for selection. The connection state is displayed alongside.

  • Page 102: Update

    VCI Manager Operations BT Pairing sufficient battery level or is connected to an AC/DC power supply. To pair the VCI device with the Display Tablet  Power on the Display Tablet. Insert the 16-pin vehicle data connector of the MaxiVCI V100 to the vehicle data link connector (DLC).

  • Page 103: Tpms Module Update

    11.3 TPMS Module Update Before update the TPMS module in the Display Tablet, please make sure the Display Tablet network connection is stable. NOTE: This option is available for MaxiSys MS906TS only. To update the TPMS Module  Power on the Display Tablet.

  • Page 104: Chapter 12 Support Operations

    On the Sign In page, input your account ID and other information to log in, if you already have an account. If you are a new member to Autel and do not have an account yet, click the Create Autel ID button on the left side.

  • Page 105: Support Screen Layout

    User Info, Device Info, Update Info and Service Info. Personal Info The User Info and Device Info are both included under the Personal Info section. User Info – displays detailed information of your registered on-line Autel ...

  • Page 106: User Complaint

    Service Info The Service Info section displays a detailed record list of the device’s service history information. Every time the device has been sent back to Autel for repair, the device’s serial number and the detailed repair information, such as the fault type, changed components, or system reinstallation, etc., will be...
  • Page 107 Support Operations User Complaint Option Bar Period Filter – displays only the complaint records within the  defined period on the list Status Filter – displays the corresponding complaint records  according to the selected case status New Complaint Button – starts a new complaint case. ...

  • Page 108: Data Logging

    Select the required processing time on the last section according to the urgency of the case. Tap Submit to send the completed form to Autel’s online service center, or tap Reset to refill it. The submitted complaints will be carefully read and handled by the service personnel, and the respond speed may depend on the processing time you’ve...

  • Page 109: Communities

    The Communities section launches and synchronizes with the Technical Forums on Autel’s official website www.autel.com, where you are allowed to discuss technical topics or share information with, as well as ask for technical advices or offer technical supports to all other members in Autel’s online support communities.
  • Page 110 Support Operations Communities Figure 12- 4 Sample Communities Home Screen To start a discussion  Tap Start a discussion on the Communities Home screen. A list of the major forums is displayed. Select a desired group according to the subject you are about to discuss.
  • Page 111 Support Operations Communities Browse through all the posts by sliding the screen up and down. Tap Go to original post when reaching the end of the discussion to return to the first post. Tap Reply to reply a specific post, or tap Reply to original post to join and continue the whole discussion.

  • Page 112: Training Channels

    12.8 FAQ Database The FAQ section provides you comprehensive and abundant references for all kinds of questions frequently asked and answered about the use of Autel’s online member account, and shopping and payment procedures. Account – displays questions and answers about the use of Autel’s ...

  • Page 113: Chapter 13 Training Operations

    The application also allows you to download or watch more associated videos online, by providing quick links to Autel’s online video database. Figure 13- 1 Sample Training Application Screen Navigation Buttons –...

  • Page 114: Chapter 14 Remote Desk Operations

    You can use the application to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiSys tablet on their PC via the TeamViewer software.
  • Page 115 Remote Desk Operations Operations Your partner must install the Remote Control software to his/her computer by downloading the TeamViewer full version program online (http://www.teamviewer.com), and then start the software on his/her computer at the same time, in order to provide support and take control of the Display Tablet remotely.

  • Page 116: Chapter 15 Quick Link Operations

    Quick Link Operations Chapter 15 The Quick Link application provides you with convenient access to Autel’s official website and many other well-known sites in automotive service, which offers you abundant information and resources, such as technical help, knowledge base, forums, training, and expertise consultations, etc.

  • Page 117: Chapter 16 Oscilloscope Operations

    Please download the latest user manual for Autel MaxiScope from www.autel.com. 16.1 Safety Information Follow these instructions to reduce the risk of injury from electric shock and prevent equipment damage.
  • Page 118 110. Product Maintenance The product contains no user-serviceable parts. Repair, servicing and calibration require specialized test equipment and must only be performed by Autel Tech Support or an approved service provider. DANGER: To prevent injury or death, do not use the product if it appears to be damaged ...

  • Page 119: Glossary

    Oscilloscope Operations Glossary 16.2 Glossary AC/DC Control Each channel can be set to either AC coupling or DC coupling. With DC coupling, the voltage displayed onscreen is equal to the true voltage of the signal with respect to ground. With AC coupling, any DC component of the signal is filtered out, leaving only the variations in the signal for the AC component.
  • Page 120 Oscilloscope Operations Glossary Time Base The time base controls the time interval across the scope display. Voltage Range The voltage range is the range between the maximum and minimum voltages that can be accurately captured by the oscilloscope. Sinusoidal Waveform This term describes the waveform characteristics typically found in circuits with large inductance and capacitance, and often referred to as an AC signal.

  • Page 121: Maxiscope Module

    Oscilloscope Operations MaxiScope Module Figure 16- 2 Sample Square Waveform Peak to peak voltage This term indicates the difference in voltage between the minimum and maximum voltages occurring in the waveform. 16.3 MaxiScope Module The MaxiScope Automotive Oscilloscope tool kit is optional and available for purchase along with the MaxiSys package.
  • Page 122 Oscilloscope Operations MaxiScope Module Figure 16- 3 Front, Rear, and Top View USB Port Connector Input Channel A/B/C/D LED Indicator Light – lights up when powered on, blinks when communicating, and shimmers when error occurs Warning Triangle – indicates potential safety hazard that exists on the indicated connections, and appropriate precautions should be taken.
  • Page 123 Oscilloscope Operations MaxiScope Module Technical Specifications Main Features Description Vertical resolution 12 bits Channels Bandwidth 20MHz Accuracy Voltage: 1%; Time: 50ppm Sensitivity 10mV/div to 20V/div Input Ranges (full scale) ±50mV to ±100V in 11 ranges Input Impedance 1MΩ in parallel with 22pF Input Type Single-ended, BNC connector Input Coupling...

  • Page 124: Screen Layout And Operations

    Oscilloscope Operations Screen Layout and Operations General Description PC Interface USB 2.0 – cable supplied Power Requirements Powered from USB port Compliance FCC (EMC), CE (EMC and LVD), RoHS Warranty 1 year NOTE*: Reduced to 20MS/s if channels A and B, or C and D, are enabled. 16.4 Screen Layout and Operations The Oscilloscope application works as a signal processing program that displays the shape of electrical signals onscreen with a live graph showing...

  • Page 125: Top Toolbar

    Oscilloscope Operations Screen Layout and Operations Top Toolbar – used for configurations of various settings and operations of the scope Functional Buttons on the top – used for configurations of channel activation, measurement scale and trigger settings Measurement Grid – displays measurements of voltage against time Functional Buttons at the bottom –...
  • Page 126 Oscilloscope Operations Screen Layout and Operations Button Name Description Tapping this button opens a submenu, on which displays 5 options allowing you to save, record and plays back the waveform data. Tap Save current page to take a screenshot  image.
  • Page 127 Oscilloscope Operations Screen Layout and Operations Tap the desired option on the right column to enable the math channel in the channel list. The Math Channel displays on the MaxiScope screen. Probe A probe is any transducer, measuring device or other accessory that you connect to an input channel of your MaxiScope module.

  • Page 128: Functional Buttons

    Oscilloscope Operations Screen Layout and Operations alongside. Tap Yes and the selected reference waveform will appear on the scope screen. Figure 16- 6 Recall Reference Waveform Window 16.4.2 Functional Buttons This group of buttons is used for configurations of channel activation, measurement scale and trigger settings, the operations of which are described below: Channel Control Buttons A/B/C/D –...

  • Page 129: Measurement Grid

    Oscilloscope Operations Screen Layout and Operations point. 16.4.3 Measurement Grid The 2 control features - Voltage per division and Time per division – enable the users to adjust the scope settings to suit the particular test measurement. Figure 16- 7 Sample Measurement Grid Voltage per division –...

  • Page 130: Measurement Rulers

    Oscilloscope Operations Screen Layout and Operations Adjust the voltage scale of the selected channel with the typical 2-finger zoom gestures. The 0 volts is hinted with a pointer reference line. Slide the pointer line up and down to move and view different areas of the scale. Tap once on the screen area outside of the Y-axis to finish the voltage scale adjustment.

  • Page 131: Functional Buttons

    Oscilloscope Operations Screen Layout and Operations Figure 16- 8 Measurement Rulers Display 16.4.5 Functional Buttons This group of buttons includes trigger setting buttons allowing you to set trigger source and trigger mode, a Time base button for adjustment, and a Measurement button with options for various measurement types.

  • Page 132: Troubleshooting

    Oscilloscope Operations Troubleshooting Auto Mode – configures the trigger to occur every time when the scope captures the signal waveforms by the preset trigger point. The scope continues to draw the waveforms even when the signal is not in the trigger point range. Main Time Base –...

  • Page 133: Maxiscope Firmware Update

    16.6 MaxiScope Firmware Update The operating software of the MaxiScope is continuously being developed, and the update package can be downloaded free from the MaxiScope product webpage on Autel’s website: http://www.autel.com. To update the MaxiScope firmware  Install the CD provided with the MaxiScope tool kit into the CD-ROM of the computer.

  • Page 134: Chapter 17 Digital Inspection Operations

    Digital Inspection Operations Chapter 17 The Digital Inspection application configures the Display Tablet to operate as a digital video scope by simply connecting the tablet to a Digital Inspection Camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

  • Page 135: Additional Accessories

    Digital Inspection Operations Additional Accessories 17.1 Additional Accessories The Digital Inspection Camera and its fittings are the additional accessories. Both sizes (8.5 mm and 5.5 mm) of the imager head are optional and available for purchase along with the standard MaxiSys tool kit. Digital Inspection Camera Figure 17- 1 Digital Inspection Camera Removable Imager Head Cable –...
  • Page 136 Digital Inspection Operations Additional Accessories Imager Head Accessories Figure 17- 2 8.5mm Imager Head Accessories Magnet – picks up small metal objects, such as dropped rings or screws Hook – unclogs obstacles and picks up wires in the pipes or confined areas Mirror –...
  • Page 137 Digital Inspection Operations Additional Accessories Slip the end of the accessory over the imager head and then fix the accessory. For 5.5mm Imager Head The two accessories, including the Magnet and Mirror (Figure 17- 3), can be attached to the Imager Head with the same manner described below: Hold the accessory and the imager head.

  • Page 138: Technical Specifications

    Digital Inspection Operations Operations Screw the thread part of the accessory over the imager head to fix the accessory. 17.1.1 Technical Specifications Table 17- 1 Technical Specifications Item Description Optimal 1" to 14" (2.54cm to 35.56cm) with 8.5mm diameter imager head Viewing Distance 3/8"...
  • Page 139 Digital Inspection Operations Operations To take pictures using the Digital Inspection application  Connect the Imager Head Cable to the USB port on the top side of the Display Tablet. If not already done, power up the Display Tablet. Tap the Digital Inspection application on the MaxiSys Job Menu. The Digital Inspection application interface displays, showing a camera operating screen.
  • Page 140 Digital Inspection Operations Operations Tap the red circle again to stop recording. The recorded video is automatically saved to the system Gallery. Tap the thumbnail image on the top right corner to review the recorded video. Tap the Play button to play the video. 10.

  • Page 141: Chapter 18 Maintenance And Service

    Maintenance and Service Chapter 18 To ensure that the MaxiSys diagnostic tablet and the combined VCI unit perform at their optimum level, we advise that the product maintenance instructions covered in this section is read and followed. 18.1 Maintenance Instructions The following shows how to maintain your devices, together with precautions to take.

  • Page 142: Troubleshooting Checklist

    Your device may have not been connected to the charger properly.  Check the connector. NOTE: If your problems persist, please contact Autel’s technical support personnel or your local selling agent. 18.3 About Battery Usage Your tablet is powered by a built-in Lithium-ion Polymer battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your tablet’s autonomy due to...

  • Page 143: Service Procedures

    Maintenance and Service About Battery Usage Do not use a damaged battery charger.  Do not disassemble or open crush, bend or deform, puncture or shred.  Do not modify or remanufacture, attempt to insert foreign objects into the  battery, expose to fire, explosion or other hazard.
  • Page 144  Repair Service If it becomes necessary to return your device for repair, please download the repair service form from www.autel.com, and fill in the form. The following information must be included: Contact name  Return address ...

  • Page 145: Chapter 19 Compliance Information

    Compliance Information Chapter 19 FCC Compliance FCC ID: WQ8MAXISYSMS906TS (for MaxiSys MS906TS) FCC ID: WQ8MAXISYSMS906BT (for MaxiSys MS906BT) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 146 Compliance Information Important Information the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network.

  • Page 147: Chapter 20 Warranty

    Chapter 20 12-Month Limited Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiSys Diagnostic Device, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material...

This manual is also suitable for:

Maxisys ms906bt

Table of Contents

Save PDF
