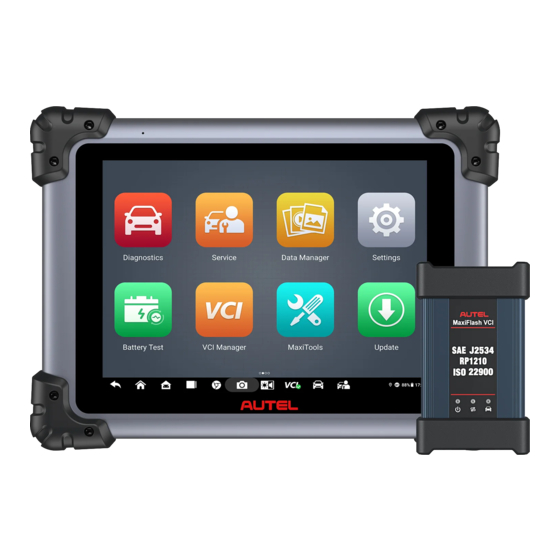

Autel MaxiSys Elite II Pro Manual
  1. Manuals
  2. Brands
  3. Autel Manuals
  4. Diagnostic Equipment
  5. MaxiSys Elite II Pro
  6. Manual

Autel MaxiSys Elite II Pro Manual

Hide thumbs Also See for MaxiSys Elite II Pro:
Table of Contents

Advertisement

Quick Links

Download this manual
Trademarks
®
®
Autel
, MaxiSys
, MaxiDAS
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in China, the United
States, and other countries. All other marks are trademarks or registered trademarks of their
respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted in any
form or by any means electronic, mechanical, photocopying, recording, or otherwise without
the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While information of
this manual has been carefully checked for accuracy, no guarantee is given for the
completeness and correctness of the contents, including but not limited to the product
specifications, functions, and illustrations.
Autel will not be liable for any direct, special, incidental, or indirect damages, or for any
economic consequential damages (including lost profits) as a result of using this product.
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully, paying extra
attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
support@autel.com
For details, please refer to the
®
®
, MaxiScan
, MaxiTPMS
Service Procedures
i
®
, MaxiRecorder
in this manual.
®
®
, and MaxiCheck

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiSys Elite II Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Autel MaxiSys Elite II Pro

Summary of Contents for Autel MaxiSys Elite II Pro

  • Page 1 Autel will not be liable for any direct, special, incidental, or indirect damages, or for any economic consequential damages (including lost profits) as a result of using this product.

  • Page 2: Safety Instructions

    Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you in regards of all possible hazards. You must be certain that any condition or...
  • Page 3 DANGER When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life.

  • Page 4: Table Of Contents

    CONTENTS ......................AFETY NFORMATION ...................... AFETY NSTRUCTIONS 1 USING THIS MANUAL ...................... 1 1.1 C ......................1 ONVENTIONS 2 GENERAL INTRODUCTION ..................... 3 2.1 M ......................3 ABLET 2.2 M VCI ......................7 LASH 2.3 A ...................... 10 CCESSORIES 3 GETTING STARTED ....................... 12 3.1 P ........................
  • Page 5 6.6 I (IMMO) S ................... 74 MMOBILIZER ERVICE 6.7 S (SAS) S ..............74 TEERING NGLE ENSOR ERVICE 7 BATTERY TEST ......................76 7.1 T ....................76 REPARATION 7.2 I ....................... 77 VEHICLE 7.3 O ....................82 VEHICLE 8 OEM AUTHORIZATION ....................84 9 SETTINGS ........................
  • Page 6 17 QUICK LINK ........................ 111 18 REMOTE DESKTOP ....................112 18.1 O ......................112 PERATIONS 19 USER FEEDBACK ...................... 114 20 AUTEL USER CENTER ....................115 21 MAINTENANCE AND SERVICE ................. 117 21.1 M ................. 117 AINTENANCE NSTRUCTIONS 21.2 T ................

  • Page 7: Using This Manual

    Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. 1.1 Conventions The following conventions are used: 1.1.1 Bold Text Bold text is used to highlight selectable items such as buttons and menu options. Example: ...
  • Page 8 1.1.3 Hyperlinks Hyperlinks or links that take you to other related articles, procedures, and illustrations are available in electronic documents. Blue italic text indicates a selectable hyperlink and blue underlined text indicates a website link or an email address link. 1.1.4 Illustrations The illustrations used in this manual are samples and the actual interface may vary for each vehicle being tested.

  • Page 9: General Introduction

    LED display with a super sensitive capacitive touchscreen, combined with an optimized array of powerful applications, and the best possible coverage of OE-level diagnostics, the MaxiSys Elite II Pro performs every job from comprehensive vehicle diagnostics and analysis to advanced ECU programming quickly and efficiently.
  • Page 10 Figure 2-2 MaxiSys Tablet, Back View Speaker Collapsible Stand — extends from the back to allow hands-free viewing of the tablet Rear Camera Camera Flash Figure 2-3 MaxiSys Tablet, Side Views Mini SD (Secure Digital) Card Slot Mini USB (Universal Serial Bus) Port Headphone Jack...
  • Page 11 Figure 2-4 MaxiSys Tablet, Top View DC Power Supply Input Port HDMI (High-definition Multimedia Interface) Port USB Port USB Port Power/Lock Button — long press to turn the tablet on and off, or short press to lock the screen 2.1.2 Power Sources The tablet can receive power from any of the following sources: ...
  • Page 12 Vehicle Power The tablet can be powered from the auxiliary power outlet adapter or other DC power port on the test vehicle through a direct cable connection. The vehicle power cable connects to the DC power supply port on the top side of the tablet. 2.1.3 Technical Specifications Table 2-1 Tablet Specifications Item...

  • Page 13: Maxiflash Vci

    Item Description Power Consumption 6.5 W Operating Temp. 0 to 50 ° C (32 to 122 ° F) Storage Temp. -10 to 60 ° C (14 to 140 ° F) Dimensions ( 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) W x H x D Weight 1.42 kg (3.13 lbs.)
  • Page 14 DC Power Supply Input Port Vehicle Data Connector Ethernet Port Vehicle LED  Flashes green when communicating with the vehicle’s system Connection LED  Lights solid green when connected with the tablet via USB cable  Lights solid blue when connected with the tablet via Bluetooth (BT) Power LED ...
  • Page 15 2.2.2 Power Sources The MaxiFlash VCI can receive power from the following sources:  Vehicle power  AC/DC power supply Vehicle Power The MaxiFlash VCI operates on 12/24 volt vehicle power, which receives power via the vehicle data connection port. The device powers on whenever it is connected to an OBDII/EOBD compliant Data Link Connector (DLC).

  • Page 16: Accessories Kit

    Figure 2-6 Main Cable V2.0 – 1.5m in Length NOTE The MaxiFlash VCI can be connected by the Autel Main Cable V2.0 only. DO NOT use other Autel main cables to connect the MaxiFlash VCI. 2.3.2 OBDI Adapters (Optional) The optional OBDI-type adapters are for non-OBDII vehicles.
  • Page 17 Volkswagen/Audi- Benz-38 Mitsubishi/Hyundai -12+16 2.3.3 Other Accessories AC/DC Power Adapter (12 V) Connects the tablet to the external DC power port for power supply. USB 2.0 Cable V2 (the V2 icon can be seen on the cable) Connects the tablet to the VCI. Mini USB Cable Connects the tablet to the computer.

  • Page 18: Getting Started

    Getting Started Make sure the tablet has sufficient power or is connected to the external power supply (see Power Sources). NOTE The images and illustrations depicted in this manual may differ from the actual ones. 3.1 Power Up Long press the Power/Lock button on the top-right side of the tablet to switch the unit on.
  • Page 19 Accesses the VCI connection menu. See VCI Manager Manager. Accesses system software update menu. See Update Update. Synchronizes Autel's online service database with Support the MaxiSys tablet. See Support. Provides a quick search for supported functions MaxiViewer and/or vehicles. See MaxiViewer.
  • Page 20 User Allows you to submit questions related to this Feedback product. See User Feedback. Allows you to register an Autel account, view and Autel User edit your personal profile, and link your device. Center Autel User Center. 3.1.2 Locator and Navigation Buttons...

  • Page 21: Power Down

    Name Button Description Display & Adjusts the brightness of the screen and the Sound volume of the audio output. Opens the VCI Manager application. A green badge with a BT or USB icon at the bottom-right corner indicates the VCI is connected, while a red “x”...
  • Page 22  To power down the MaxiSys tablet 1. Press and hold the Power/Lock button. 2. Tap Power Off. 3. Tap OK. 3.2.1 Reboot System In case of a system crash, press and hold the Power/Lock button and tap Restart to reboot the system.

  • Page 23: Diagnostics

    4.1 Establish Vehicle Communication and Selection 4.1.1 Establish Vehicle Communication The Diagnostics operations require connecting the MaxiSys Elite II Pro tablet to the test vehicle through the MaxiFlash VCI using the Main Cable V2.0 (Use the applicable OBDI adapter if needed). To establish proper vehicle communication with the tablet, you need to perform the following steps: Connect the VCI to the vehicle's DLC for both communication and power source.
  • Page 24 NOTE The vehicle's DLC is not always located under the dashboard. Refer to the user manual of the test vehicle for additional connection information. Non-OBDII Vehicle Connection This type of connection requires both the Main Cable V2.0 and an OBDI adapter for the specific vehicle being serviced.
  • Page 25 Figure 4-1 Connection between Auxiliary Power Outlet Adapter and Clipper Cable 2. Plug the DC power connector of the auxiliary power outlet adapter into the DC power supply input port of the VCI. 3. Connect the clipper cable to the vehicle's battery. NOTE After the VCI is successfully connected to the vehicle, the Power LED on the device lights solid green and a beeping sound will be heard.
  • Page 26 NOTE If no VCI is found, this may indicate that the signal strength is too weak to be detected. Reposition the VCI and remove all possible objects that may cause signal interference. Tap the Scan button at the top-right corner to rescan for the VCI. 4.
  • Page 27 B. If the VCI is unable to establish a communication link, a message will display. Possible causes for the communication error include:  A vehicle system has been selected for diagnosis that is not supported by the vehicle.  There is a loose connection. ...
  • Page 28 Top Toolbar Buttons The operations of the Toolbar buttons at the top of the screen are listed and described in the table below: Table 4-1 Top Toolbar Buttons Name Description Button Home Returns to the MaxiSys Job Menu. Opens a dropdown list. ...
  • Page 29 Automobile Manufacturer Icons The automobile manufacturer icons display the various vehicle brand names. Select the proper manufacturer icon after the VCI is properly connected to the test vehicle to start a diagnostics session. 4.1.3 Vehicle Identification The MaxiSys diagnostics system supports five methods of vehicle identification. Auto Detect Manual Input Scan VIN/License...
  • Page 30 Figure 4-3 Auto Detect Screen In some cases, the Auto VIN function is still available for some vehicle makes after being selected. Select an automobile manufacturer icon from the Vehicle Menu screen (Figure 4-2) and then tap Automatic Selection > Read. The system will proceed to acquire VIN information automatically or allow users to manually enter the VIN.
  • Page 31  To perform Manual Input 1. Tap the Diagnostics application button on the MaxiSys Job Menu. The Vehicle Menu appears. 2. Tap the VID button on the top toolbar. 3. Select Manual Input in the dropdown list. 4. Tap the input box and enter the correct VIN or license number. Figure 4-5 Manual VIN Input Screen 5.
  • Page 32 vehicle information is correct, tap the icon in the middle of the screen to confirm the VIN of the vehicle being tested. Tap OK to continue. Figure 4-6 Scan VIN Screen 1 If the VIN/license number cannot be scanned, please manually enter it after tapping the pen-shape icon.

  • Page 33: Diagnostics Screen Layout

    and emission) on the same screen. Tap Reset or ESC to reselect the vehicle information, if needed. Figure 4-8 Manual Vehicle Selection Screen 4.1.3.5 Alternative Vehicle Identification Occasionally, the tablet may not be able to identify a vehicle. For these vehicles, the user may perform a generic OBDII or EOBD diagnostics.
  • Page 34 Figure 4-10 Main Menu Screen 1. Diagnostics Toolbar 2. Current Directory Path 3. Status Information Bar 4. Main Section 5. Function Buttons Diagnostics Toolbar The Diagnostics Toolbar contains buttons that allow you to print or save the displayed data and perform other operations. The table 4-2 provides a brief description for the operations of the diagnostics toolbar buttons.
  • Page 35 Button Name Description There are three ways to save data: Tap Screenshot to save an image of the current  screen. Tap Save as PDF to save a PDF file (use this option  Save when data displays on multiple screens). Tap Report to Cloud to save reports for cloud ...
  • Page 36 Tap the Data Logging button to display the error options. Select a specific error and tap OK. A submission form will display to let you fill in the report information. Tap Send to submit the report form via the Internet. A confirmation message displays when sending is successful.

  • Page 37: Auto Scan

     Error Messages Error messages appear when a systemic or procedural error has occurred. Possible errors include cable disconnection and communication interruption. 4.2.2 Making Selections The Diagnostics application is a menu-driven program that presents a series of options one at a time. As you select from a menu, the next menu in the series appears. Each selection narrows the focus and leads to the desired test.
  • Page 38 Figure 4-12 Auto Scan Results Screen 4. The results are displayed on the screen. The quantity of total faults will appear on the upper-right corner. Column 1 — displays the system numbers. Column 2 — displays the scanned systems. Column 3 — displays the scan results. ...

  • Page 39: Control Unit

    Name Description Quick Erase Erases all faults after scanning. Fault Scan Scans vehicle system modules. Pause Pauses the scanning process. Enter System Enters the ECU system. Returns to the previous screen or exits the Diagnostics Screen. Select one of the system modules from System List screen and tap Enter System to enter the specific system functions.

  • Page 40: Ecu Information

    Active Tests — provides specific subsystem and component tests. This selection  may display as Actuators, Actuator Test or Function Tests. Available tests vary by vehicle. Special Functions — provides various component adaptations.  Coding — reprograms adaptive data for vehicle control modules. ...

  • Page 41: Trouble Codes

    5. Function Button — in this case, only the ESC button is available. Tap it to exit after viewing. 4.6 Trouble Codes 4.6.1 Read Codes This function retrieves and displays DTCs from the vehicle control system. The Read Codes screen varies for each vehicle being tested. For some vehicles, freeze frame data can also be retrieved for viewing.

  • Page 42: Live Data

    Read Codes interface and shares similar operations. Search — searches the selected DTC for additional information on the Internet.  Erase codes — erases codes from the ECU. It is recommended that DTCs are  read and needed repairs are performed before erasing codes. Read codes —...
  • Page 43 Figure 4-16 Live Data Screen 1. Diagnostics Toolbar Buttons — see Table 4-2 Diagnostics Toolbar Buttons detailed descriptions of each button. 2. Main Section Name Column — displays the parameters.  a) Check Box — tap the check box to the left of a parameter to select the item. Tap the check box again to deselect it.
  • Page 44 Figure 4-17 Display Mode Screen Each parameter displays the selected mode independently. ① Analog Gauge Mode — displays the parameters in gauge charts. ② Text Mode — the default mode that displays the parameters as a text list. NOTE Some status parameters, such as a switch reading like ON, OFF, ACTIVE, and ABORT, can only be displayed in Text Mode.
  • Page 45 Scale — changes the scale values.  There are two scale buttons displaying above the waveform graph on the right, which can be used to change the scale values of the X-axis and Y-axis of the graph. There are four scales available for the X-axis: x1, x2, x4, and x8. Three scales available for the Y-axis: x1, x2, and x4.
  • Page 46 3. The parameter is selected automatically in the left column. 4. Select a color from the middle column. 5. Select a line thickness from the right column. 6. Tap Done to save the settings and exit or tap Cancel to exit without saving. NOTE In the full screen display, edit the waveform color and the line thickness by tapping the Edit button on the upper-right side of the screen.
  • Page 47 MAX — displays a virtual keyboard to enter an upper threshold value.  To set a trigger 1. Tap the drop-down button on the right side of the parameter to open a submenu. 2. Tap the Trigger button on the right side of the submenu to open the Trigger Settings window.
  • Page 48 select 2 to 5 digital parameters. Tap the Got It button to return to the previous screen and select supported parameters. When unsupported parameters are selected, a message will appear advising the user to selected only parameters that are supported. A message will also appear if more than 5 parameters have been selected.

  • Page 49: Active Test

    playback in Review or Data Manager. Select the preset flag to open a popup window and display a virtual keyboard to input notes.  Review — reviews the recorded data. Tap Review to display a recording list and select one item to review. NOTE Only the data recorded during the current operation can be reviewed on the Live Data screen.

  • Page 50: Special Functions

    Select a test from the menu options. Follow the instructions displayed on the screen to complete the test. Procedures and instructions vary by vehicle. The function buttons in the lower-right corner of the Active Test screen manipulate the test signals. The operational instructions are displayed in the main section of the test screen.

  • Page 51: Programming And Coding

    4.10 Programming and Coding Since the introduction of the OBDII and leading up to modern hybrids and EVs, hardware and software technologies in cars have been advancing at an exponential rate. Updating software may be the only way to fix the following issues: ...
  • Page 52 4.10.1 Coding The main section of the Coding screen displays a list of vehicle components and the coding information that mainly consists of two parts: Figure 4-24 Coding Screen 1. All available systems for coding are displayed on the left side, and the coding data or value on the right side.
  • Page 53 a module.  Do not quit the application during a module programming as the process may fail and may also result in permanent damage to the module. Typical reprogramming operations require you to input and validate the VIN number first. Tap the input box and enter the correct number.

  • Page 54: Generic Obdii Operations

    If the process quits, recheck all the cable connections to assure good communications and initialize the flash procedure. The programming procedure will automatically repeat if the previous operation does not succeed. 4.11 Generic OBDII Operations The OBDII vehicle diagnosis option offers a quick way to check for DTCs, isolate the cause of an illuminated Malfunction Indicator Lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform other emissions-related services.
  • Page 55 4. Select a function to continue.  DTC & FFD  I/M Readiness  Live Data  Oxygen Sensor Monitor  On-Board Monitor  Component Test  Vehicle Information  Vehicle Status NOTE Supported functions may vary by vehicle. 4.11.2 Function Descriptions This section describes various functions of each diagnostics option.
  • Page 56  Current Codes Current codes are emissions-related DTCs from the ECU of the vehicle. OBDII codes are prioritized according to their emissions severity, with higher-priority codes overwriting lower-priority ones. The priority of the code determines the illumination of the Malfunction Indicator Lamp (MIL) and the codes erase procedure. Manufacturers rank codes differently, so DTCs may vary by vehicle.
  • Page 57 were erased. This Driving Cycle — displays the status of monitors since the beginning of the current  drive cycle. 4.11.2.3 Live Data This function enables the display of real-time PID data from the ECU. Displayed data includes analog and digital input and output, and system status information broadcast in the vehicle data stream.

  • Page 58: Diagnostics Report

    4.12 Diagnostics Report 4.12.1 Pre-Scan and Post-Scan  To perform the pre-scan and post-scan functions 1. Auto Scan the Vehicle — the Auto VID function can automatically identify the vehicle and its equipped systems. All available modules in all systems will be scanned automatically.
  • Page 59 Figure 4-29 Historical Test Screen  Tap View PDF to view the report directly. Or tap Get Report, enter the license plate and current mileage, and then tap Save > View Report to save and view the report. b) Via the Auto Scan function ...
  • Page 60 Figure 4-31 Auto Scan Screen 2  Tap the button in the Diagnostics Toolbar and select Save as PDF. Enter the license number and tap Save. Tap the button on the upper-right of the screen to view the report.  Or tap the button in the Diagnostics Toolbar and select Report to Cloud.
  • Page 61 PDF to view these local reports.  Once you save the reports by tapping the Get Report or Report to Cloud button, tap Data Manager > Cloud Report to view these reports saved to the Autel cloud platform. 4.12.2.3 Diagnostics Report Cloud Sharing ...

  • Page 62: Exit Diagnostics

    NOTE Note that if the report displays , it means the report has been uploaded to the cloud successfully, and you can share the report with others; if the report displays , it means the report has failed to upload to the cloud, but will try to automatically upload to the cloud when entering the Report again.
  • Page 63  On the Vehicle Menu screen Tap the Home button in the top toolbar. Or tap the Back button in the navigation bar at the bottom of the screen. Or tap the Home button in the diagnostics toolbar to exit the application directly and return to the MaxiSys Job Menu.

  • Page 64: Intelligent Diagnostics

    Intelligent Diagnostics Intelligent Diagnostics is a specific fault code analysis function, with which you can access the most comprehensive and the latest code-specific data, DTC analysis, repair assist, repair tips, and relevant repair cases. It has been drawn from real world shop repair orders and records and with input from experienced industry professionals.
  • Page 65 Figure 5-1 System List Screen Tap the Fault Scan button at the bottom. After scanning, a system with identified faults will display in red, with the number of faults displayed on the right. The number of total faults will display on the top. Figure 5-2 Fault Scan Screen After scanning system faults, there are four methods to access the Intelligent Diagnostics screen:...
  • Page 66  Access via the Intelligent Diagnostics icon to view code-related information of a specific DTC.  Access via the Enter System button to view code-related information of a specific DTC.  Access via the Enter System icon to view code-related information of a specific DTC.
  • Page 67 Figure 5-4 Intelligent Diagnostics Icon Screen 5.1.4 Access via Enter System Button  Select a system from the DTC list to activate the Enter System button at the bottom of the screen. Tap the Enter System button. Figure 5-5 Enter System Button Screen ...
  • Page 68 Figure 5-6 Function Menu Screen  Tap the Intelligent Diagnostics icon to the right of the DTC description, or select a specific DTC from the DTC list, and then tap the Intelligent Diagnostics button at the bottom of the screen to enter the Intelligent Diagnostics function.

  • Page 69: Intelligent Diagnostics Operation

    Figure 5-8 Enter System Icon Screen 5.2 Intelligent Diagnostics Operation Intelligent Diagnostics is an important and powerful function of MaxiSys Elite II Pro. It provides substantial information for intelligent diagnosis of the faults detected, offering Technical Service Bulletin, DTC analysis, Repair Assist, and Repair Tips to help you repair detected faults.
  • Page 70 DTC Analysis — provides repair assistance information related to the fault code. Repair Assist — intelligently prioritizes DTCs and leads the user to the proper repair. Repair Tips — displays the detailed steps of detecting and clearing DTCs. Repair steps are for reference only. Relevant Cases —...
  • Page 71 Figure 5-11 Technical Service Bulletin Screen 1 Figure 5-12 Technical Service Bulletin Screen 2 5.2.3 DTC Analysis On the Intelligent Diagnostics screen, the DTC Analysis contains repair assistance and information related to the fault codes, including the fault description, condition, fault influence, possible causes, and possible solution.
  • Page 72 Figure 5-13 DTC Analysis Screen 5.2.4 Repair Assist The Repair Assist displays a list of items and their descriptions, completion status, and priorities. The higher the priority number is (1 is the highest), the earlier the related items should be tested. ...
  • Page 73 Figure 5-15 Repair Assist Screen 2 The fault analysis information such as the repair steps, requires tools, trigger conditions, and system description displays on the screen. Read carefully and tap Continue to proceed. Figure 5-16 Repair Assist Screen 3 NOTE In some cases, you need to tap this icon to fold the right column so that the whole interface of Select Branch can be shown.
  • Page 74 Figure 5-17 Repair Assist Screen 4 In some cases, a solution will be generated to guide you to solve the problem with some reference information. Figure 5-18 Repair Assist Screen 5 The related wires can also be located on the Wiring screen. Tap the legend button in the upper-right corner to search or tap a certain module name to locate it.
  • Page 75 Figure 5-19 Repair Assist Screen 6 Operation instructions of the buttons on the right side of the screen are as follows:  Tap this button to search or tap a certain module name to locate it.  Tap this button to switch to the last one or tap this button to switch to the next one.
  • Page 76 Figure 5-20 Repair Tips Description 5.2.6 Relevant Cases This section offers recommended repair cases that may be relevant to the current vehicle and/or the current fault. These repair cases may provide greater insight into diagnosing and repairing your vehicle. Tap the relevant cases to review. Figure 5-21 Relevant Case Screen ...

  • Page 77: Service

    Service The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service operation screen is a series of menu-driven commands. Follow the on-screen instructions to select appropriate options, enter values or data, and perform necessary actions. The application will display detailed instructions to complete selected service operations.

  • Page 78: Electric Parking Brake (Epb) Service

     Ensure that the EPB control system is reactivated after the maintenance work has been completed. NOTE Autel accepts no responsibility for any accident or injury arising from the maintenance of the Electric Parking Brake system. 6.3 Tire Pressure Monitoring System (TPMS) Service...

  • Page 79: Diesel Particle Filter (Dpf) Service

    The vehicle may use either a sealed lead-acid battery or an Absorbed Glass Mat (AGM) battery. Lead acid battery contains liquid sulphuric acid and can spill when overturned. AGM battery (known as VRLA battery, valve regulated lead acid) also contains sulphuric acid, but the acid is contained in glass mats between terminal plates.

  • Page 80: Immobilizer (Immo) Service

    If the vehicle needs to be driven in order to perform a DPF service, a second person is required for the function. One person should drive the vehicle while the other person observes the screen on the tool. Do not attempt to drive and observe the scan tool at the same time.
  • Page 81 Accident repairs where damage to the SAS or assembly, or any part of the steering system may have occurred NOTE  Autel accepts no responsibility for any accident or injury arising from servicing the SAS system. When interpreting DTCs retrieved from the vehicle, always follow the manufacturer's recommendation for repair. ...

  • Page 82: Battery Test

    7.1.2 Connect the Battery Tester  To pair the BT506 battery tester with the MaxiSys Elite II Pro tablet Press and hold the Power/Lock button to turn on the tablet and battery tester. Ensure that each unit is sufficiently charged before use.

  • Page 83: In-Vehicle Test

    Enable Bluetooth on the MaxiSys Elite II Pro by tapping VCI Manager > BAS BT, and the tablet automatically scans for an available tester for pairing. The device name will appear as “Maxi” suffixed with a serial number. Check the serial number of your battery tester and select the desired device for pairing.
  • Page 84 Prior to testing any battery, ensure that the battery tester is paired with the tablet via Bluetooth and is connected properly to a battery. 7.2.1 Start the test  To start the battery test Tap the Battery Test application on the MaxiSys Job Menu. Select In-vehicle Test.
  • Page 85 Button Name Description Back Returns to the previous screen. Exit Returns to the Job Menu. 7.2.2 Battery Test Follow the on-screen instructions. Check the boxes once all required tasks are completed and tap Start Testing. Figure 7-3 Battery Test Screen Wait until the test is completed.
  • Page 86 Battery Test Results The battery test results include a color-coded results summary, a list of test data, and repair tips. Table 7-2 Battery Test Results Result Repair Tip Good Battery Battery is good. Good & Battery is good but insufficiently charged. Recharge the battery. Recharge Charge &...
  • Page 87 Table 7-3 Starter Test Results Result Description Cranking Normal The starter is good. Current Too Low Low momentary discharge capacity. Voltage Too Low Low battery storage capacity. Not Started The starter is not detected for starting. 7.2.4 Generator Test Follow the on-screen instructions to complete the test. The test results will appear as follows: Figure 7-6 Generator Test Results Screen Table 7-4 Generator Test Results...

  • Page 88: Out-Vehicle Test

    Result Description  The cable is loose.  Some vehicles with power management systems do not provide path for charging due to the sufficient No Output load capacity of the battery.  The generator or the voltage adjuster is broken and needs replacement.
  • Page 89 Figure 7-8 Out-vehicle Test Results Screen 7.3.2 Test Results Icons are color-coded to indicate status Table 7-5 Out-vehicle Test Results Result Description Good Battery Battery meets required standards. Battery is good, but low on charge. Fully charge the Good & Recharge battery.

  • Page 90: Oem Authorization

    OEM Authorization The OEM Authorization application allows to unlock the gateway ECU (CGW) for some vehicles to perform advanced diagnostics tests. NOTE Make sure the tablet is connected to the Internet before launching the OEM Authorization application.  To unlock the gateway ECU (CGW) 1.
  • Page 91 Figure 8-2 Purchase Screen 6. Exit the application. Tap OEM Authorization on the MaxiSys Job Menu. On the OEM Authorization screen, tap Renew. The Unlocking Information screen appears, on which you can view the remaining service sessions. Figure 8-3 Unlocking Information Screen...

  • Page 92: Settings

    Settings Access the Settings menu to adjust default settings and view information about the MaxiSys system. Figure 9-1 Settings Screen The following options are available for the MaxiSys system settings:  Unit  Language  Printing Settings  Report Settings ...

  • Page 93: Language

    To install the MaxiSys Printer driver program 1. Download Maxi PC Suite from www.autel.com > Support > Downloads > Autel Update Tools, and install to your Windows-based PC. 2. Double-click on Setup.exe. 3. Select an installation language and the wizard will load.

  • Page 94: Report Settings

    5. Click Install and the printer driver program will be installed to the computer. 6. Click Finish to complete the installation. This section describes how to receive files from the MaxiSys tablet and perform printing through the computer. NOTE Make sure the computer installed with the MaxiSys Printer driver program is connected to a printer.

  • Page 95: Auto Update

    whichever you want. 5. Tap Home on the top-left corner to return to the MaxiSys Job Menu. Or select another settings option for the system setup. When the Push Notifications function is performed and new messages are received by the MaxiSys device, a notification message displays on the MaxiSys Job Menu. Press on the message bar and drag it down to display a list of received messages.

  • Page 96: About

    9.9 About The About function provides information of the MaxiSys diagnostics device, including the product name, version, hardware, and serial number.  To check the MaxiSys product information in About 1. Tap the Settings application on the MaxiSys Job Menu. 2.

  • Page 97: Data Manager

    Data Manager The Data Manager application allows you to store, print, and review the saved files, manage the workshop information, customer information records, and keep test vehicle records. Selecting the Data Manager application opens the file system menu. There are nine main functions available.

  • Page 98: Vehicle History

    Button Description Review Data Tap to view the recorded data. Tap to view communications with Autel support service and ECU information of the test vehicle. Data Logging The saved data can be reported and sent to the technical center via the Internet.
  • Page 99 4. The Diagnostics screen of the vehicle appears and a new diagnostics session is activated. Or select a vehicle thumbnail to select a record. A Test Records window appears. Review the recorded information of the test vehicle and tap the button on the upper-right corner to continue diagnostics.

  • Page 100: Workshop Information

    NOTE The vehicle VIN, license number, and customer account are correlated by default. Vehicle records will automatically be correlated using this vehicle and customer identification. 10.2 Workshop Information The Workshop Information allows you to enter, edit, and save detailed workshop information, such as shop name, address, phone number, and other remarks, which, when printing vehicle diagnostics reports and other correlated test files, will appear as the header of your printed documents.

  • Page 101: Image

    3. Tap the Add a Customer button. An empty information form appears. Tap each field to enter the appropriate information. NOTE Required fields are denoted by an asterisk. 4. For customers with more than one vehicle for service, tap Add New Vehicle Information.
  • Page 102 Figure 10-5 Image Database Screen 1. Toolbar Buttons — used to edit, print or delete the image files. See Table 10-2 Toolbar Buttons Description below for detailed information. 2. Main Section — displays the stored images. Table 10-2 Toolbar Buttons Description Name Button Description...

  • Page 103: Cloud Report

    10.5 Cloud Report The Cloud Report section stores diagnostics reports. You can view local reports or share the report to the Autel cloud after entering the report database and selecting a specific report. 10.6 PDF Files The PDF section stores and displays all PDF files of the saved data. After entering the PDF database, select a PDF file to view the stored information.

  • Page 104: Data Logging

    1. Main Section — displays the recorded data frames. 2. Navigation Toolbar — allows you to manipulate data playback. Use the Navigation Toolbar buttons to play back the record data from frame to frame. Tap Back to exit data playback. 10.8 Data Logging The Data Logging section allows you to launch the Support platform to view all records with or without feedback (saved) data logs on the diagnostics system.

  • Page 105: Vci Manager

    VCI Manager The VCI Manager is for connecting the MaxiSys Elite II Pro tablet with a VCI through Bluetooth. This application allows you to pair the tablet with the VCI and to check its communication status. 11.1 VCI Connection via Bluetooth The VCI needs to be either connected to a vehicle or to an available power source, so that it is powered up during the synchronization procedure.

  • Page 106: Bas Connection Via Bluetooth

     To pair the BT506 battery tester with the tablet Turn on both the MaxiBAS BT506 and MaxiSys Elite II Pro tablet. Tap VCI Manager on the MaxiSys Job Menu. Select BAS BT from the connection mode list. Tap the BAS Bluetooth toggle to turn it ON.

  • Page 107: Bas Update

    Figure 11-3 VCI Update Screen  To update the VCI Power on the tablet. Connect the VCI to the tablet via Bluetooth or USB. Tap VCI Manager on the MaxiSys Job Menu. Select VCI Update from the connection mode list. The current version and the latest version of the VCI will appear.
  • Page 108  To update the MaxiBAS BT506 Power on the tablet and the MaxiBAS BT506. Connect the MaxiBAS BT506 to the tablet via Bluetooth or USB. Tap VCI Manager on the MaxiSys Job Menu. Select BAS Update from the connection mode list. The current version and the latest version of the MaxiBAS BT506 will appear.

  • Page 109: Update

    Update The Update application allows you to download the latest software. The updates can improve the MaxiSys applications’ capabilities, typically by adding new tests, new vehicle models or enhanced applications. This section describes the update operations for the MaxiSys tablet. The tablet automatically searches for available updates for all of the MaxiSys software when it is connected to the Internet.
  • Page 110 ways to view updates: Date (Old to New), Date (New to Old), Frequency, Name (A–Z), and Name (Z–A). Update All — tap to select software for bulk download.  4. Main Section Left Column — displays vehicle logos.  Middle Column — displays a brief introduction about the new changes to the ...

  • Page 111: Support

    13.1 Product Registration In order to get access to the Support platform and obtain update and other services from Autel, you are required to register the MaxiSys tablet the first time you use it. See Autel User Center for detailed information.

  • Page 112: M Yaccount

    The Service Info section displays a detailed record list of the device's service history information. Each time the device is sent back to Autel for repair, the device's serial number and the detailed repair information, such as the fault type, changed components, or system reinstallation, will be recorded and updated to the associated online product account that will be synchronized to the Service Info section.

  • Page 113: Faq Database

    13.6 FAQ Database The FAQ section provides comprehensive references for all questions frequently asked and answered about the use of Autel's online member account, shopping, and payment procedures. Account — displays questions and answers about the use of Autel's online user ...

  • Page 114: Maxiviewer

    MaxiViewer MaxiViewer allows you to search the functions supported by our tools and the version information. There are two ways of searching, either by searching the tool and the vehicle or searching the functions.  To search by vehicle 1. Tap the MaxiViewer application on the MaxiSys Job Menu. 2.

  • Page 115: Maxiscope

    Please download the latest user manual for Autel MaxiScope device from www.autel.com > Specialty Tools > MORE PRODUCTS > MaxiScope MP408 >...

  • Page 116: Maxivideo

    MaxiVideo The MaxiVideo application configures the MaxiSys tablet to operate as a digital video scope by simply connecting the tablet to a MaxiVideo camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

  • Page 117: Quick Link

    Quick Link The Quick Link application provides you with convenient access to Autel's official website and many other well-known sites in automotive service, which offers you abundant information and resources, such as technical help, knowledge bases, forums, training, and expert consultations.

  • Page 118: Remote Desktop

    You can use the application to receive ad-hoc remote support from Autel's support center, colleagues or friends, by allowing them to control your MaxiSys tablet on their PC via the TeamViewer software.
  • Page 119 4. Provide your ID to the partner, and wait for him/her to send you a remote control request. 5. A message displays to ask for your confirmation to allow remote control on your device. 6. Tap Allow to accept or tap Deny to reject.

  • Page 120: User Feedback

    PDF files with the form. To help resolve the issue efficiently, we recommend you to complete the form with as many details as possible. 4. Tap Submit to send the completed form to Autel's online service center. The submitted feedback will be carefully read and handled by our support personnel.

  • Page 121: Autel User Center

    Figure 20-1 Autel User Center Screen If you already have an Autel ID, you can log in with your phone number and verification code, or tap Log In with Password to log in with your Autel ID and password. If you do not have an Autle ID yet, tap Register to create an Autel Once your account is successfully registered, you will enter the main menu of the Autel User Center.
  • Page 122 Visit the website: pro.autel.com. If you have an Autel account, log in and skip to Step 7. If you are a new member to Autel, click Register to create your Autel ID. Enter your personal information. Fields marked with an asterisk (*) are mandatory.

  • Page 123: Maintenance And Service

    Maintenance and Service To ensure that the tablet and the combined VCI perform at their optimum level, we advise that the product maintenance instructions in this section are strictly followed. 21.1 Maintenance Instructions The following includes how to maintain your devices, together with precautions to take. ...

  • Page 124: About Battery Usage

     Your device may not be connected to the charger properly. Check the connector. NOTE If the problems persist, please contact Autel's technical support personnel or your local selling agent. 21.3 About Battery Usage Your tablet is powered by a built-in lithium-ion polymer battery, which enables you to recharge your battery when there is electricity left.

  • Page 125: Service Procedures

    This section provides information on technical support, repair service, and application for replacement or optional parts. 21.4.1 Technical Support If you have any question or problem on product operations, please contact us. AUTEL NORTH AMERICA  Phone: 1-855-AUTEL-US (855-288-3587) Monday-Friday 9AM-6PM Eastern Time  Website: www.autel.com  Email: sales@autel.com;...
  • Page 126 7-8th, 10th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China 21.4.3 Other Services You can purchase the accessories directly from authorized tool suppliers of Autel, or your local distributor or agent. Your purchase order should include the following information: ...
  • Page 127  Item description  Purchase quantity...

  • Page 128: Compliance Information

    Compliance Information FCC Compliance FCC ID: WQ8-MS908S2122 This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 129 RoHS Compliance This device is declared to be in compliance with the European RoHS Directive 2011/65/EU. CE Compliance This product is declared to conform to the essential requirements of the following directives and carries the CE mark accordingly: Radio Equipment Directive 2014/53/EU.

  • Page 130: Warranty

    Warranty 23.1 12-Month Limited Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiSys diagnostics device that should this product or any part thereof during normal usage and under normal conditions be proven defective in material or...
