Diagnostics Screen Layout - Autel MSOBD2KIT User Manual

4.1.3.5 Alternative Vehicle Identification
Occasionally, the tablet may not be able to identify a vehicle. For these vehicles, the user
may perform a generic OBDII or EOBD diagnostics. See
additional information.

4.2 Diagnostics Screen Layout

After the vehicle information is selected, tap the OK button at the bottom-right corner of
the screen to open the Main Menu screen. This section consists of various functions
commonly used, including Auto Scan and Control Unit. The available functions displayed
vary by vehicle.
1. Diagnostics Toolbar
2. Current Directory Path
3. Status Information Bar
4. Main Section
5. Function Buttons
Diagnostics Toolbar
The Diagnostics Toolbar contains buttons that allow you to print or save the displayed
data and perform other operations. The table 4-2 provides a brief description for the
operations of the diagnostics toolbar buttons.

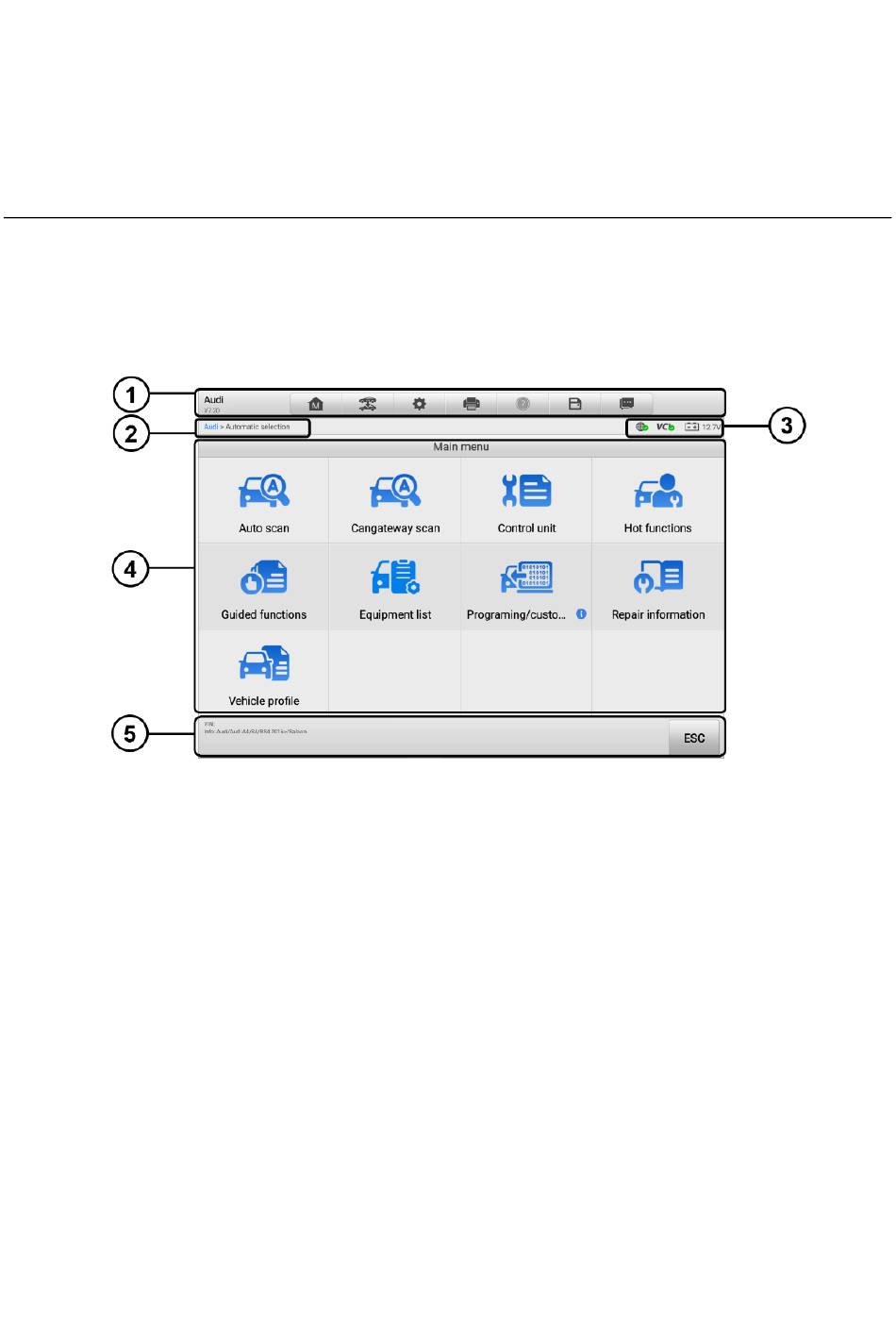

Figure 4-6 Main Menu Screen
26
Generic OBDII Operations for
