Trademarks
®
®
Autel
, MaxiSys
, MaxiDAS
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in China, the United
States and other countries. All other marks are trademarks or registered trademarks of
their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted, in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise
without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While information of
this manual has been carefully checked for accuracy, no guarantee is given for the
completeness and correctness of the contents, including but not limited to the product
specifications, functions, and illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or any economic
consequential damages (including lost profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully, paying extra
attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
support@autel.com
For details, please refer to the
®
®
, MaxiScan
, MaxiTPMS
Service Procedures
i
®
, MaxiRecorder
in this manual.
®
®
, and MaxiCheck

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiSys MS908SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autel MaxiSys MS908SP

Summary of Contents for Autel MaxiSys MS908SP

  • Page 1 All information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Autel reserves the right to make changes at any time without notice. While information of this manual has been carefully checked for accuracy, no guarantee is given for the completeness and correctness of the contents, including but not limited to the product specifications, functions, and illustrations.
  • Page 2 Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety.
  • Page 3 carbon monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life. Do Not Turn the Volume Up Too Loud When Using Headphones Listening at high volumes that over-stimulate the ear for long periods of time may result in loss of hearing.

  • Page 4: Table Of Contents

    CONTENTS 1 USING THIS MANUAL ....................1 ........................1 ONVENTIONS 2 GENERAL INTRODUCTION ..................3 ....................3 ISPLAY ABLET VCI – J2534 ECU P ................7 ROGRAMMING EVICE ......................9 CCESSORIES 3 GETTING STARTED ....................12 ........................12 OWER ......................... 15 OWER 4 DIAGNOSTICS ......................
  • Page 5 8 DATA MANAGER ......................70 ........................70 PERATIONS 9 SETTINGS ........................74 ........................74 PERATIONS 10 UPDATE ........................79 11 VCI MANAGER ......................81 BT P ........................82 AIRING 12 REMOTE DESK ......................83 ........................83 PERATIONS 13 SUPPORT ........................85 ....................

  • Page 6: Using This Manual

    Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Conventions The following conventions are used. Bold Text Bold text is used to highlight selectable items such as buttons and menu options. Example: ⚫...
  • Page 7 Hyperlink Hyperlinks or links that take you to other related articles, procedures, and illustrations are available in electronic documents. Blue italic text indicates a selectable hyperlink and blue underlined text indicates a website link or an email address link. Illustrations Illustrations used in this manual are samples, and the actual testing screen may vary for each vehicle being tested.

  • Page 8: General Introduction

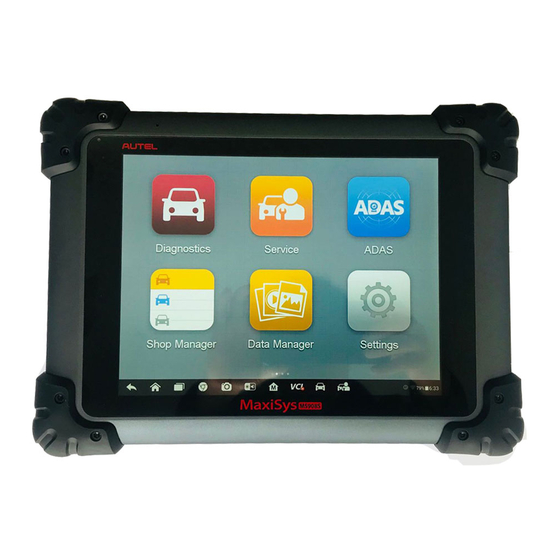

    General Introduction ® The MaxiSys MS908S Pro Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful Cortex A7+A15 six-core processor, and a 9.7 inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiSys organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.
  • Page 9 Figure 2-2 MaxiSys Tablet Back View Audio Speaker Collapsible Stand – extends from the back to allow hands-free viewing of the tablet at a 30 degree angle. Camera Lens Camera Flash Figure 2-3 MaxiSys Tablet Left Side Mini SD (Secure Digital) Card Slot Mini USB (Universal Serial Bus) Port (it cannot be used at the same time with the No.
  • Page 10 Figure 2-4 MaxiSys Tablet Top View DC Power Supply Input Port HDMI (High-Definition Multimedia Interface) Port USB Port USB Port (it cannot be used at the same time with the Mini USB Port in Figure 2-3 MaxiSys Tablet Left Side) Lock/Power Button –...
  • Page 11 Technical Specifications Table 2-1 Tablet Specifications Item Description Operating System Android 4.4.2, KitKat Samsung Exynos Six-core Processor (1.3GHz Processor Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) Memory 2GB RAM & 64GB On-board Memory Display 9.7 inch LED capacitive touch screen with 1024x768 resolution Connectivity Wi-Fi (802.11 a/b/g/n/ac)

  • Page 12: Vci - J2534 Ecu Programming Device

    Item Description ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Protocols Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN VCI –...
  • Page 13 ⚫ Lights amber automatically at power up when the device is self-testing USB Port J2534 Programming Capability The J2534 ECU Programming Device is a SAE J2534-1 & -2 compliant PassThru programming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.

  • Page 14: Accessories Kit

    Item Description Wireless Frequency Wireless BT V2.1+EDR, 2.4GHz Input Voltage Range 12 VDC to 24 VDC Supply Current 170 mA @ 12 VDC 100 mA @ 24 VDC Operating Temp. 0°C to 60°C (ambient) Storage Temp. -65°C to 100°C (ambient) Dimensions ( 149 mm (5.87”) x 86 mm (3.38”) x 35 mm (1.28”) L x W x H...
  • Page 15 Benz-14 Chrysler-16 BMW-20 Kia-20 (EU Only) (America Only) Mitsubishi/Hyund Nissan-14 GM/Daewoo-12 Honda-3 ai-12+16 BMW Ethernet Benz-38 VW/Audi-2+2 Cable Other Accessories Standard 2.0 USB Cable Connects the tablet to the VCI unit. Mini USB Cable Connects the tablet to the Windows-based PC. AC/DC External Power Adapter Connects the tablet to the external DC power port for power supply.
  • Page 16 non-OBD II vehicles cannot provide power via the DLC connection. Clipper Cable Provides power tablet J2534 programming device through connection to the vehicle’s battery. Lighter Fuse x2 A safety device for the cigarette lighter. USB Ethernet Adapter Connects the device to an Ethernet network.

  • Page 17: Getting Started

    Getting Started Make sure the tablet has sufficient power or is connected to the external power supply (see Power Sources on page 5). Power Up Long press the Lock/Power button on the top right side of the tablet to switch the unit on. The power LED will illuminate green.
  • Page 18 Accesses VCI connection menu. See VCI Manager Manager on page 81. Launches the Support platform that synchronizes Support Autel’s online service base station with the MaxiSys tablet. See Support on page 85. Accesses technical tutorials and training articles Academy about the device or vehicle diagnostic techniques.
  • Page 19 Name Button Description Configures the unit to operate as an automotive oscilloscope to perform electrical and electronic MaxiScope circuit tests and monitor signal activities. See MaxiScope on page 95. Configures the unit to operate as a video scope Digital device by connecting to an Imager head cable for Inspection close vehicle inspections.

  • Page 20: Power Down

    Name Button Description Opens the VCI Manager application. The check at the bottom right corner indicates the tablet is communicating with the VCI, an X will display if the tablet is not connected to VCI. MaxiSys Returns to the Diagnostics screen. Shortcut Service Returns to the Service screen.
  • Page 21 Reboot System In case of system crash, long press the Lock/Power button and tap Reboot to restart the system.

  • Page 22: Diagnostics

    Diagnostics The Diagnostics application can access the electronic control module of various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more. Establish Vehicle Communication The Diagnostics operations require connecting the MaxiSys MS908S Pro Diagnostic Platform to the test vehicle through the VCI device using the main cable and test adapters (for non-OBD II vehicles).
  • Page 23 Connect the cable’s 16-pin male adapter to the vehicle’s DLC, which is generally located under the vehicle dash. NOTE The vehicle’s DLC is not always located under the dash; refer to the user manual of the test vehicle for additional connection information. Non-OBD II Vehicle Connection This type of connection requires both the main cable and a required OBD I adapter for the specific vehicle being serviced.
  • Page 24 Figure 4-1 Connection between Cigarette Lighter and Clipper Cable Plug the DC power connector of the cigarette lighter into the DC power supply input port of the J2534 programming device. Connect the clipper cable to the vehicle’s battery. NOTE After the VCI device is successfully connected to the vehicle, the Power LED on the device illuminates, and a brief beep sound will be heard.
  • Page 25 are listed in the Setting section on the right side of the screen. NOTE If no VCI device is found, this may indicate that the signal strength of the transmitter is too weak to be detected. In this case try to get closer to the device, or reposition the VCI device, and remove all possible objects that may cause signal interference.

  • Page 26: Getting Started

    the loss of signal, check if there are any objects that causes signal interruption. Check if the VCI device is properly positioned. It is recommended to put the ⚫ VCI device with the front side up. Try standing closer to the VCI device to obtain more stable signals, and faster ⚫...
  • Page 27 Figure 4-2 Sample Vehicle Menu Screen Top Toolbar Buttons Manufacturer Buttons Top toolbar Buttons The operations of the Toolbar buttons at the top of the screen are listed and described in the table below: Table 4-1 Top Toolbar Buttons Name Button Description Home...

  • Page 28: Vehicle Identification

    Name Button Description Asia Displays the Asian vehicle menu. Domestic Displays the Domestic vehicle menu. Touching this button opens the virtual keyboard, Search allowing you to manually enter the specific vehicle make required. Touching this button exits the search screen, or Cancel cancels an operation.
  • Page 29 Vehicle Diagnostics screen directly. Figure 4-3 Sample Vehicle Diagnostics Screen In some cases when users have selected the vehicle brand instead of performing Auto VIN Scan in the first place, the system still provides an option for vehicle VIN scan. Figure 4-4 Sample Vehicle Selection Screen Select Automatic Selection and the system will proceed to acquire VIN information automatically or allow users to input the VIN manually.
  • Page 30 ➢ To perform Manual VIN Input Tap the Diagnostics application button from the MaxiSys Job Menu. The Vehicle Menu displays. Tap the VIN Scan button on the top toolbar. Select Manual Input. Tap the input box and enter the correct VIN. Figure 4-5 Manual VIN Input Tap Done.

  • Page 31: Navigation

    Navigation This section describes how to navigate the Diagnostics interface and select test options. Diagnostics Screen Layout The Diagnostics screens typically include four sections. Figure 4-6 Sample Diagn ostics Screen Diagnostics Toolbar Status Information Bar Main Section Functional Buttons Diagnostics Toolbar The Diagnostics Toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls.
  • Page 32 Name Button Description Saves and prints a copy of the displayed data. See Print Print on page 75. Provides instructions or tips for operations of Help various diagnostic functions. Taps it to open a submenu, on which there are 3 options available to save the displayed data.
  • Page 33 ➢ To submit Data Logging reports in Diagnostics Tap the Diagnostics application button from the MaxiSys Job Menu. The Data Logging button on the diagnostic toolbar is available throughout the whole Diagnostics operations. Tap the Data Logging button. The button displays blue during the active recording process.

  • Page 34: Main Menu

    When a user-response is not required to continue, the message displays briefly before automatically disappearing. Warning Messages This type of messages informs you when completing the selected action may result in an irreversible change or loss of data. The typical example for this is the “Erase Codes” message.

  • Page 35: Diagnosis

    Diagnosis There are two options available when accessing the Diagnosis section: Auto Scan – starts auto scanning for all the available systems on the vehicle Control Units – displays a selection menu of all available control units of the test vehicle.
  • Page 36 Column 3 – displays the diagnostic marks indicating different conditions of the test result.  Indicates that the scanned system may not support the code reading -!-: function, or there is a communication error between the tester and the control system.
  • Page 37 Control Units This option allows you to manually locate a required control system for testing through a series of choices. Simply follow the menu driven procedure, and make proper selection each time; the program will guide you to the diagnostic function menu after a few choices you’ve made.
  • Page 38 NOTE With the diagnostic toolbar on top of the screen throughout the whole diagnostic procedures, you are allowed to make various controls of the diagnostic information at any time, such as printing and saving the displayed data, get help information, or perform data logging.
  • Page 39 Read Codes This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested, on some vehicles, freeze frame data can also be retrieved for viewing. The sample Read Codes screen displays as below: Figure 4-10 Sample Read Codes Screen Diagnostics Toolbar Buttons –...
  • Page 40 ➢ To erase codes Tap Erase Codes from the Function Menu. A warning message displays to inform you of data loss when this function is applied. Tap Yes to continue. A confirming screen displays when the operation is successfully done. Tap No to exit.
  • Page 41 make selection of an item. Tap the check box again to deselect the item. Drop-down Button – tap the drop-down button at the right side of the parameter name to open a submenu, which provides optional modes by which to display the data. Value Column –...
  • Page 42 Scale Button – tap to change the scale values, which are displayed below the ⚫ waveform graph. There are four scales available: x1, x2, x4 and x8. Zoom-out Button – tap to exit full screen display. ⚫ ➢ To edit the waveform color and line thickness in a data graph Select 1 to 3 parameter items to display in Waveform Graph mode.
  • Page 43 NOTE This mode supports Graph Merge for 2 to 3 parameter items only, select no less than 2 or more than 3 items each time when making graph merge. ➢ To cancel Graph Merge mode, tap the drop-down button on the right side of the parameter name, and select a data display mode.
  • Page 44 Select a parameter item on the left column, or enter the item name in the Search bar. Tap on the right side of the MIN button, and enter the required minimum value. Tap on the right side of the MAX button, and enter the required maximum value.
  • Page 45 Tap Done to save the setting and return to the Live Data screen; or tap Cancel to cancel without saving and exit Setting. Done – confirms and saves the setting, and returns you to the Live Data ⚫ screen. Cancel – cancels the setting operation, and returns you to the Live Data ⚫...
  • Page 46 complete the tests. Each time when an operation is successfully executed, message such as “Command Finished”, “Activation Successful”, or something similar displays. Tap the ESC functional button to exit the test when finished. Special Functions These functions perform various component adaptations, allowing you to recalibrate or configure certain components after making repairs or replacement.

  • Page 47: Programming And Coding

    Tap the ESC button to exit the function. Programming and Coding Since the introduction of OBD II and leading up to modern Hybrids and EVs, computers and software in cars have been expanding at an exponential rate. In-car software is becoming one of the leading needs for service, and updating software may be the only way to fix some of these issues: Drivability...
  • Page 48 Selecting the Programming or Coding function opens a menu of operation options that varies by make and model. Selecting a menu option either shows a programming interface or opens another menu of additional choices. Follow all screen instructions while performing the programming or coding operations. How and what information is presented on the screen varies according to the type of operation being performed.
  • Page 49 Figure 4-16 Sample Reprogramming Operation Screen The main section of the reprogramming interface provides you certain hardware version, and current software versions’ information, as well as the information of the newest software versions to be programmed to the control units. Throughout the programming procedure, a series of on-screen operational instructions will display to guide you through.

  • Page 50: Generic Obd Ii Operations

    Generic OBD II Operations A fast-access option for OBD II/EOBD vehicle diagnosis is available on the Vehicle Menu screen. This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related.
  • Page 51 NOTE Tap the button beside the protocol name to display additional protocol information. Select a function option to continue. DTC & FFD ⚫ I/M Readiness ⚫ Live Data ⚫ O2 Sensor Monitor ⚫ On-Board Monitor ⚫ Component Test ⚫ Vehicle Information ⚫...
  • Page 52 Stored Codes ⚫ Stored codes are the current emission related DTCs from the ECM of the vehicle. OBD II/EOBD Codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the Malfunction Indicator Light (MIL) and the codes erase procedure.

  • Page 53: Exit Diagnostics

    This Driving Cycle – displays the status of monitors since the beginning of the ⚫ current drive cycle. Live Data This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
  • Page 54 NOTE Damage to the vehicle electronic control module (ECM) may occur if communication is disrupted. Make sure the all connections, such as data cable, USB cable, and wireless or wired network, are properly connected at all times during testing. Exit all tests before disconnecting the test cable or powering down the tool.

  • Page 55: Service

    Service The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service operation screen is a series of menu driven executive commands. Follow on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions.

  • Page 56: Electric Parking Brake (Epb) Service

    Ensure that the EPB control system is reactivated after the maintenance work has been completed. NOTE Autel accepts no responsibility for any accident or injury arising from the maintenance of the Electric Parking Brake system. Tire Pressure Monitoring System (TPMS) Service This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU,...

  • Page 57: Battery Management System (Bms) Service

    Battery Management System (BMS) Service The Battery Management System (BMS) allows the tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket. NOTE This function is not supported by all vehicles.

  • Page 58: Diesel Particle Filter (Dpf) Service

    NOTE Autel accepts no responsibility for any accident or injury arising from servicing the SAS system. When interpreting DTCs retrieved from the vehicle, always follow the manufacturer’s recommendation for repair. All software screens shown in this manual are examples, actual test screens may vary by test vehicle.

  • Page 59: Immobilizer (Immo) Service

    If the vehicle needs to be driven in order to perform a DPF service, a second person is needed for the function. One person should drive the vehicle while the other person observes the screen on the Tool. Do not attempt to drive and observe the scan tool at the same time.

  • Page 60: Maxifix

    MaxiFix The MaxiFix application launches the online troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven fixes.
  • Page 61 The Main Screen – located at the center of the screen displaying content based on the vehicle attributes and keywords specified. The tabs on the main screen vary in accordance with the section selected on the Navigation Menu, allowing you to switch between functions.
  • Page 62 and filed into an all-in-one information source to provide you with quick and easy repair solutions. On MaxiFix community you can find Tips or share your own Tip to help other community members solve vehicle issues. ➢ To search for a MaxiFix Tip Select a Vehicle.

  • Page 63: Operations

    Operations The Navigation Menu is at the bottom of the screen. Selecting the items on the Navigation Menu allows you to switch between the main sections on MaxiFix. These main sections include: Home – displays all questions posed and allows you to enter your specific question ⚫...
  • Page 64 Tips – presents a list of Tips that directly correlate to your search criteria. Select a ⚫ Tip from the list to open and review the complete Tip. Real Fixes – presents a list of Tips that have been collected from actual shop ⚫...
  • Page 65 Marked Posts – opens a list with links to Tips and discussions that you are actively ⚫ participating in. My Profile – allows you to view your Autel account information including: your Autel ⚫ ID, personal information, MaxiFix score, phone number and register time, and edit your portrait.
  • Page 66 View Profile Information You can view your personal profile by clicking on your account ID or “My Profile” in My MaxiFix section or edit portrait where applicable, and visit other community members’ profile by clicking their portrait. Information included in your profile determines how you are presented to the community, and what type of information will be sent to you from the community.
  • Page 67 To close a question, you need to select the question’s response message from the message list on “My Messages” page first, then tap “Adopted Answer” and select “Close Question”. Tap the “Cancel” button to cancel your submission and return to My Messages page.

  • Page 68: Shop Manager

    Shop Manager The Shop Manager application helps you manage the workshop information, customer information records, and keep test vehicle history records, which can help in dealing with daily workshop business and improves customer service. There are three main functions available: Vehicle History ⚫...

  • Page 69: Vehicle History

    Vehicle History This function stores records of test vehicle history, including vehicle information and the retrieved DTCs from previous diagnostic sessions. Test information is summarized and displayed in an easy-to-view table listing. The Vehicle History also provides direct access to the previously tested vehicle and allows you to restart a diagnostic session without the need to do vehicle identification again.
  • Page 70 Historical Test Record The Historical Test record of the tested vehicle is a detailed data form, which includes all general information of the vehicle such as vehicle year, make and model and the diagnostic trouble codes retrieved from the previous test sessions, as well as other service details that can be added manually by the technician himself.

  • Page 71: Workshop Information

    Workshop Information The Workshop Information form allows you to input, edit, and save the detailed workshop information, such as shop name, address, phone number and other remarks, which, when printing vehicle diagnostic reports and other associated test file, will display as the header of the printed documents. Figure 7-3 Sample Workshop Information Sheet ➢...
  • Page 72 NOTE The items that must be filled are indicated as required fields. Tap the photo frame beside the Name chart to add a photo. A sub menu displays, select Take Photo to take a new photo for the account, or select Choose Photo to choose from the existing files.
  • Page 73 Select a customer account by tapping the corresponding name card. A Customer Information sheet displays (if Customer Manager is selected). Or, select a vehicle history record to open the Historical vehicle record (if Vehicle History is selected). Tap the History Notes button on the top bar. The History Notes screen displays.
  • Page 74 Name Button Description Take a Photo Take a photo and add the file to History Notes. Save Save notes. To add a note in History Notes ➢ Access History Notes. Tap Add Notes. An edit window displays. Tap on the Title bar to input a note title. Tap on the blank space below to edit a text note or remark.

  • Page 75: Data Manager

    Data Manager The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options. Figure 8-1 Sample Data Manager Main Screen Operations Data Manager Operations are based on toolbar controls, details are explained in the...
  • Page 76 Figure 8-2 Sample Image Database Screen Toolbar Buttons – used to edit, print and delete the image files. See Table 8-1 Toolbar Buttons in JPG Database on page 71 for detailed information. Main Section – displays the stored images. Table 8-1 Toolbar Buttons in JPG Database Name Button Description...
  • Page 77 Tap Edit on the top right corner of the window. The editing screen displays. Edit the image information by entering the new file name, and file information. Tap Done to save the information and exit, or tap Cancel to exit without saving.
  • Page 78 Drop-down Toolbar – tap the button at the top center of the screen to open the Drop-down Toolbar. Main Section – displays the recorded data frames. Navigation Toolbar – allows you to manipulate data playback. Use the Navigation Toolbar buttons to playback the record data from frame to frame. Tap Back to exit data playback.

  • Page 79: Settings

    Settings Selecting Settings application opens a setup interface, on which you can adjust default setting and view information about the MaxiSys system. The following options are available for the MaxiSys system settings: Unit ⚫ Language ⚫ Printing Setting ⚫ Wired Network ⚫...
  • Page 80 Printing Operations ➢ To install the MaxiSys Printer driver program Download Maxi PC Suite from www.autel.com > Supports & Updates > Firmware & Downloads > Update Client, and install to a Windows-based PC. Double click on Setup.exe item. Select the installation language and the wizard will load.
  • Page 81 Click Test Print to make sure the printer is working successfully. Tap the Print button on the toolbar of the tablet. A test document will be sent to the computer. If the Auto Print option in the MaxiSys Printer is selected, the MaxiSys ⚫...
  • Page 82 Internet. It is highly recommended to keep this function on all the time, so you won’t miss out any new update for MaxiSys or event from Autel. Internet access is required for receiving online messages.
  • Page 83 specific time is set, the selected software will be automatically updated at this specific time. System Settings This option provides you a direct access to the Android background system setting interface, on which you can adjust various system settings for the Android system platform, regarding wireless and networks settings, various device settings such as sound and display, as well as system security settings, and check the associated information about the Android system.

  • Page 84: Update

    Update The internal programming of the MaxiSys Diagnostic System, known as the firmware, can be updated using the Update application. Firmware updates increase the MaxiSys applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The display device automatically searches for available updates for all of the Maxisys components when it is connected to the Internet.
  • Page 85 Middle Column – displays a brief introduction about the new changes to the ⚫ firmware operation or capabilities. Tap button to display an information screen to view more details, and tap the dim area around to close the window. Right Column – according to the operation status of each firmware item, the ⚫...

  • Page 86: Vci Manager

    VCI Manager This application allows you to pair the tablet with the VCI device, MaxiFlash Elite and to check the communication status. Figure 11-1 Sample VCI Manager Screen Connection Mode – there are two connection modes available for selection. The connection state is displayed alongside.

  • Page 87: Bt Pairing

    BT Pairing The VCI device needs to be either connected to a vehicle or to an available power source, so that it is powered up during the synchronization procedure. Make sure the tablet has a charged battery or is connected to an AC/DC power supply. ➢...

  • Page 88: Remote Desk

    You can use the application to receive ad-hoc remote support from Autel’s support centre, colleagues, or friends, by allowing them to control your MaxiSys tablet on their PC via the TeamViewer software.
  • Page 89 same time, in order to provide support and take control of the tablet remotely. Provide your ID to the partner, and wait for him/her to send you a remote control request. A message displays to ask for your confirmation to allow remote control on your device.

  • Page 90: Support

    Visit the website: http://pro.autel.com. If you have an Autel account, Sign In with your account ID and password. If you are a new member to Autel, click on the Create Autel ID button on the left side to create an ID.

  • Page 91: My Account

    Personal Info The User Info and Device Info are both included under the Personal Info section. User Info – displays detailed information of your registered online Autel account, ⚫ such as your Autel ID, Name, Address and other contact information.

  • Page 92: User Complaint

    The Service Info section displays a detailed record list of the device’s service history information. Every time the device has been sent back to Autel for repair, the device’s serial number and the detailed repair information, such as the fault type, changed components, or system reinstallation will be recorded and updated to the associated online product account that will be synchronized to the Service Info section.
  • Page 93 Select the required processing time on the last section according to the urgency of the case. Tap Submit to send the completed form to Autel’s online service center, or tap Reset to refill it. The submitted complaints will be carefully read and handled by the service personnel.

  • Page 94: Data Logging

    Tap Send to deliver your message to Support. Communities The Communities section launches and synchronizes with the Technical Forums on Autel’s official website www.autel.com, where you can discuss technical topics or share information with other members of Autel’s online community.
  • Page 95 Figure 13-4 Sample Communities Home Screen ➢ To start a discussion Tap Start a discussion on the Communities Home screen. A list of the major forums is displayed. Based on your interest, select a discussion topic. For example, if you are going to ask a question about the MaxiSys tablet, tap MaxiSys to start a discussion.

  • Page 96: Training Channels

    Training Channels The Training section provides quick links to Autel’s online video accounts. Select a video channel by language to see all available Autel online tutorial videos on such topics as product usage techniques and vehicle diagnostics practices. FAQ Database The FAQ section provides you comprehensive and abundant references for all kinds of questions frequently asked and answered about the use of Autel’s online member...
  • Page 97 Shopping & Payment – displays questions and answers about online product ⚫ purchase and payment methods or procedures.

  • Page 98: Academy

    Academy Autel provides various tutorial articles and technical bulletins produced by top-notch technicians and product experts. Please view the materials that are saved on the tablet or view technical articles from our online forum by clicking the links displayed under this...

  • Page 99: Quick Link

    Quick Link The Quick Link application provides you with convenient access to Autel’s official website and many other well-known sites in automotive service, which offers you abundant information and resources, such as technical help, knowledge base, forums, training, and expertise consultations.

  • Page 100: Maxiscope

    Please download the latest user manual for Autel MaxiScope device from www.autel.com.

  • Page 101: Digital Inspection

    Digital Inspection The Digital Inspection application configures the MaxiSys Diagnostic Device to operate as a digital video scope by simply connecting the tablet to a Digital Inspection Camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

  • Page 102: Additional Accessories

    Additional Accessories The Digital Inspection Camera and its fittings are the additional accessories. Both sizes (8.5 mm and 5.5 mm) of the imager head are optional and available for purchase along with the standard MaxiSys tool kit. Digital Inspection Camera Figure 17-1 Digital Inspection Camera Removable Imager Head Cable –...
  • Page 103 Magnet – picks up small metal objects, such as dropped rings or screws. Hook – unclogs obstacles and picks up wires in the pipes or confined areas. Mirror – helps to look around corners and see the unreachable areas. Figure 17-3 5.5mm Imager Head Accessories Mirror –...
  • Page 104 Hold the accessory and the imager head. Screw the thread part of the accessory over the imager head to fix the accessory. Technical Specifications Table 17-1 Specifications Item Description Optimal Viewing 1" to 14" (2.54cm to 35.56cm) with 8.5mm Distance diameter imager head 3/8"...

  • Page 105: Operations

    Item Description Operating Temperature Main Unit: 0°C to 55°C (ambient) Cable: -10°C to 70°C Storage Temperature -20°C to 75°C (ambient) Waterproof Imager head and cable to 1m Weigh 0.3 kg with 8.5 mm diameter imager head 0.2 kg with 5.5 mm diameter imager head Operations Before performing the Digital Inspection application, the Imager Head Cable must be connected to the tablet through the USB port.
  • Page 106 Tap the Digital Inspection application on the MaxiSys Job Menu. The Digital Inspection application interface displays, showing a camera operating screen. The default camera is now the Imager head. Select the video icon at the lower right corner to record a video. Properly locate the imager head cable to focus the inspection scene for recording.

  • Page 107: Maintenance And Service

    Maintenance and Service To ensure that the tablet and the combined VCI unit perform at their optimum level, we advise that the product maintenance instructions covered in this section is read and followed. Maintenance Instructions The following shows how to maintain your devices, together with precautions to take. Use a soft cloth and alcohol or a mild window cleaner to clean the touch screen of ⚫...

  • Page 108: About Battery Usage

    Your device may have not been connected to the charger properly. Check the ⚫ connector. NOTE If the problems persist, please contact Autel’s technical support personnel or your local selling agent. About Battery Usage Your tablet is powered by a built-in Lithium-ion Polymer battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your tablet’s autonomy due to the “battery memory effect”...

  • Page 109: Service Procedures

    This section introduces information for technical support, repair service, and application for replacement or optional parts. Technical Support If you have any question or problem on the operation of the product, please contact us. AUTEL NORTH AMERICA ⚫ Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST ⚫ Website: www.autel.com ⚫ Email: ussupport@autel.com...
  • Page 110 For technical assistance in other markets, please contact your local selling agent. Repair Service If it becomes necessary to return your device for repair, please download the repair service form from www.autel.com, and fill in the form. The following information must be included: Contact name ⚫...
  • Page 111 Other Services You can purchase the optional accessories directly from Autel’s authorized tool suppliers, and/or your local distributor or agent. Your purchase order should include the following information: Contact information ⚫ Product or part name ⚫ Item description ⚫ Purchase quantity...

  • Page 112: Compliance Information

    Compliance Information FCC Compliance FCC ID: WQ8MAXISYSMS908S This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 113 power required to reach the network. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to antenna should be minimized.

  • Page 114: Warranty

    Warranty 12-Month Limited Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiSys Diagnostic Device that should this product or any part thereof during normal usage and under normal conditions be proven defective in...

This manual is also suitable for:
