General Introduction

There are two main components to the MaxiSys Elite II Pro system:
MaxiSys Tablet — the central processor and monitor for the system.

 MaxiFlash VCI — Vehicle Communication Interface.
This manual describes the construction and operation of these devices and how they
work together to deliver diagnostic solutions.

2.1 MaxiSys Tablet

2.1.1 Functional Description
1. 9.7" LED Capacitive Touchscreen
Ambient Light Sensor — detects ambient light brightness
2.
3. Microphone

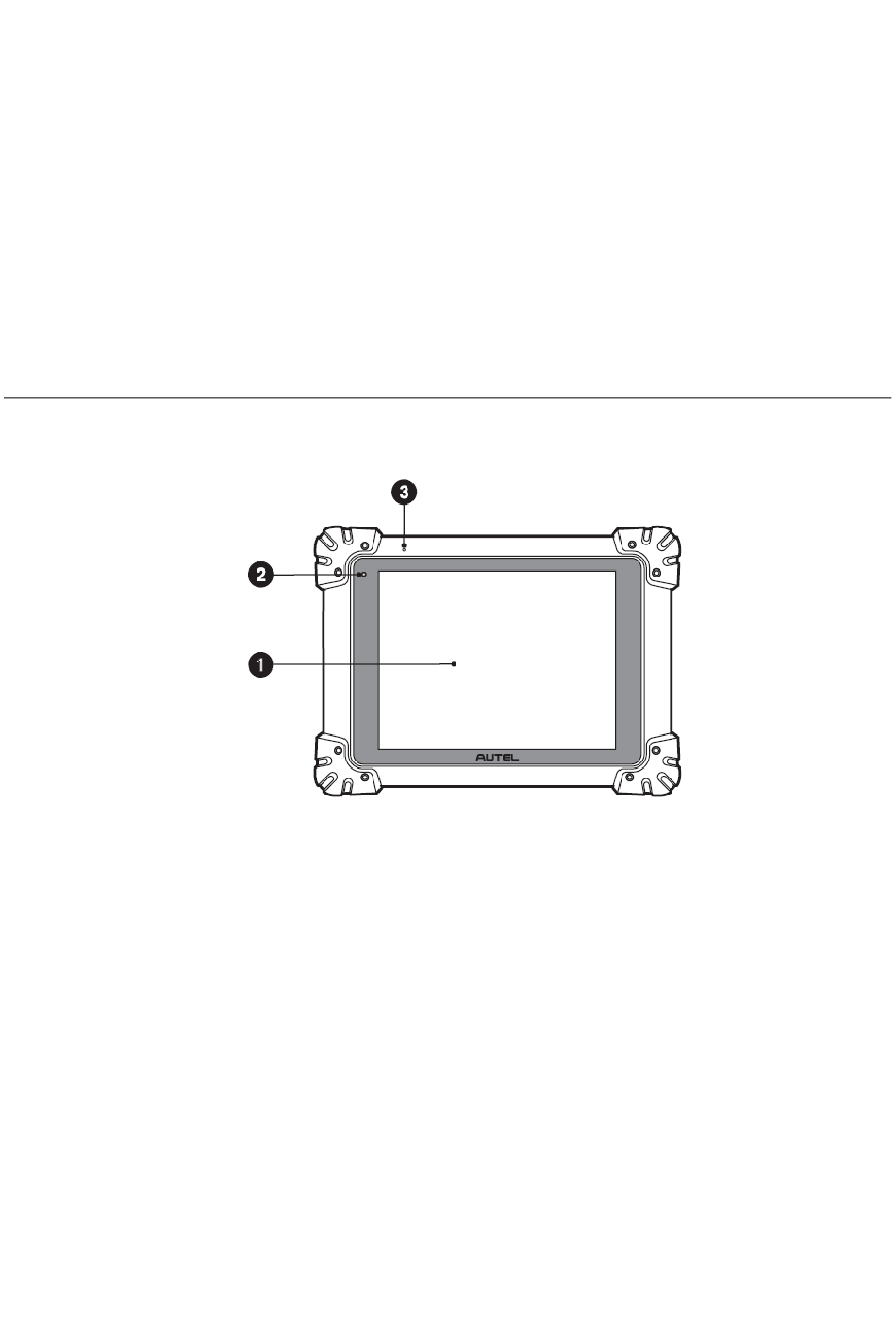

Figure 2-1 MaxiSys Tablet, Front View
