INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Each step has its own packet of bolts and nuts (look for sticker indicating what step the packet will be used for)
• Ensure all nuts and bolts are tightened properly before moving onto the next step.
• Basic tools, such as an Allen Key will be provided for assembly but additional tools will be required for complete
and safe assembly.
IMPORTANT NOTICE: Some of the smaller parts may be pre-fitted to larger components, please ensure you check
carefully before contacting us regarding any missing parts.
TOOLS REQUIRED
2 X ADJUSTABLE
RUBBER
WRENCHES
MALLET
1. BASE
(2 PCS)
9. FOOT PLATE
(1 PC)
11. RIGHT ARM
(1 PC)
16. TOP FRAME
(1 PC)
#21M05T035 Multifunction Smith Machine UM A4.indd 6

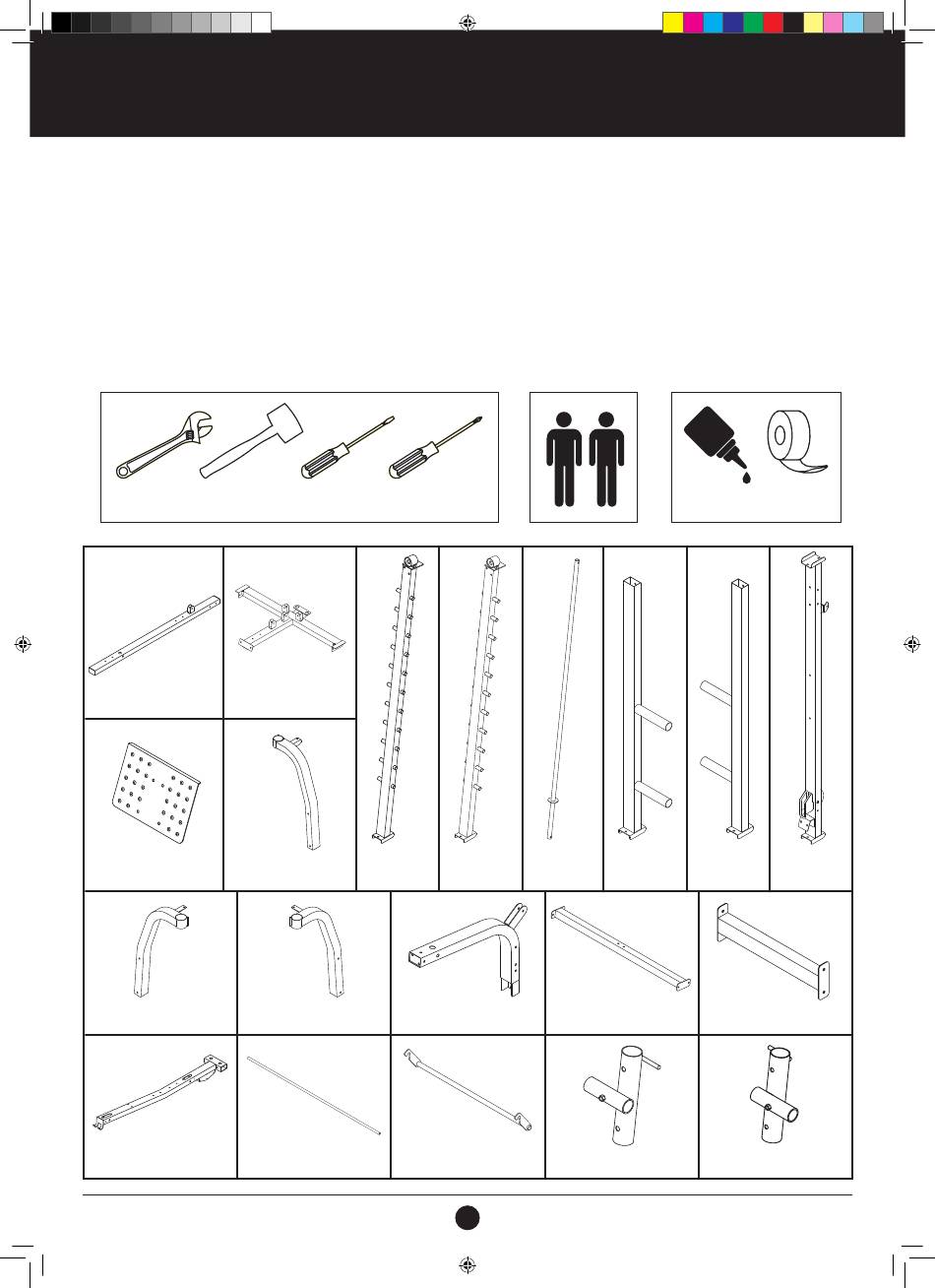

HARDWARE & TOOLS LIST
STANDARD PHILLIPS
SCREWDRIVER SCREWDRIVER
2. CENTRE BASE
(1 PC)
3. LEFT
10. LEFT ARM UPRIGHT
(1 PC) (1 PC)
12. ARM FRAME 13. SIDE TOP FRAME
(1 PC)
17. WEIGHT BAR 18. LOCKING BAR
(1 PC)
PERSONS REQUIRED
4. RIGHT 5. WEIGHT
UPRIGHT BAR GUIDE SUPPORT
(1 PC) (2 PCS)
14. CENTRE TOP FRAME
(2 PCS) (1 PC)
19. RIGHT CARRIAGE
(1 PC) (1 PC)
6
INCLUDES
Grease Tape
6. LEFT 7. RIGHT 8. BACKREST
SUPPORT UPRIGHT
(1 PC) (1 PC) (1 PC)
15. SUPPORT FRAME
(2 PCS)
20. LEFT CARRIAGE
(1 PC)
