Trojan MULTIFUNTION SMITH MACHINE User Manual page 44

STEP 56
50
50
82
82
STEP 57
STEP 58
109
109
135
135
82
82
#21M05T035 Multifunction Smith Machine UM A4.indd 44
ASSEMBLY STEPS
108
108
50
50
82
82
78
78
107
107
108
108
143
143
105
105
84 84
107
107
Hexagonal
Hexagonal
Holes
79
Holes
79

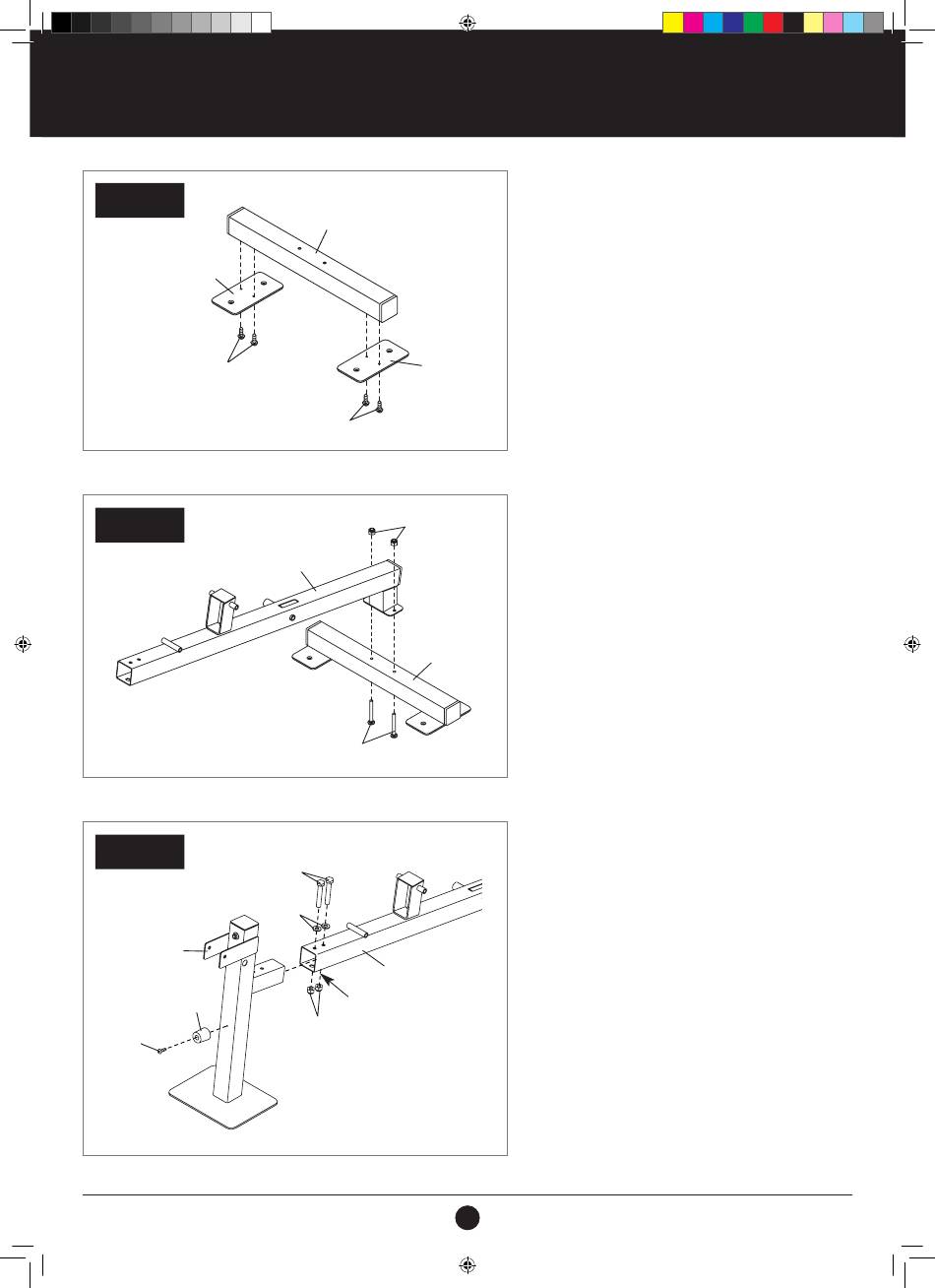

STEP 56:
1. Attach two Stabiliser Feet (50) to the
Bench Stabiliser (108) with four M4 x 19 mm
Self-tapping Screws (82).
STEP 57:
1. Attach the Bench Stabiliser (108) to the Bench
Frame (107) with two M8 x 76 mm Carriage Bolts
(143) and two M8 Locknuts (78).
Do not tighten the Locknuts yet.
STEP 58:
1. Attach the Leg Bumper (135) to the Front Leg
(109) with an M4 x 19 mm Self-tapping Screw
(82).
2. Attach the Front Leg (109) to the Bench Frame
(107) with two M10 x 75 mm Bolts (105), two
M10 Washers (84), and two M10 Locknuts (79).
Make sure that the Locknuts are inside the
indicated hexagonal holes.
3. See step 57. Tighten the M8 Locknuts (78).
44
