Trojan MULTIFUNTION SMITH MACHINE User Manual page 51

7
110
110
124
124
#21M05T035 Multifunction Smith Machine UM A4.indd 51

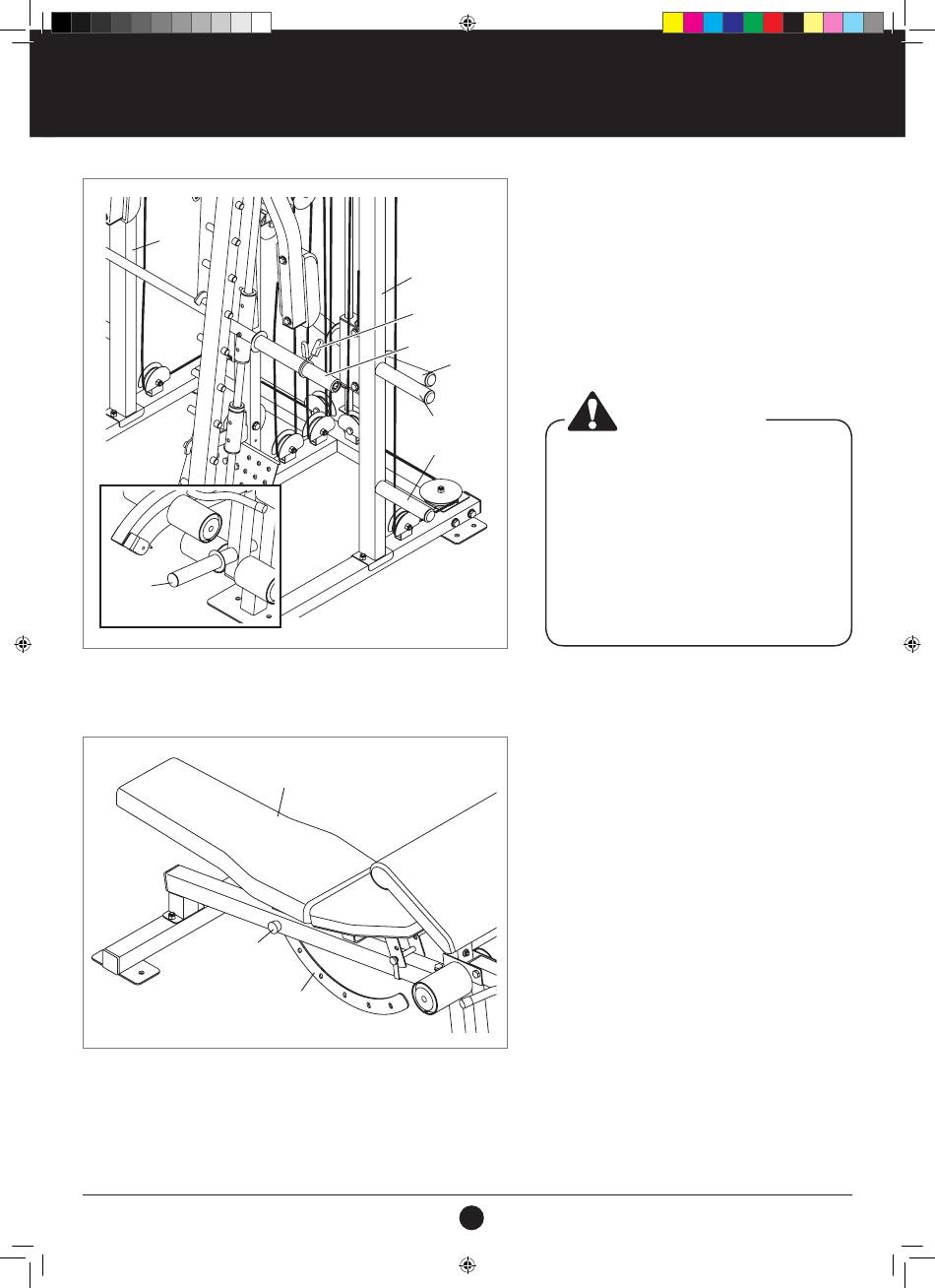

ADJUSTMENTS AND ACCESSORIES
6
6
91
91
17
17
Storage
Storage
Tubes Tubes
117
117
111
111
ADDING WEIGHT:
1. Slide the desired amount of weight (not
included) onto the Weight Carriage (41), the
Weight Bar (17), the Leg Lever (110), or your
barbell (not included).
2. Secure the weights with the Spring Collars (91).
3. Store unused weight on the storage tubes on
41 41
the Supports (6, 7).
WARNING
DO NOT PLACE MORE THAN 68 KG ON
THE WEIGHT CARRIAGE (41). DO NOT
PLACE MORE THAN 141 KG ON THE
WEIGHT BAR (17), OR ON THE BARBELL
RESTS (NOT SHOWN), INCLUDING THE
BARBELL. ALWAYS PLACE THE SAME
AMOUNT OF WEIGHT ON BOTH SIDES OF
THE WEIGHT CARRIAGE, WEIGHT BAR,
OR BARBELL.
ADJUSTING THE BACKREST:
1. Hold the Backrest (117) with one hand and
disengage the Bench Knob (124) from the
Backrest Bracket (111).
2. Move the Backrest to the desired position and
re-engage the Bench Knob.
51
