Trojan MULTIFUNTION SMITH MACHINE User Manual page 23

STEP 13
3
3
STEP 14
Decal
Decal
97
97
#21M05T035 Multifunction Smith Machine UM A4.indd 23
ASSEMBLY STEPS
90
90
84
84
79
79
14
14
97
97
66
66
13
13
66
66
33
33
84
84
79
79

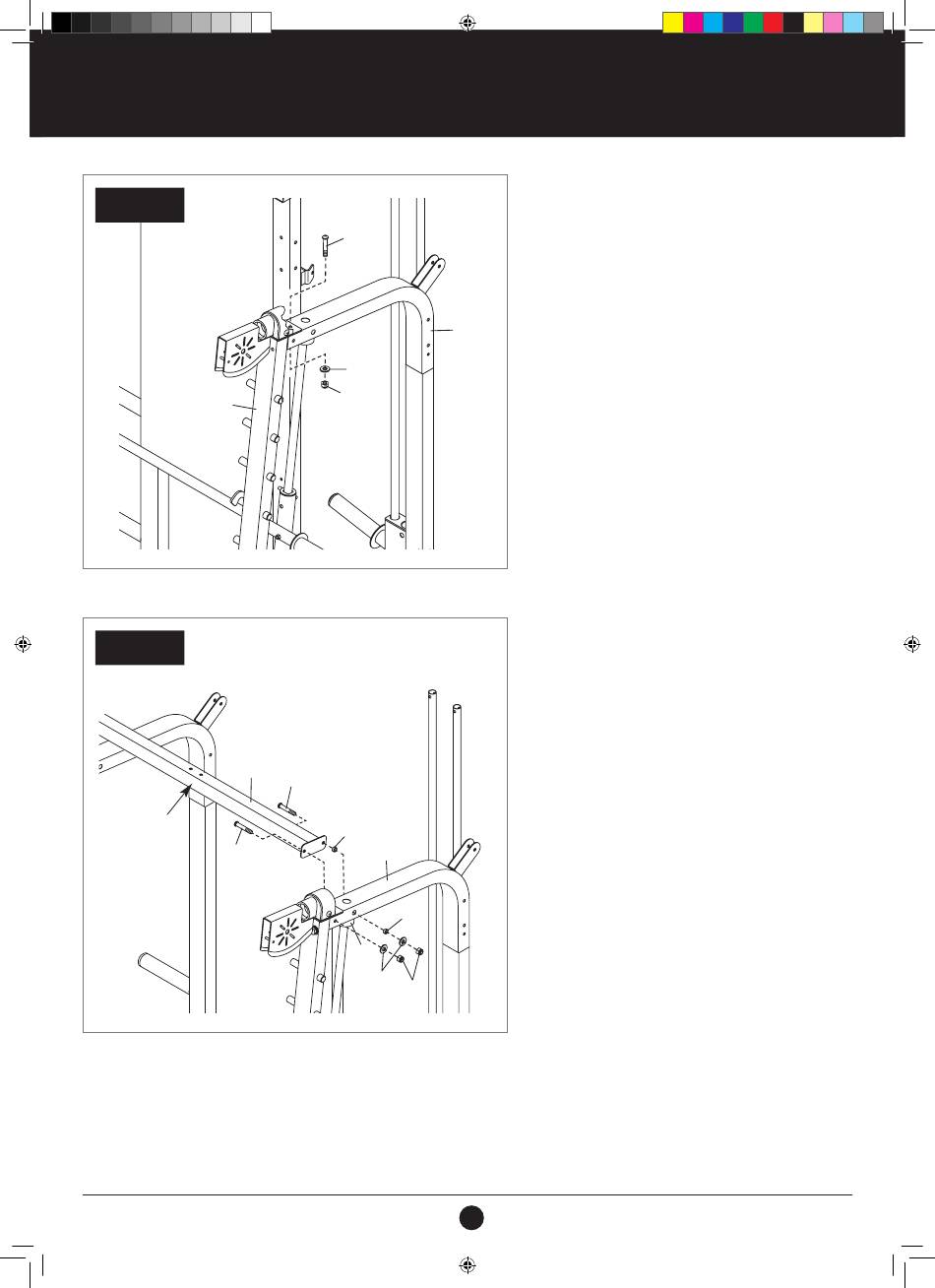

STEP 13:
1. Insert an M10 x 68 mm Bolt (90) through the
Left Upright (3) and the Side Top Frame (13).
2. Hand tighten an M10 Washer (84) and an M10
Locknut (79) onto the Bolt.
3. Repeat this step with the other Side Top
13
13
Frame (13) and the right side of the weight rack.
STEP 14:
1. Orient the Centre Top Frame (14) so that the
decal is in the position shown. Make sure that
the Guide Cap (33) is inside the left Side Top
Frame (13).
2. Attach the Centre Top Frame (14) to the Side
Top Frame (13) with two M10 x 93 mm
Bolts (97), two 17 mm Spacers (66), two M10
Washers (84), and two M10 Locknuts (79).
Do not tighten the Locknuts yet.
3. Repeat this step with the right Side Top Frame
(not shown).
23
