Trojan MULTIFUNTION SMITH MACHINE User Manual page 41

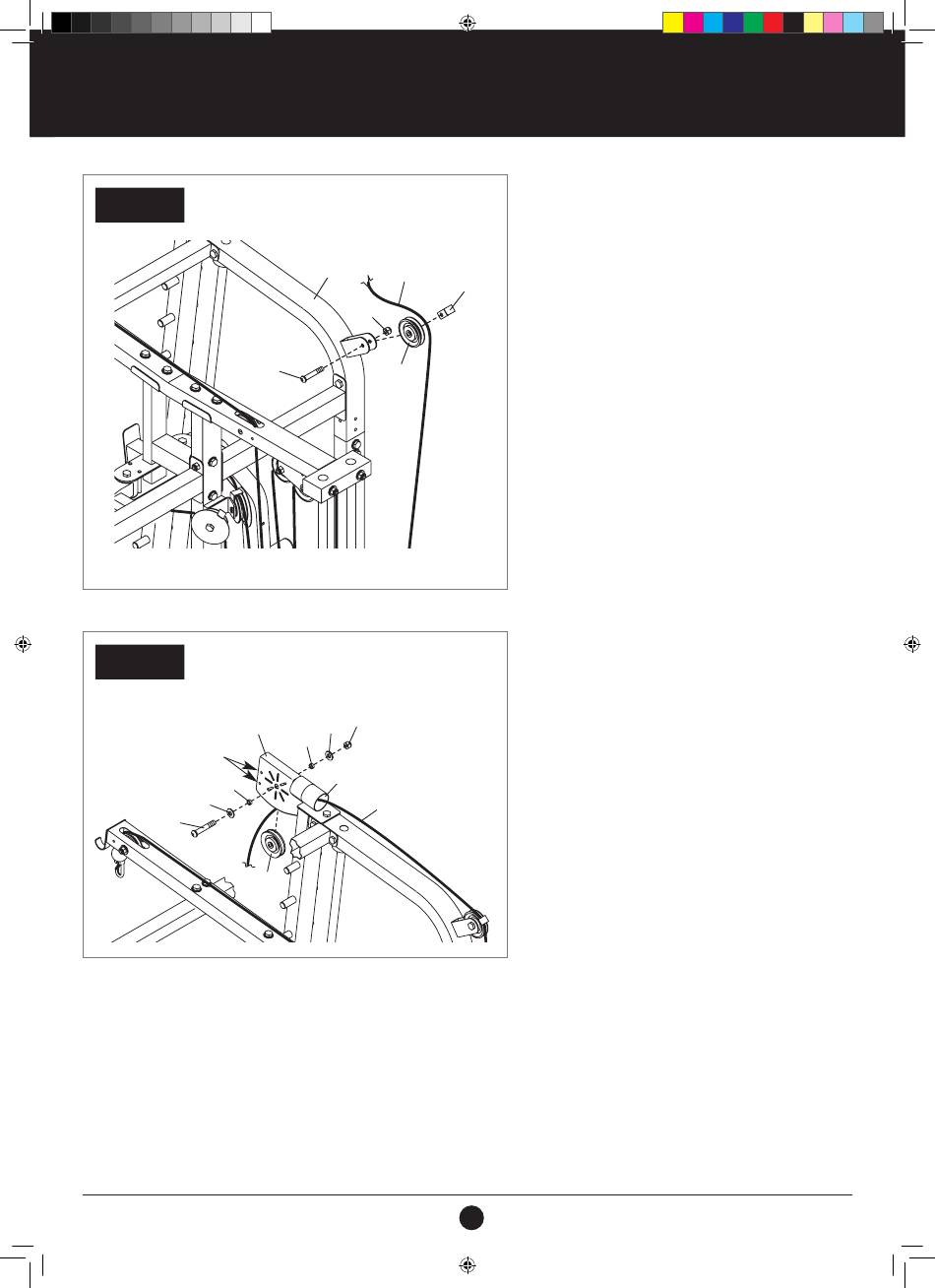

STEP 49
STEP 50
Rods Rods
75
75
84
84
137
137
#21M05T035 Multifunction Smith Machine UM A4.indd 41
ASSEMBLY STEPS
REAR OF THE WEIGHT RACK
13
13
54 54
79
79
104
104
58
58
REAR OF THE WEIGHT RACK
84 79
79
84
32 32
75 75
4 4
54 58
58
58
STEP 49:
1. Route the Long Cable (54) over a 90 mm
Pulley (58).
2. Attach the 90 mm Pulley and a Plastic Cable
63
63
Trap (63) to the right Side Top Frame (13) with
an M10 x 50 mm Bolt (104) and an M10 Locknut
(79).
Make sure that the Plastic Cable Trap is
oriented to hold the Long Cable in the
groove of the 90 mm Pulley.
STEP 50:
1. Atta Route the Long Cable (54) through the
Right Upright (4) and a Swivel Arm (32).
Make sure that the Long Cable is routed on
the indicated side of the small rods inside
the Swivel Arm.
2. Then, route the Long Cable (54) over a 90 mm
Pulley (58).
3. Attach the 90 mm Pulley inside the Swivel Arm
(32) with an M10 x 53 mm Bolt (137), two M10
Washers (84), two 6 mm Spacers (75), and an
M10 Locknut (79).
41
