Trojan MULTIFUNTION SMITH MACHINE User Manual page 18

STEP 3
2
2
STEP 4
8
8
79
79
#21M05T035 Multifunction Smith Machine UM A4.indd 18
ASSEMBLY STEPS
79
79
84
84
1
1
79
79
2
2
83
83

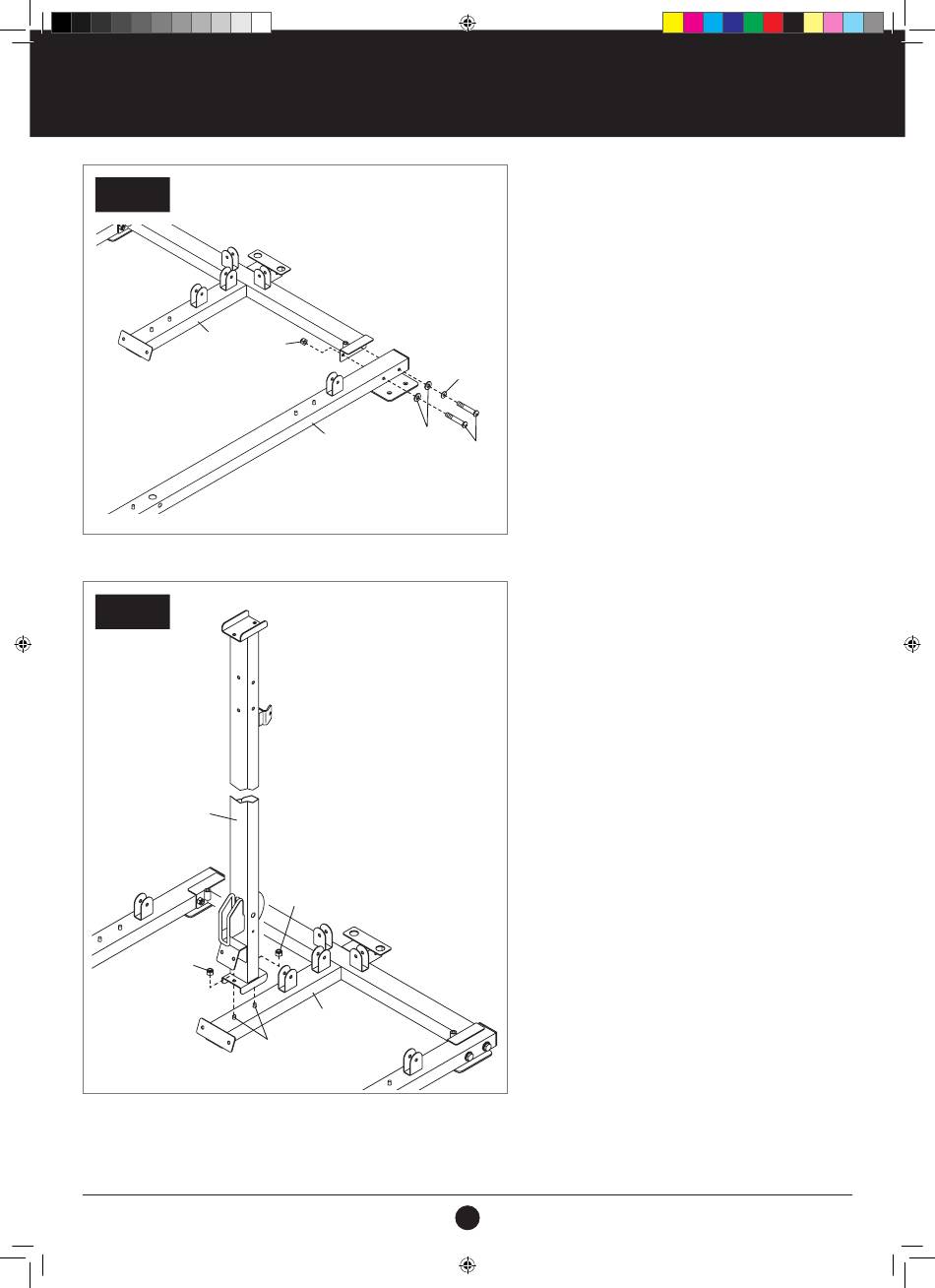

STEP 3:
1. Attach a Base (1) to the Centre Base (2) with
two M10 x 93 mm Bolts (97), an M10 Split
Washer (93), two M10 Washers (84), and an
M10 Locknut (79).
Do not tighten the Button Bolts yet.
2. Attach the other Base (not shown) to the
Centre Base (2) in the same way.
93
93
97
97
STEP 4:
1. Attach the Backrest Upright (8) to the Centre
Base (2) with the indicated two M10 x 65 mm
Carriage Bolts (83) and two M10 Locknuts (79).
Do not tighten the Locknuts yet.
18
