Trojan MULTIFUNTION SMITH MACHINE User Manual page 38

STEP 43
103 103
59
59
62
62
STEP 44
96
96
40
40
#21M05T035 Multifunction Smith Machine UM A4.indd 38
ASSEMBLY STEPS
REAR OF THE WEIGHT RACK
102
102
84
84
54
54
2
2
79 79
REAR OF THE WEIGHT RACK
58
58
40
2 40
2
79 79
54
54

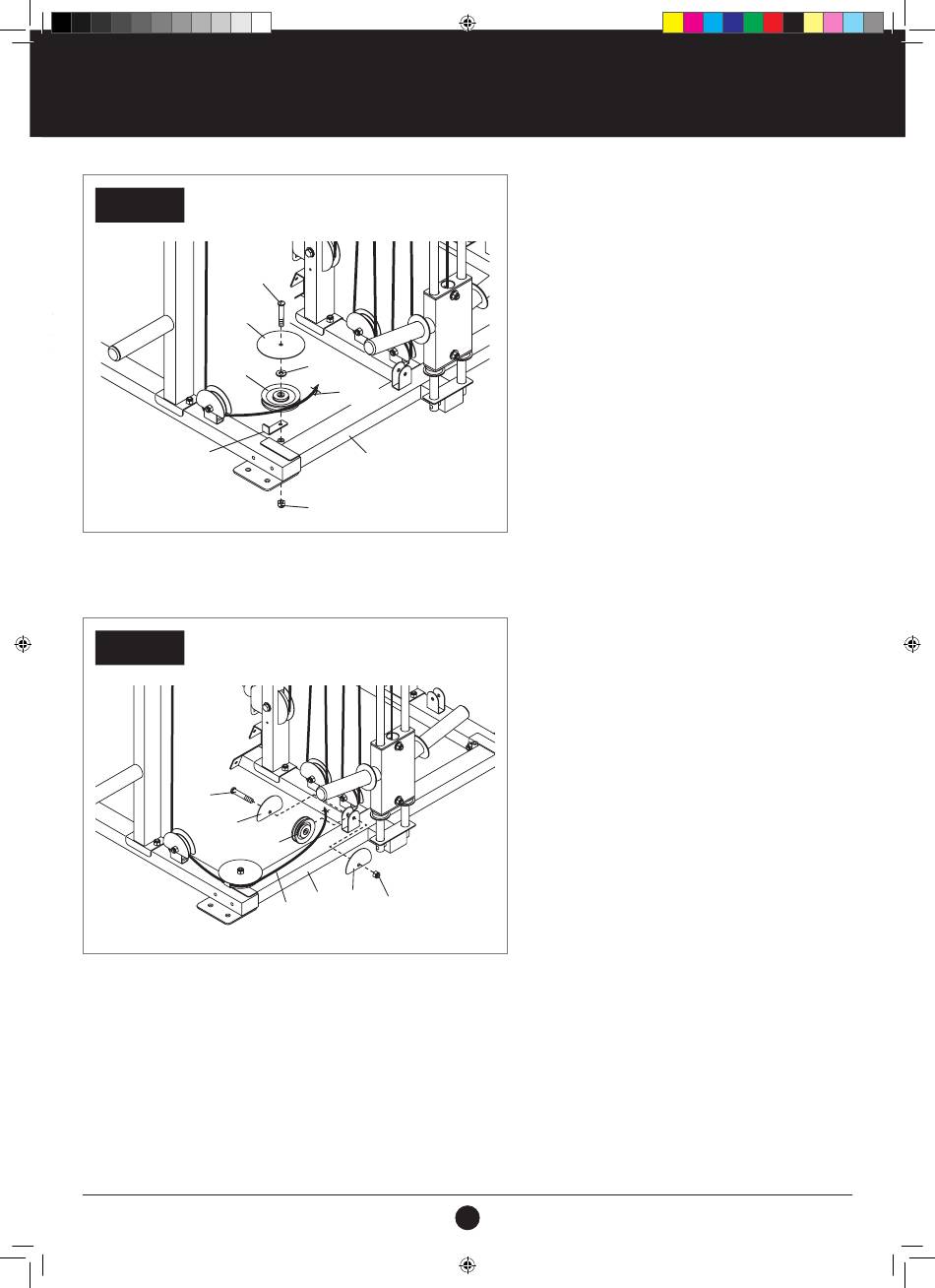

STEP 43:
1. Route the Long Cable (54) around a 115 mm
Pulley (59). Attach the 115 mm Pulley, a Long
Metal Cable Trap (62), an M10 Washer (84), and
a Large Full Guard (103) to the Centre Base (2)
with an M10 x 75 mm Button Bolt (102) and an
M10 Locknut (79).
Make sure that the Long Metal Cable Trap
is oriented to hold the Long Cable in the
groove of the 115 mm Pulley.
STEP 44:
1. Route the Long Cable (54) under a 90 mm Pulley
(58). Attach the 90mm Pulley and two Half
Guards (40) to the Centre Base (2) with an
M10 x 45 mm Bolt (96) and an M10 Locknut (79).
38
