Trojan MULTIFUNTION SMITH MACHINE User Manual page 25

STEP 17
12
11
11
STEP 18
101
101
84
84
14
14
84
84
79
79
#21M05T035 Multifunction Smith Machine UM A4.indd 25
ASSEMBLY STEPS
144
144
Grease
Grease
31
31
12
79 79
31
31
Grease
Grease
10
10
16
16

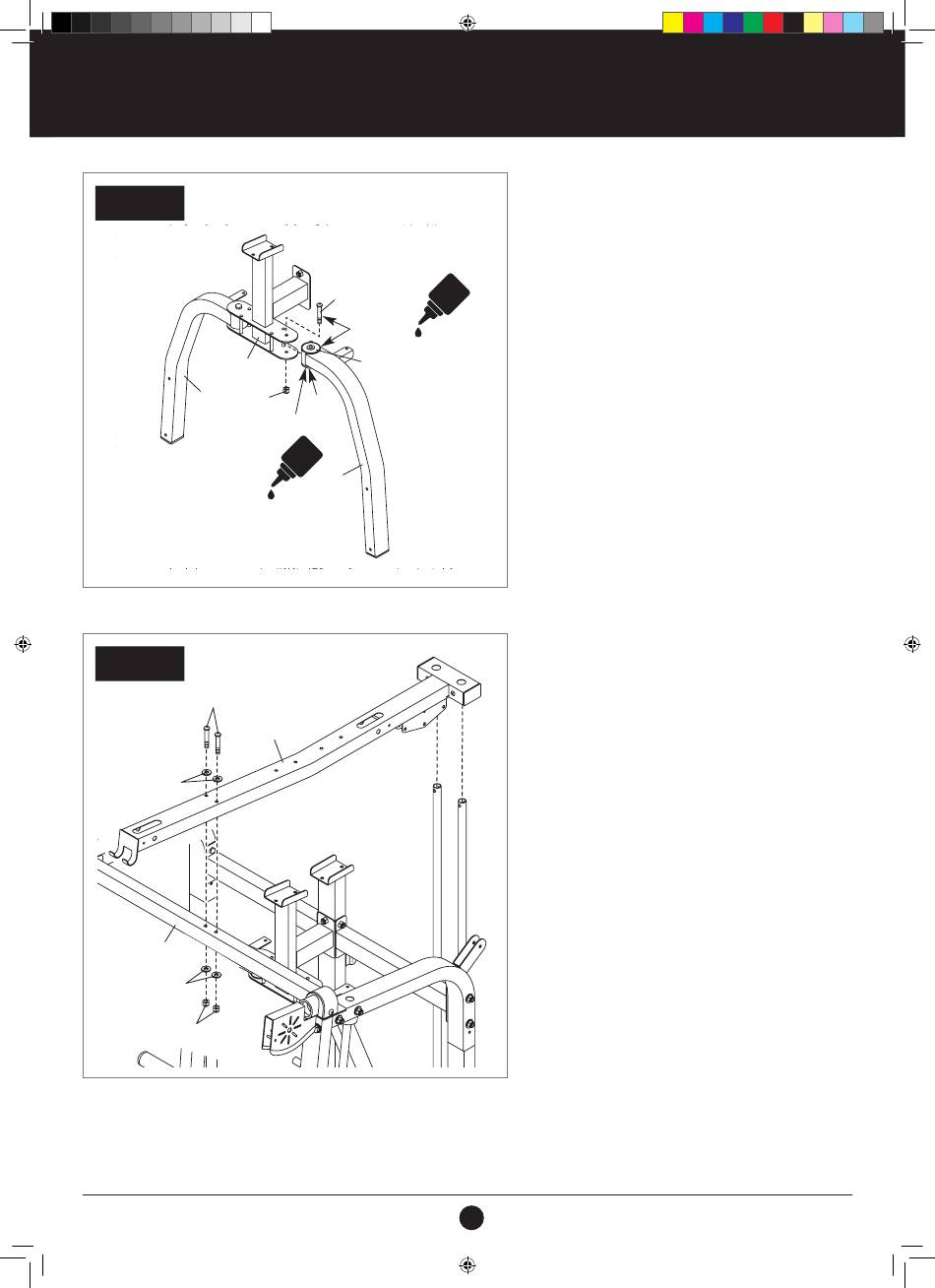

STEP 17:
1. Apply some of the included grease to an M10 x
85 mm Bolt (144) and to the two Arm Bushings
(31) in the Left Arm (10).
2. Attach the Left Arm (10) to the Arm Frame
(12) with the M10 x 85 mm Bolt (144) and an
M10 Locknut (79). Do not overtighten the
Locknut; the Left Arm must pivot easily.
3. Repeat this step with the Right Arm (11).
STEP 18:
1. Attach the Top Frame (16) to the Centre Top
Frame (14) with two M10 x 115 mm Bolts (101),
four M10 Washers (84), and two M10 Locknuts
(79). Do not tighten the Locknuts yet.
25
