Trojan MULTIFUNTION SMITH MACHINE User Manual page 27

STEP 21
77 77
77
77
STEP 22
#21M05T035 Multifunction Smith Machine UM A4.indd 27
ASSEMBLY STEPS
79
79
8
8
2
2
79
79
9
9
REAR OF THE WEIGHT RACK
85
85
71 71
78
79
11
11
71
71
Flat Side
Flat Side

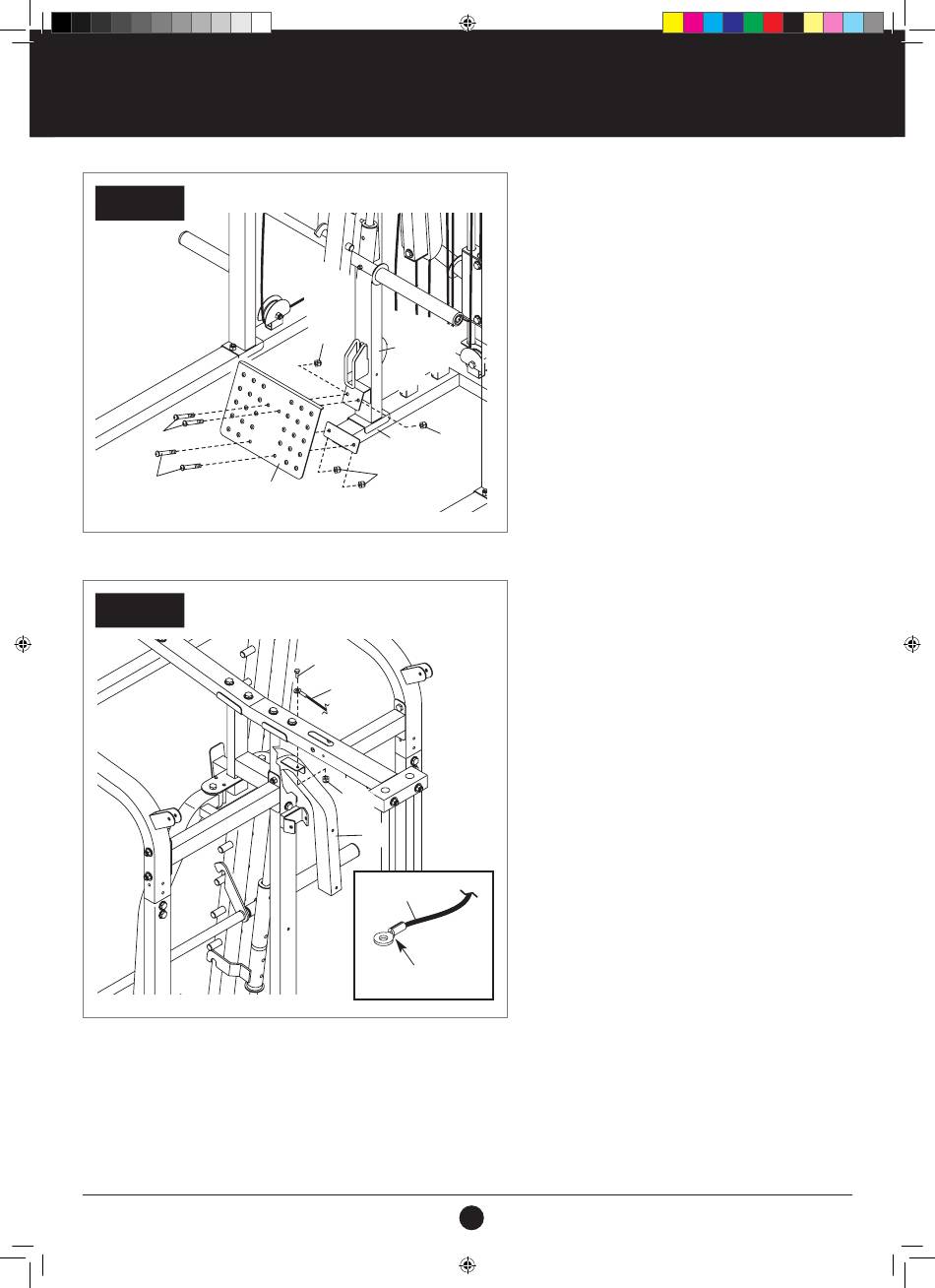

STEP 21:
1. Attach the Foot Plate (9) to the Centre Base (2)
and the Backrest Upright (8) with four M10 x
20 mm Button Bolts (77) and four M10
Locknuts (79).
See steps 3–8, 12, 14–16, and 18–20. Tighten
all of the Bolts, Screws, and Locknuts used
in these steps.
79
79
STEP 22:
1. See the CABLE DIAGRAMS on pages 53 and 54 to
identify the cables as you assemble them.
2. Identify the Butterfly Cable (71).
3. See the inset drawing. Orient one end of the
Butterfly Cable (71) so that the flat side is facing
downward as shown.
4. Attach the end of the Butterfly Cable (71) to
the Right Arm (11) with an M8 x 20 mm Shoulder
Bolt (85) and an M8 Locknut (78).
Do not overtighten the Locknut; the
Butterfly Cable must pivot easily.
NOTE: STEPS 22–51 ARE SHOWN FROM
THE REAR OF THE WEIGHT RACK.
27
