Trojan MULTIFUNTION SMITH MACHINE User Manual page 30

STEP 27
58
58
Rod
Rod
55
55
79
79
84
84
52
52
STEP 28
16
16
79
79
#21M05T035 Multifunction Smith Machine UM A4.indd 30
ASSEMBLY STEPS
REAR OF THE WEIGHT RACK
73 89
73
89
84
84
55
55
16
16
100
100
53
53
REAR OF THE WEIGHT RACK
73 73
58
58
84 89
84
55
55
55
55
84
84

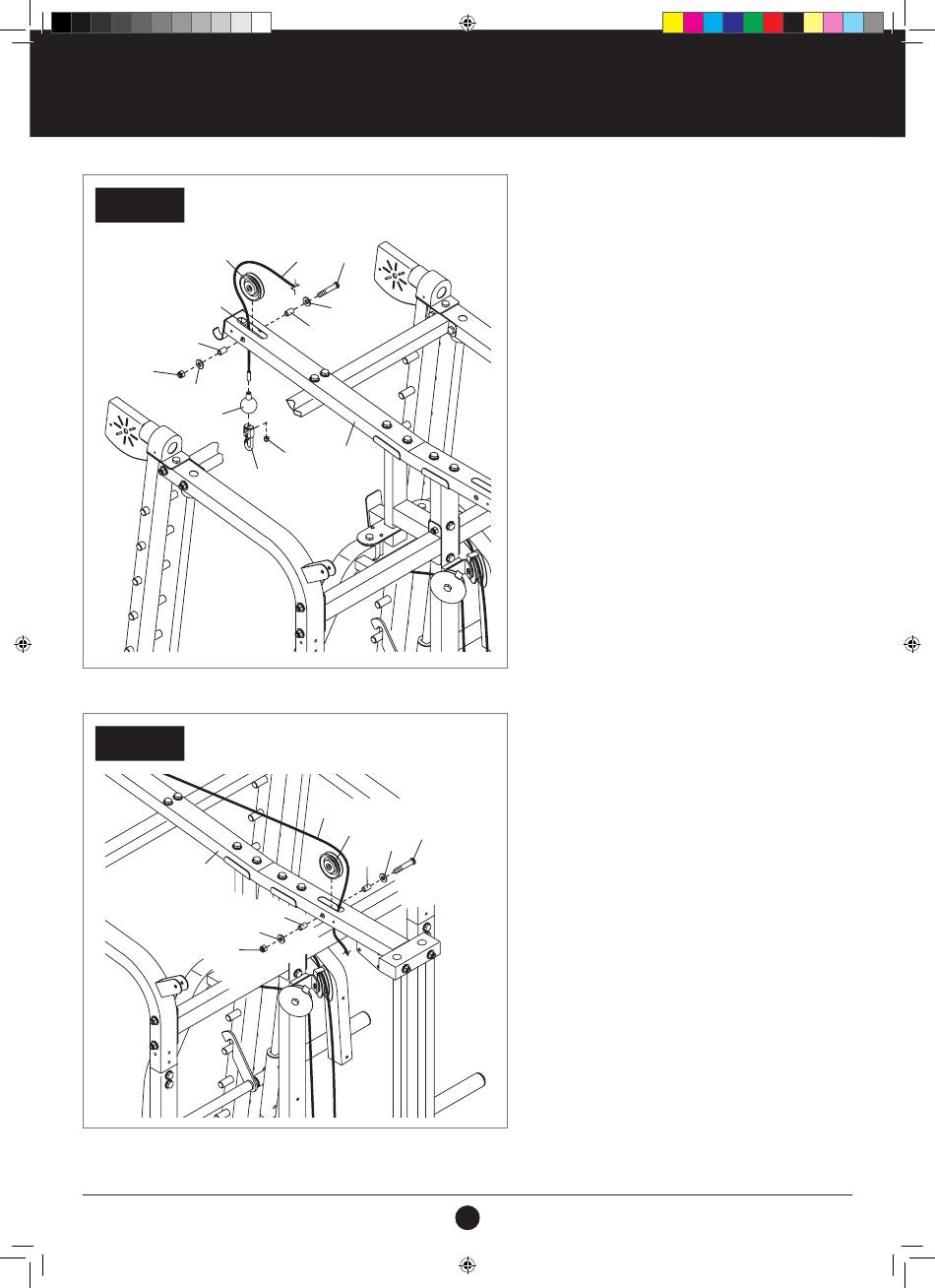

STEP 27:
IDENTIFY THE HIGH CABLE (73)
1. Slide a Cable Stop (52) onto the High Cable (73).
2. Hold an M6 Locknut (100) inside a Clip (53), and
insert the High Cable (73) into the Clip and the
Locknut.
3. Next, hold the crimp on the High Cable with
pliers, and insert a screwdriver between the Clip
and the Locknut.
4. Rotate the screwdriver, the Clip, and the Locknut
together until at least two threads of the High
Cable show past the Locknut.
5. Then, slide the Cable Stop (52) onto the Clip (53).
6. Next, route the High Cable (73) upward through
the Top Frame (16) and over a 90 mm Pulley
(58). Attach the 90 mm Pulley inside the Top
Frame with an M10 x 90 mm Bolt (89), two M10
Washers (84), two 25 mm Spacers (55), and an
M10 Locknut (79).
STEP 28:
1. Route the High Cable (73) over a 90 mm Pulley
(58) and downward through the Top Frame (16).
2. Attach the 90 mm Pulley inside the Top Frame
89
with an M10 x 90 mm Bolt (89), two M10
Washers (84), two 25 mm Spacers (55), and
an M10 Locknut (79).
30
