Trojan MULTIFUNTION SMITH MACHINE User Manual page 29

STEP 25
60
60
39
39
STEP 26
10
10
71
71
Flat Side
Flat Side
#21M05T035 Multifunction Smith Machine UM A4.indd 29
ASSEMBLY STEPS
REAR OF THE WEIGHT RACK
8
8
61
61
79
79
39
39
84
84
71
71
88
88
REAR OF THE WEIGHT RACK
85
85
71
71
78
78

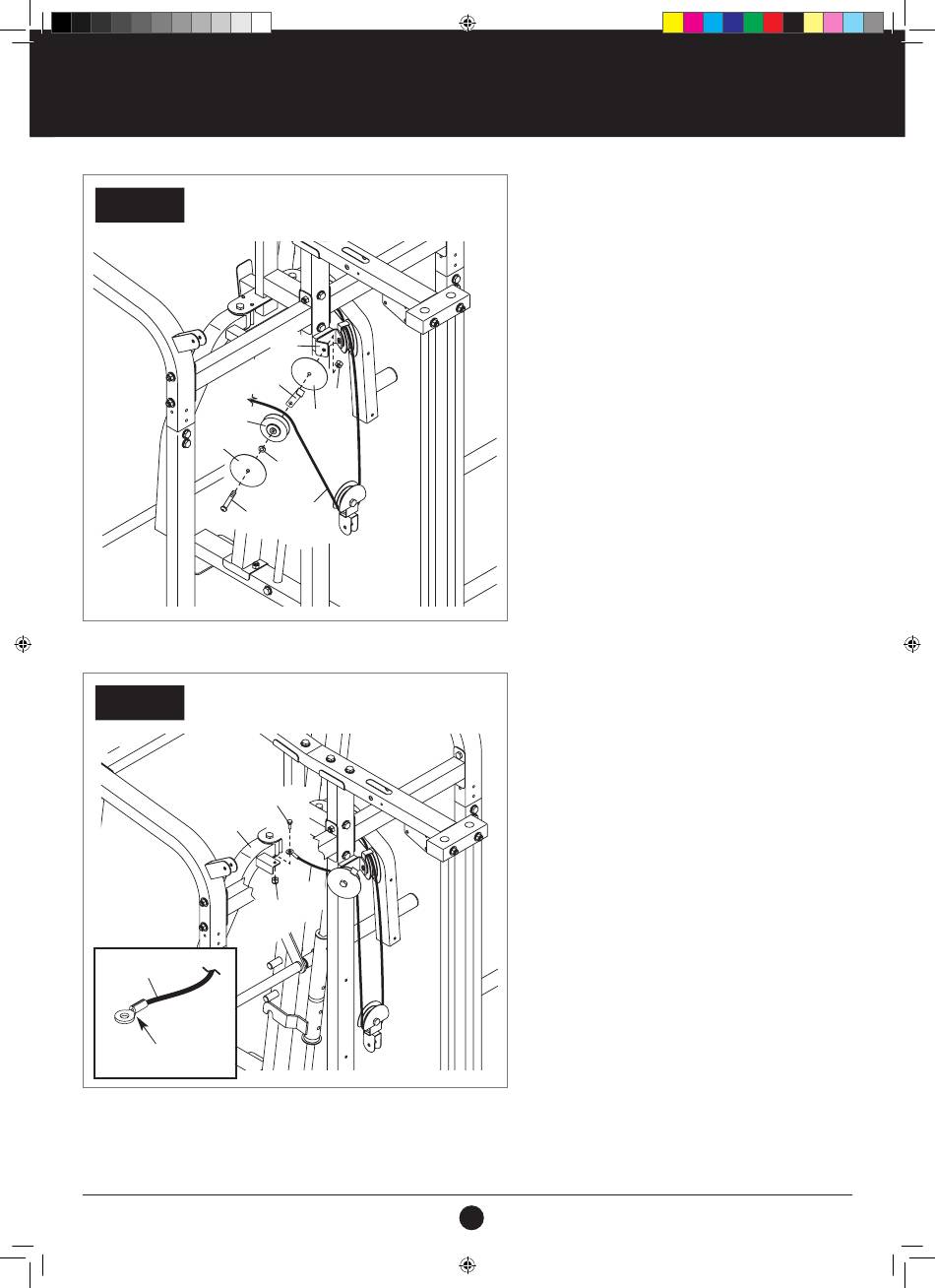

STEP 25:
1. Route the Butterfly Cable (71) over a V-pulley
(60). Attach the V-pulley, a Short Metal Cable
Trap (61), an M10 Washer (84), and two Full
Guards (39) to the Backrest Upright (8) with an
M10 x 63 mm Bolt (88) and an M10 Locknut (79).
Make sure that the Short Metal Cable Trap is
oriented to hold the Butterfly Cable in the
groove of the V-pulley.
STEP 26:
1. See the inset drawing. Orient the other end of
the Butterfly Cable (71) so that the flat side is
facing downward as shown.
2. Attach the Butterfly Cable (71) to the Left Arm
(10) with an M8 x 20 mm Shoulder Bolt (85)
and an M8 Locknut (78). Do not overtighten the
Locknut; the Butterfly Cable must pivot easily.
29
