Trojan MULTIFUNTION SMITH MACHINE User Manual page 33

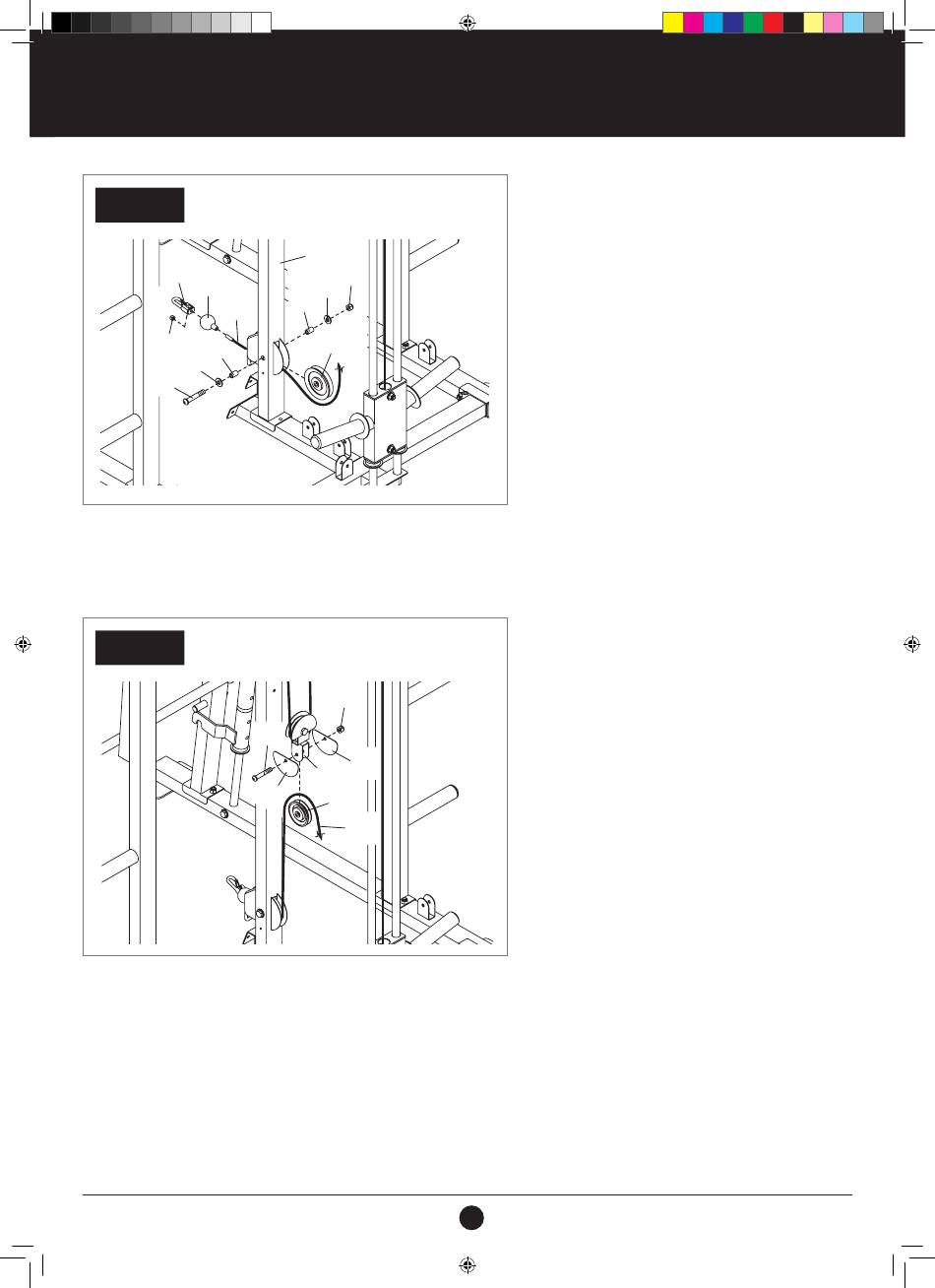

STEP 33
53
53
52
52
72
72
100
100
55
55
84 84
89
89
STEP 34
#21M05T035 Multifunction Smith Machine UM A4.indd 33
ASSEMBLY STEPS
REAR OF THE WEIGHT RACK
8
8
79 79
84
84
55
55
59 59
REAR OF THE WEIGHT RACK
79 79
96
96
40
40
46
40
40
40 58
58
72
72
STEP 33:
IDENTIFY THE LOW CABLE (72)
1. Attach a Cable Stop (52), a Clip (53), and an M6
Locknut (100) to the Low Cable (72) as described
in step 27. Make sure that at least two threads
of the Low Cable show past the Locknut.
2. Next, route the Low Cable (72) through the
Backrest Upright (8) and under a 115 mm Pulley
(59). Attach the 115 mm Pulley inside the
Backrest Upright with an M10 x 90 mm Bolt (89),
two M10 Washers (84), two 25 mm Spacers (55),
and an M10 Locknut (79).
STEP 34:
1. Route the Low Cable (72) over a 90 mm Pulley
(58). Attach the 90 mm Pulley and two Half
Guards (40) to the Double U-bracket (46) with
an M10 x 45 mm Bolt (96) and an M10 Locknut
(79).
33
