Trojan MULTIFUNTION SMITH MACHINE User Manual page 32

STEP 31
STEP 32
90
90
84
84
#21M05T035 Multifunction Smith Machine UM A4.indd 32
ASSEMBLY STEPS
REAR OF THE WEIGHT RACK
79
79
73
73
58
58
REAR OF THE WEIGHT RACK
73
73
45
45
45
45
41
41
84
84
44
44
42
42

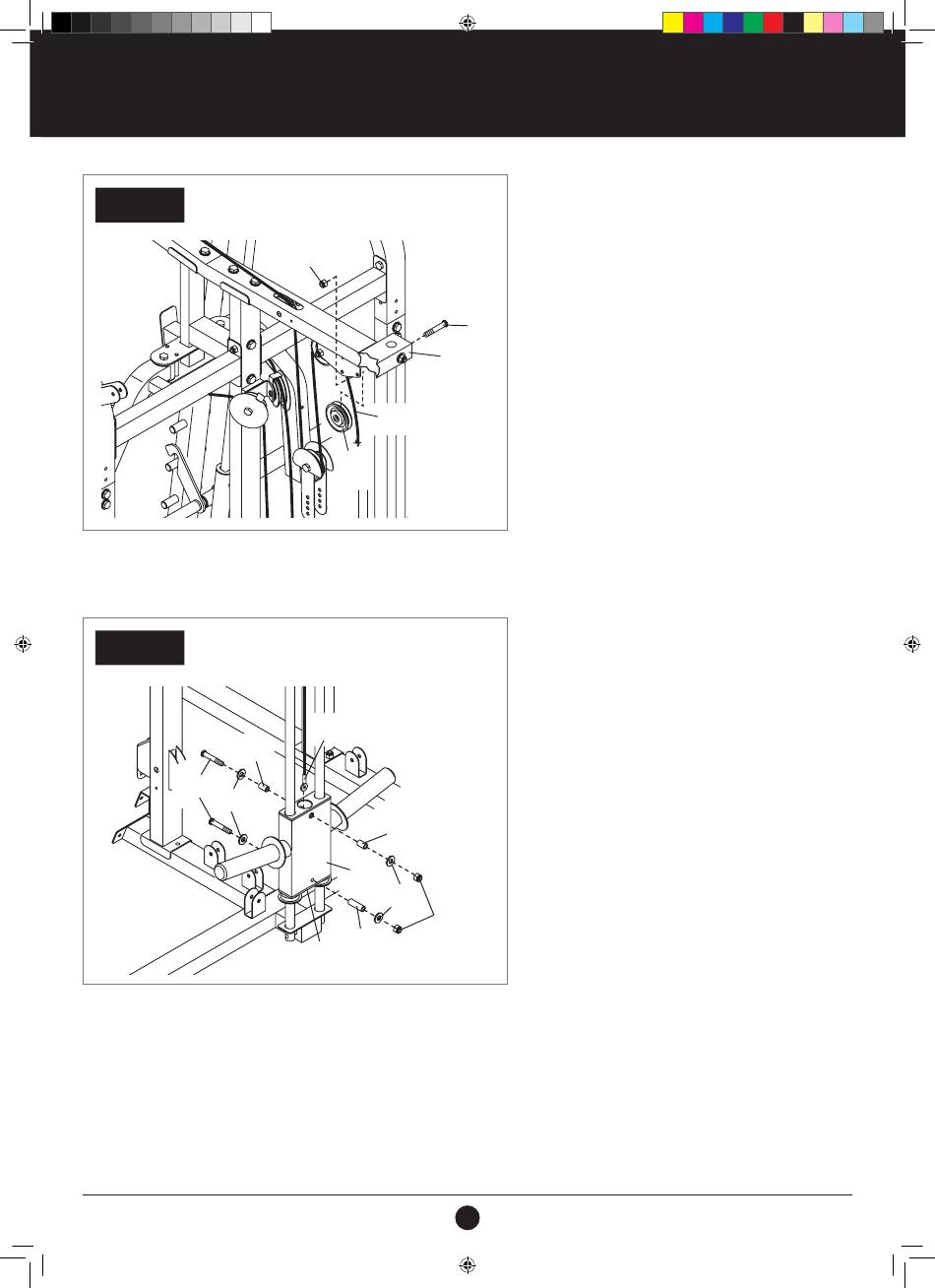

STEP 31:
1. Wrap the High Cable (73) over a 90 mm Pulley
(58). Attach the 90 mm Pulley to the Top Frame
(16) with an M10 x 45 mm Bolt (96) and an M10
Locknut (79).
96
96
16
16
STEP 32:
1. Attach the High Cable (73) inside the Weight
Carriage (41) with an M10 x 68 mm Bolt (90),
two M10 Washers (84), two 24 mm Spacers (45),
and an M10 Locknut (79).
2. Attach the lower Carriage Bushing (42) inside the
Weight Carriage (41) with an M10 x 68 mm
Bolt (90), two M10 Washers (84), a 50 mm
Spacer (44), and an M10 Locknut (79).
79
79
32
