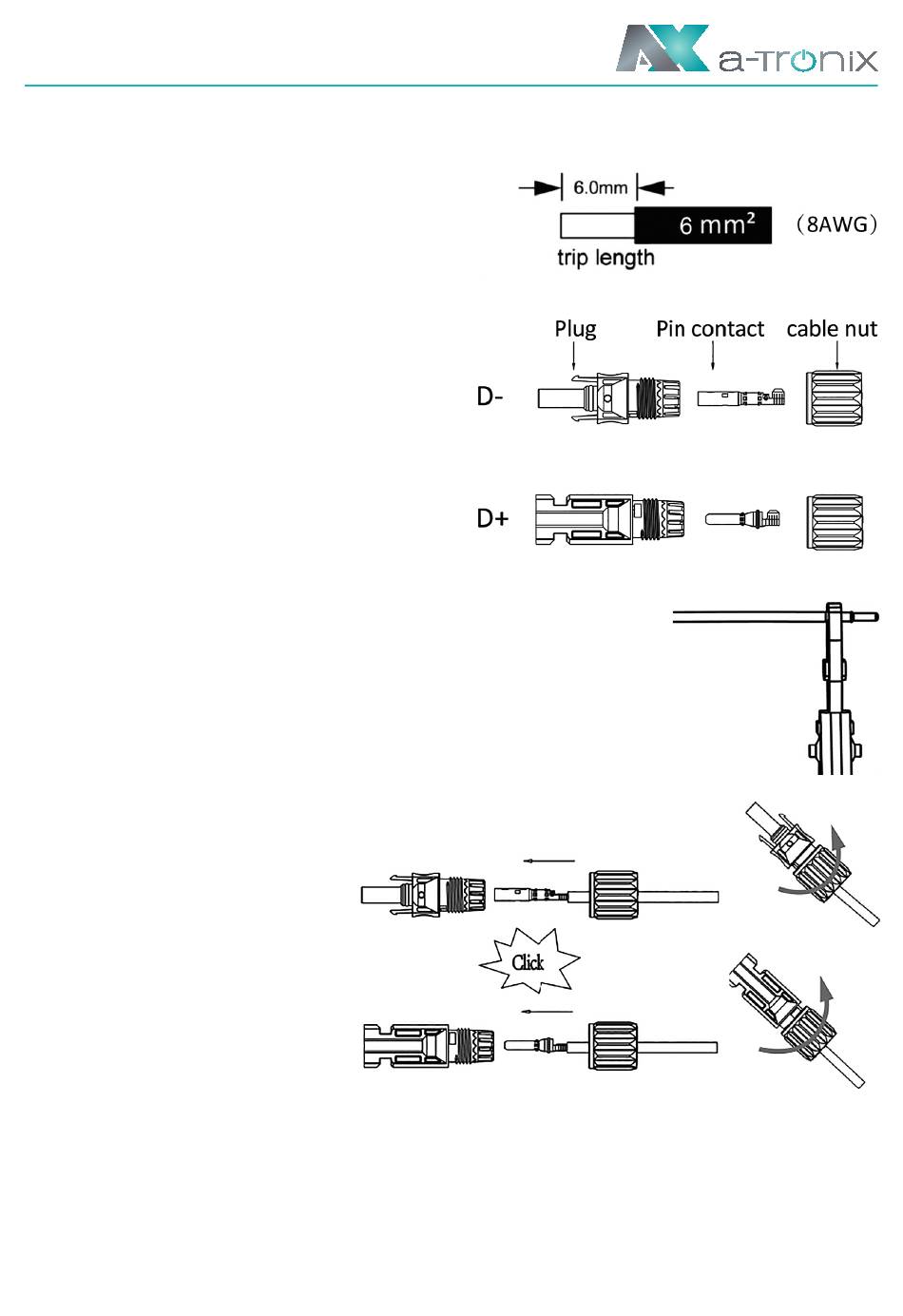

6.2 Battery Connection

• Turn off the DC switch.
• Choose 8 AWG wire to connect the battery.
• Trim 6mm of insulation from the wire end.
• Separate the DC connector (battery) as below.
• Insert striped cable into pin contact and ensure
all conductor strands are captured in the pin contact.
• Crimp pin contact by using a crimping plier.
Put the pin contact with striped cable into the corresponding
crimping pliers and crimp the contact.
• Insert pin contact through
the cable nut to assemble
into back of the male or
female plug.
When you feel or hear a „click"
the pin contact assembly
is seated correctly.
• Unlock the DC connector
- Use the specified wrench tool.
- When separating the DC + connector, push the tool down from the top.
- When separating the DC - connector, push the tool down from the bottom.
- Separate the connectors by hand.
