a-TroniX Inverter AX-series, 3 ph
GRID Wiring

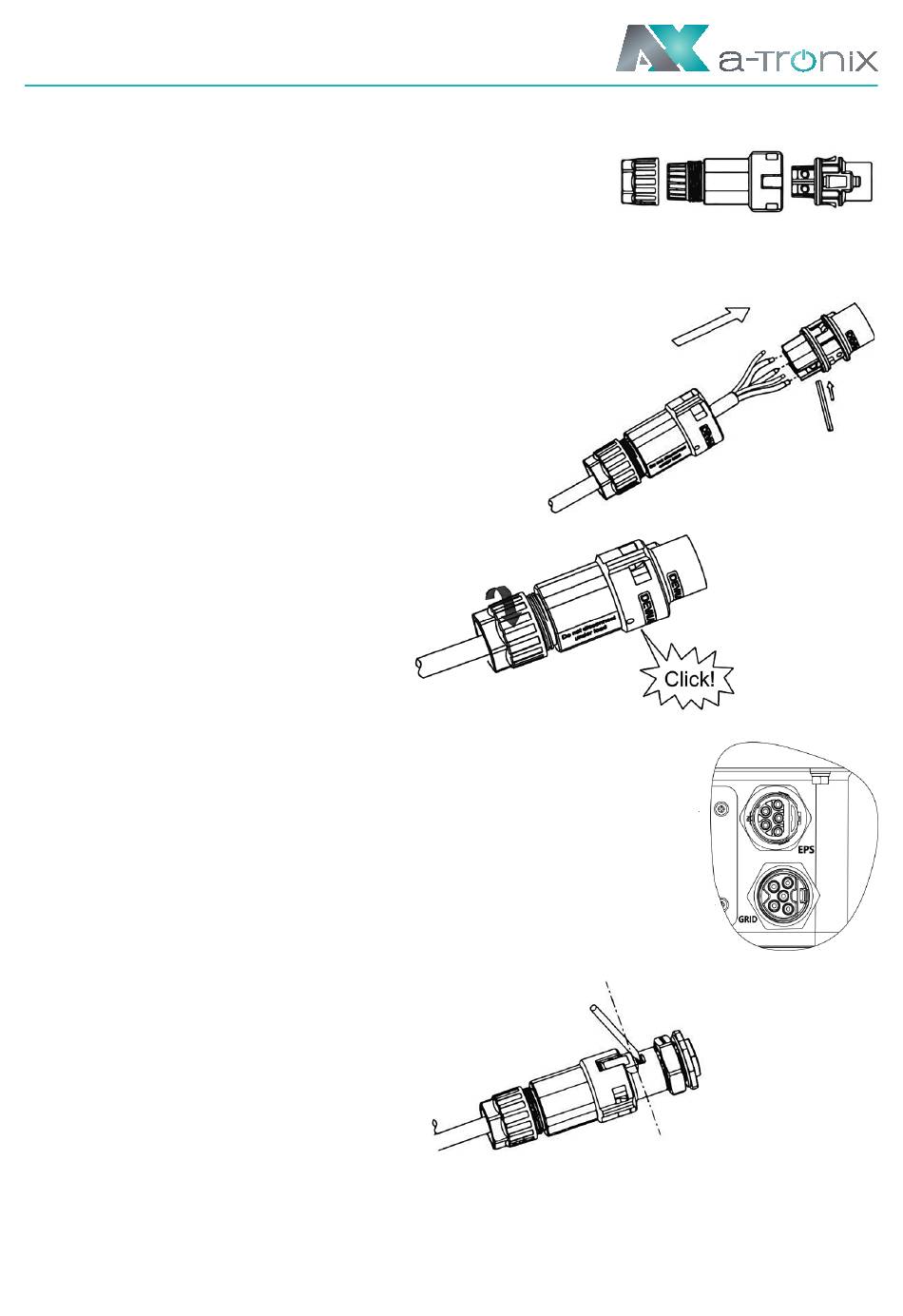

• Separate the ON-GRID plug into three parts as below.
- Hold middle part of the female insert, rotate the back
shell to loosen it, detach it from female inset.
- Remove the cable nut (with rubber insert) from the back shell.
• Slide the cable nut and then
Install the back shell onto the cable.
• Push the threaded sleeve into the socket,
tighten up the cap on the terminal.
• Push the threaded sleeve to connection terminal until both
are locked tightly on the inverter.
• Remove the GRID connector:
Press the bayonet out of the slot with a small screwdriver
or the unlock tool and pull it out,
or unscrew the threaded sleeve, then pull it out.
