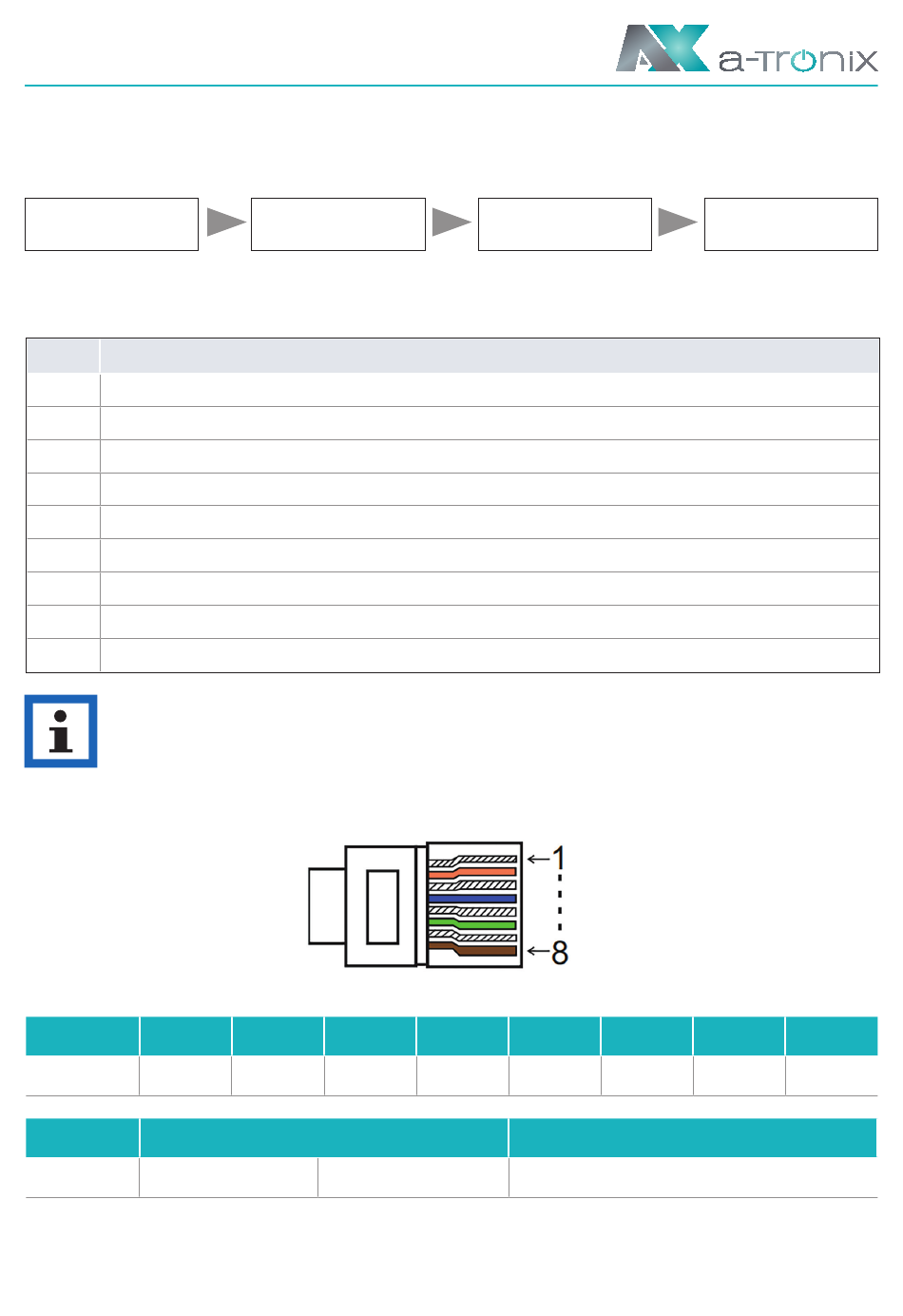

Atronix AX Series User Manual page 105

User Manual
a-TroniX Inverter AX-series, 3 ph
DRM
•
DRM0 setting
SETTINGS
DRM is provided to support several demand response modes by emitting control
signals as below.
Mode Requirement
DRM0 Operate the disconnection device.
DRM1 Do not consume power.
DRM2 Do not consume at more than 50% of rated power.
DRM3 Do not consume at more than 75% of rated power and source reactive power if capable.
DRM4 Increase power consumption (subject to constraints from other active DRMs).
DRM5 Do not generate power.
DRM6 Do not generate at more than 50% of rated power.
DRM7 Do not generate at more than 75% of rated power and sink reactive power if capable.
DRM8 Increase power generation (subject to constraints from other active DRMs).
NOTE
Currently only supports DRM0 function, other functions are under
development.
DRM PIN Definition
PIN
1
Definition DRM1
Model
Socket asserted by shorting pins
DRM0
atx002en0723
FEATURE PARM
2 3
DRM2 DRM3
5
DRM0
4 5
DRM4 +3.3V
6 Operate the disconnection device.
ENABLE / DISABLE
6 7
DRM0 GND
Function
8
GND
Page 105
